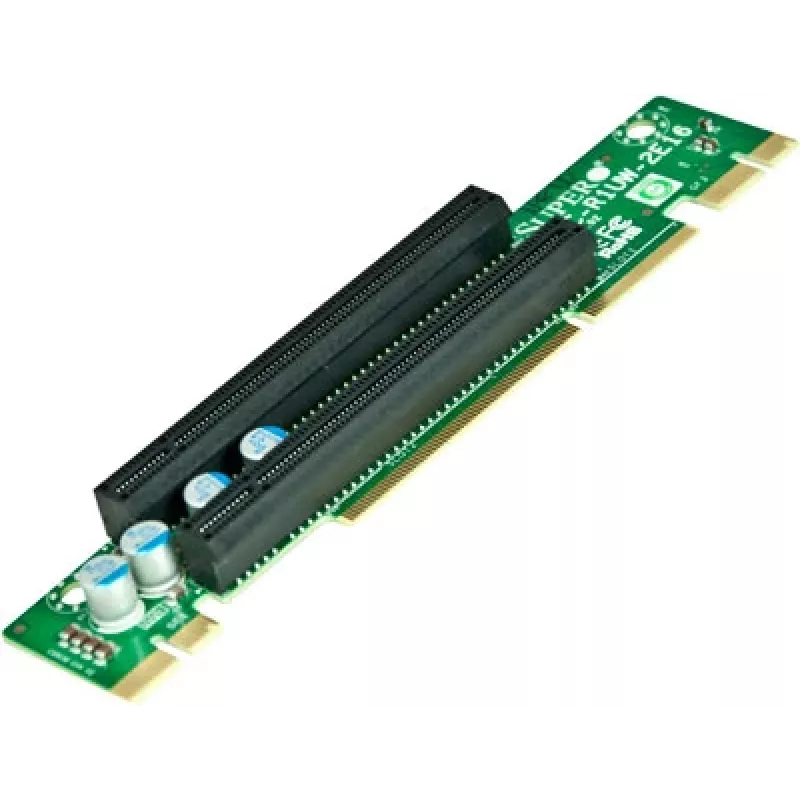

Placa de interface Supermicro RSC-R1UW-2E16

The Supermicro RSC-R1UW-2E16 is an internal riser/interface card for 1U servers that converts a WIO slot into two PCIe x16 I/O ports. Designed for compact rack systems, this passive riser provides additional PCI-E x16 connectivity for server expansion and peripheral installation while maintaining low profile and compatibility with 1U chassis.

Advantages

The card offers two full-length PCI-E x16 ports from a single WIO connection, enabling flexible add-on options without requiring a larger server form factor. As a passive internal interface, it requires no additional power or active cooling and maintains server reliability. Its compact 1U design preserves server density while expanding I/O capabilities.

Suitable for

• Adding PCIe x16 expansion cards in 1U rack servers
• High-throughput network adapters or NVMe/accelerator cards (where chassis and airflow permit)
• Server environments requiring additional I/O ports without changing form factor

Key specifications

• Model: Supermicro RSC-R1UW-2E16
• Manufacturer part number (MPN): RSC-R1UW-2E16
• EAN: 0672042093311
• Form factor: Internal riser for 1U servers
• I/O ports: 2 x PCI-E x16
• Slot type: WIO
• Output interface: PCIe
• Internal: Yes

How to use

Install the riser card into the server’s designated WIO slot according to the chassis and motherboard documentation. Secure the card and connect any required bracket or mounting hardware for the 1U chassis. Insert PCIe x16 cards into the provided slots, ensuring proper seating and alignment. Verify BIOS/firmware settings and operating system detection after installation.

Recommendations

Use this passive riser in compatible Supermicro 1U systems and confirm available clearance and airflow for full-length PCIe x16 cards; consult server documentation for supported configurations and thermal limits.
