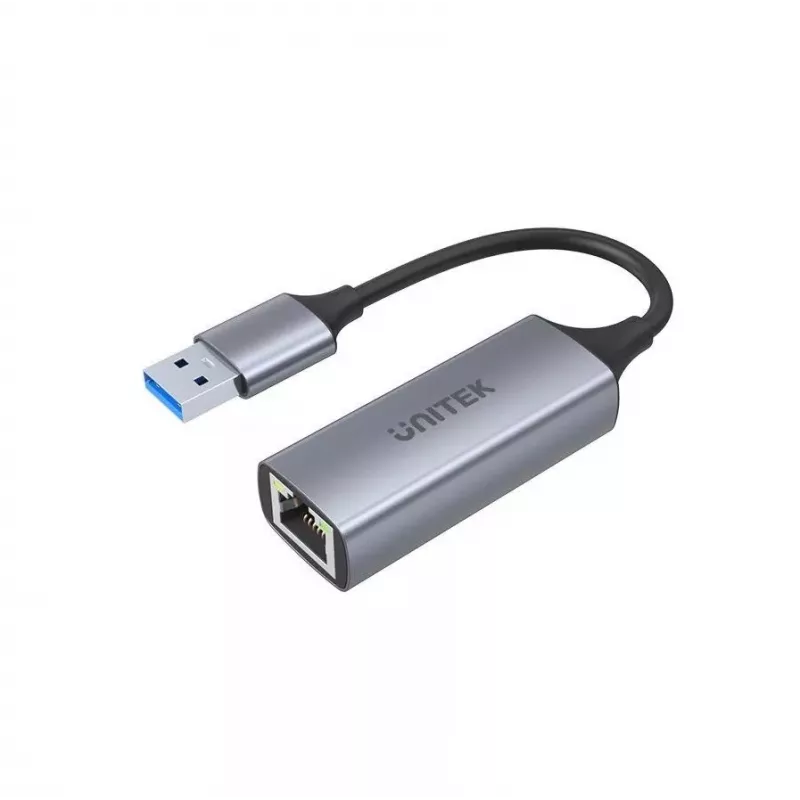

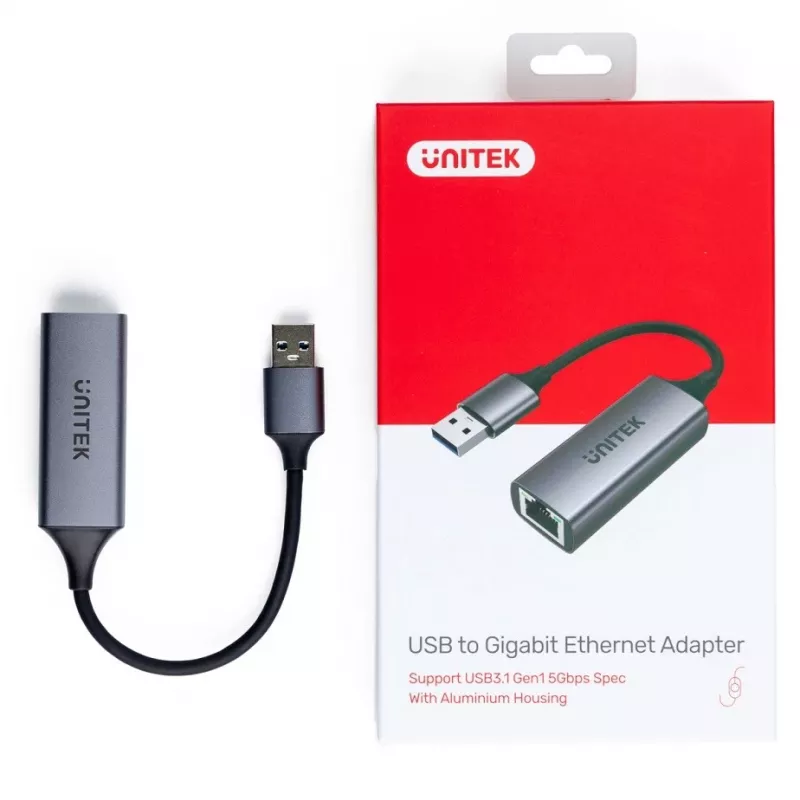

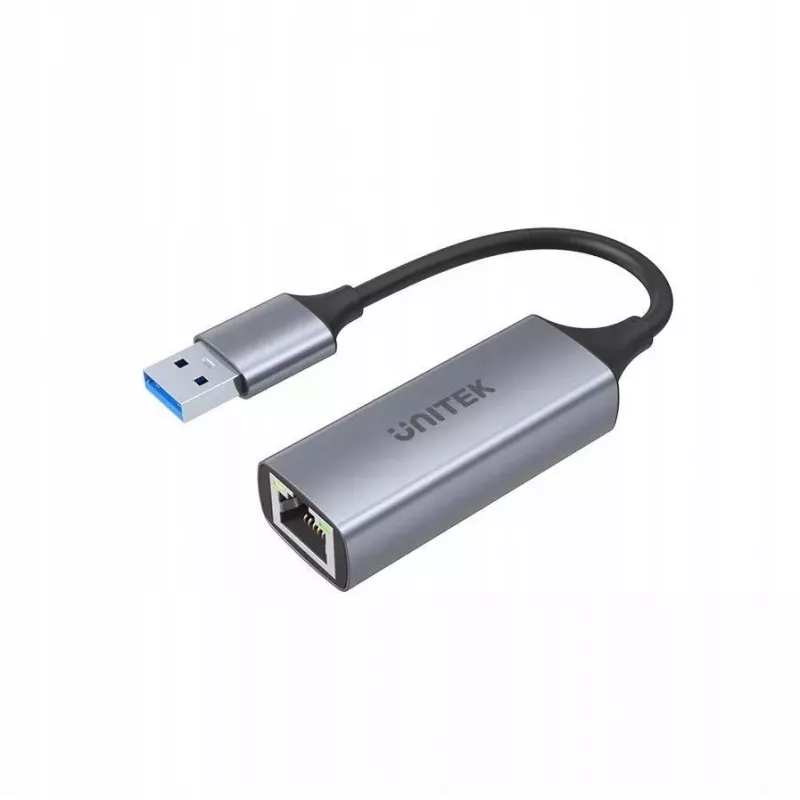

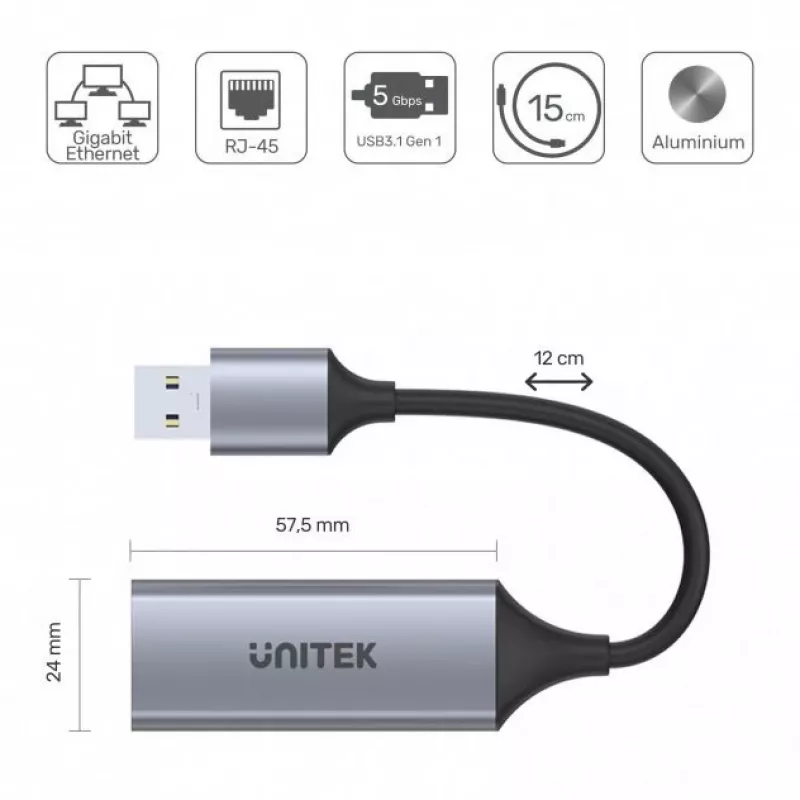

Placa de interface Unitek U1309A, cinzento, 57,5×24×16 mm

This USB adapter fully supports the IEEE 802.3 standard and provides compatible 10/100/1000 Mbps Ethernet connectivity. It supports both IPv4 and IPv6 networking protocols and includes features such as Checksum Offload Engine (COE), Wake-on-LAN, full and half-duplex modes, auto MDI/MDIX, and flow control for stable wired network performance.

Advantages

The adapter delivers gigabit speeds over USB for reliable wired connections, broad protocol compatibility with IPv4/IPv6, and energy-saving Wake-on-LAN support. Hardware offloading (COE) reduces CPU load during data transfers, while auto MDI/MDIX and flow control improve compatibility and stability with various network devices.

Key specifications

• Standard: IEEE 802.3
• Data rates: 10/100/1000 Mbps
• Protocol support: IPv4, IPv6
• Offload: COE (Checksum Offload Engine)
• Wake-on-LAN: supported
• Duplex: full and half-duplex
• Auto flip: auto MDI/MDIX
• Flow control: supported

How to use

Connect the adapter to an available USB port on your computer, attach an Ethernet cable between the adapter and your network switch or router, and allow the operating system to install drivers if required. After installation, configure network settings for IPv4 or IPv6 as needed and enable Wake-on-LAN in system or BIOS settings when required.

Recommendations

For optimal performance, use a quality Cat5e or Cat6 Ethernet cable and keep device drivers up to date. Enable flow control and COE where supported by the network to reduce packet loss and CPU usage.
