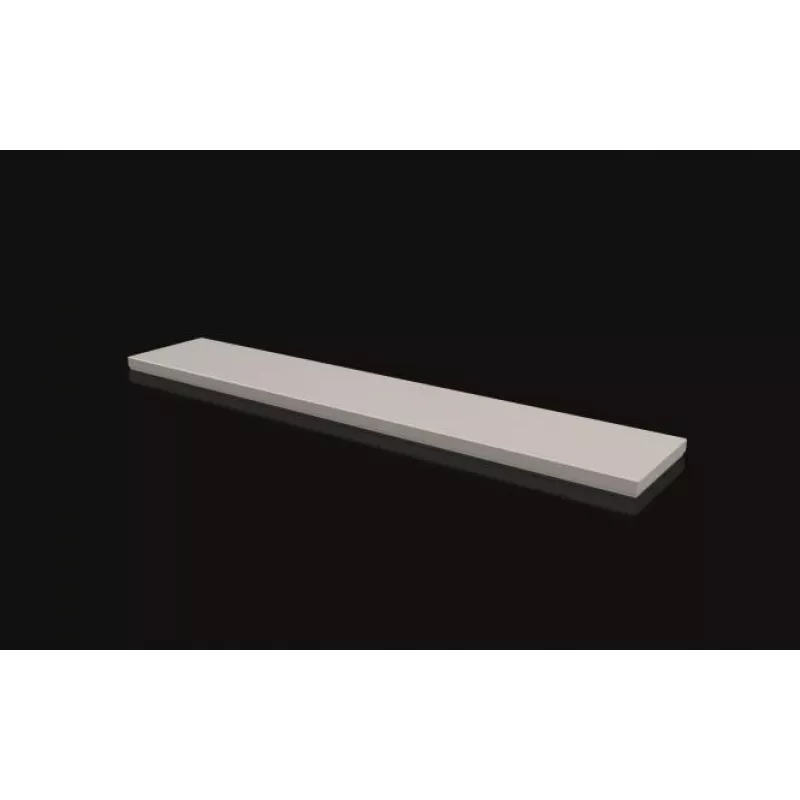

Placa de montagem Rittal CX 6730.830 aço cinzento – placa de montagem plana em aço para caixas

Rittal CX 6730.830 steel grey mounting plate is a flat steel panel designed for installation inside electrical and IT enclosures. The mounting plate provides a rigid, corrosion-resistant surface for fixing controllers, terminal blocks, DIN rails and other electrical components. Its steel construction ensures stable support for mounted equipment and helps organise cabling and component layouts within racks and cabinets.

Advantages

The steel construction offers high mechanical strength and reliable load-bearing capacity while the coated surface improves resistance to corrosion and wear. The flat design allows flexible placement and simple drilling or cutting for customised mounting patterns. Compatibility with common enclosure sizes makes integration straightforward and reduces installation time.

Suitable for

Key specifications

How to use

Place the mounting plate inside the enclosure at the required position and secure it to the enclosure frame using appropriate fasteners. Mark and prepare holes or cutouts for the specific components to be mounted, taking into account clearances and ventilation. Attach electrical and electronic components using screws, standoffs or DIN-rail adapters as required, and route cables to minimise stress on terminals and connectors.

Recommendations

Verify enclosure dimensions and choose appropriate fasteners to ensure a secure installation. Use corrosion-resistant screws and consider grounding the mounting plate if required by the installation. When modifying the plate, deburr edges and apply touch-up coating to exposed steel to maintain corrosion protection.
