Placa de montagem Rittal VX 8617.020

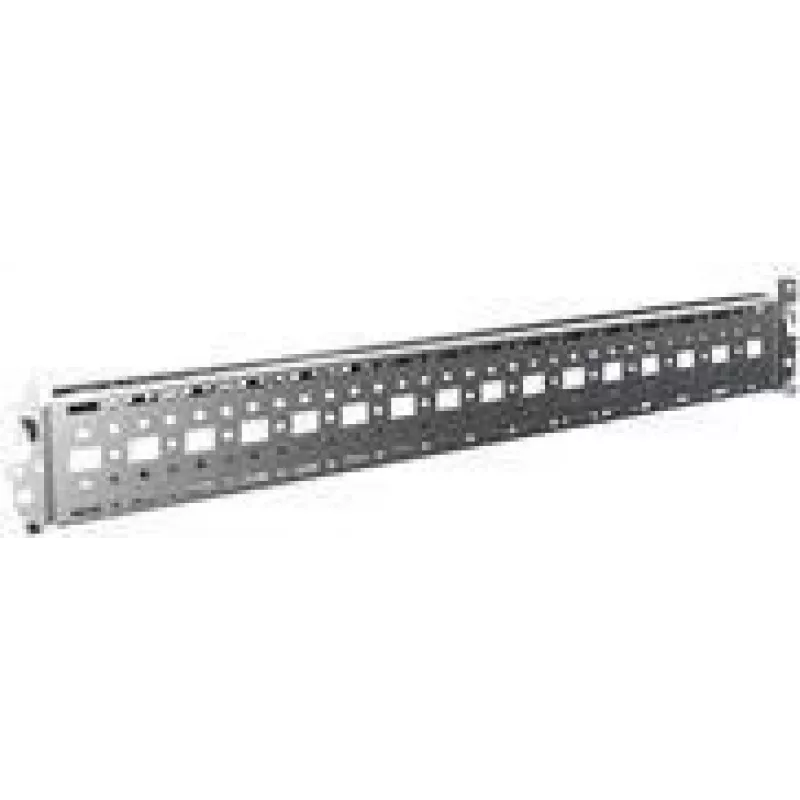

The Rittal VX 8617.020 mounting plate is a steel interior fitting designed for variable, individual installation of the enclosure frame on the outer mounting level. Finished in grey, this mounting plate provides a stable flat surface inside enclosures and cabinets, allowing secure attachment of components, cable ducts and auxiliary equipment. Supplied as a pack of four, the plates are suited to professional electrical, electronic and industrial control applications where durable internal mounting options are required.

Advantages

Manufactured from robust steel with a grey protective finish, the mounting plate offers mechanical strength and resistance to routine handling. Its flat design and standard width make it compatible with common enclosure layouts and allow flexible positioning on the outer mounting level. Sold in a pack of four, the plates enable consistent interior installation across multiple enclosures or for multi-panel setups, while a combined weight that reflects solid construction ensures stability once mounted.

Suitable for

Key specifications

How to use

Position the mounting plate on the enclosure's outer mounting level and secure it using compatible fasteners or mounting hardware according to the enclosure manufacturer's instructions. Ensure the plate is level and firmly attached before fitting electrical components or cable accessories. When installing multiple plates from the pack, align them consistently to maintain internal layout uniformity and to simplify wiring and service access.

Recommendations

For best results, verify compatibility with your specific enclosure model and use appropriate corrosion-resistant fasteners if the cabinet environment is humid or exposed. Plan component layout in advance to determine screw positions and cut-outs; for heavy or vibration-prone installations, use reinforced mounting points and check fastener torque during routine maintenance.
