Placa de montagem Rittal VX 8617.160

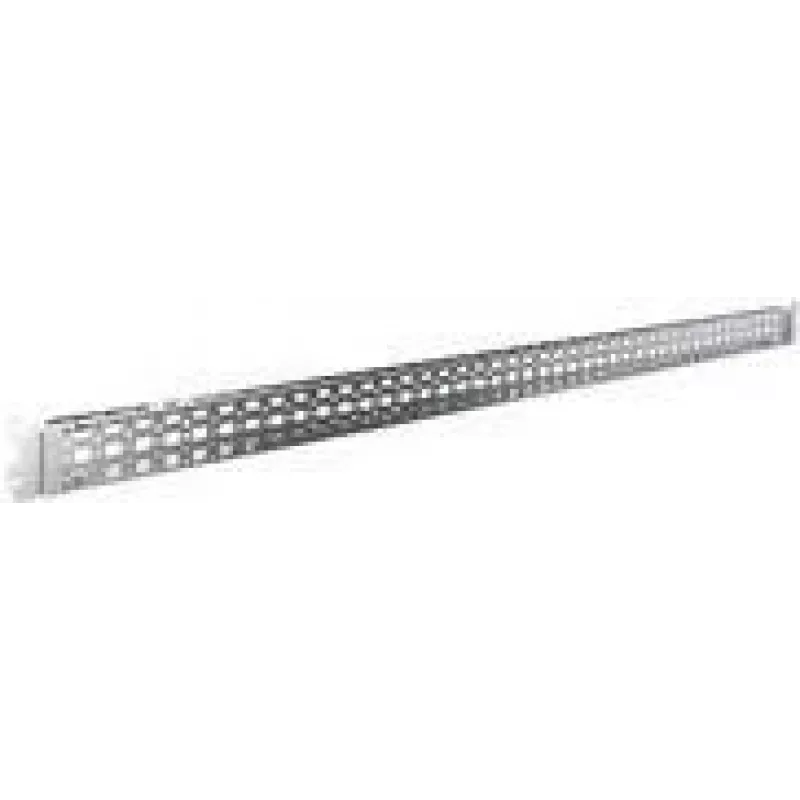

The Rittal VX 8617.160 mounting plate is a steel panel with a grey finish designed for installation inside enclosure frames at the inner mounting level. It measures 1200 mm in width and is supplied in a pack of four. The plate provides a stable surface for mounting and organizing electrical components in control cabinets and other enclosures.

Advantages

Made from durable steel with a protective grey finish, the mounting plate offers mechanical strength and resistance to common workshop conditions. Supplied as a set of four, it simplifies outfitting multiple enclosures or large cabinets. The design supports standardized mounting of electrical and control components, promoting orderly installation and easy maintenance.

Suitable for

Key specifications

How to use

Position the mounting plate on the inner mounting level of the enclosure frame and secure it using the appropriate fasteners for the enclosure system. After fixing the plate, attach electrical components and accessories according to their mounting instructions, keeping wiring and component placement compliant with applicable electrical standards and safety requirements.

Recommendations

Use compatible Rittal enclosure fasteners and ensure correct alignment on the inner mounting level. Verify that component weights and heat dissipation requirements are within the plate’s load-bearing capacity and the enclosure’s specifications before final assembly.
