Placa de rede Fujitsu S26361-F4610-L522 Interna Ethernet 1000 Mbit/s

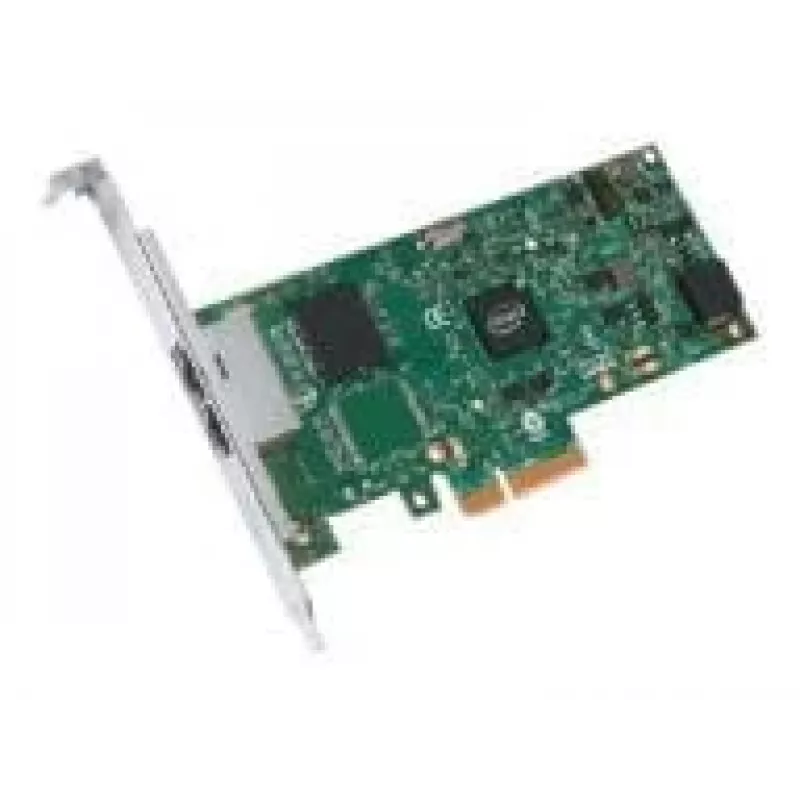

The Fujitsu S26361-F4610-L522 is an internal Ethernet network card based on the Intel I350-T2 controller, providing two Gigabit Ethernet ports (10/100/1000Base-T) over a PCI Express host interface. The card supports wired connectivity with a maximum data transfer rate of 1000 Mbit/s and implements a range of IEEE networking standards for reliable, high-speed connections in desktop or server systems.

Advantages

This network card offers dual 1 Gbit Ethernet ports and is built on Intel I350 chip technology to ensure stable throughput and compatibility with common networking environments. It provides virtualization features including Virtual Machine Device Queues (VMDq) and Single Root I/O Virtualization (SR-IOV) for improved virtual machine performance, as well as Wake-on-LAN with selectable port. The PCI Express interface ensures low-latency connectivity and straightforward installation into compatible systems.

Suitable for

• Desktop PCs requiring dual Gigabit Ethernet ports
• Small office and home office networks needing reliable wired connections
• Server or virtualization hosts using VMDq or SR-IOV features
• Systems that support Wake-on-LAN and standard PCIe network cards

Key specifications

• Model: Fujitsu S26361-F4610-L522
• Controller: Intel I350-T2 (2× 1 Gbit ports)
• Interface: PCI Express
• Maximum data transfer rate: 1000 Mbit/s
• Connectivity: Wired Ethernet (10/100/1000Base-T)
• Supported standards: IEEE 802.3i, 802.3u, 802.3ab, 802.3z, 802.3az, 802.3ad, 802.1Q, 802.1as
• Features: VMDq, SR-IOV (requires BIOS/OS support), Wake-on-LAN with selectable port

How to use

Install the Fujitsu S26361-F4610-L522 into an available PCI Express slot on a compatible motherboard. Secure the card in the chassis and connect Ethernet cables to the RJ-45 ports. Power on the system and ensure the operating system or drivers recognize the Intel I350 controller; install vendor or Intel drivers if necessary. Configure network settings in the OS or hypervisor to assign IP addresses, enable Wake-on-LAN, and activate virtualization offloads such as VMDq or SR-IOV when supported by the BIOS and operating system.

Recommendations

The card is intended for systems that support PCI Express and, for SR-IOV functionality, require corresponding BIOS and operating system support. For virtualization hosts, enable SR-IOV and VMDq in firmware and hypervisor settings only after confirming compatibility. Use high-quality Cat5e or Cat6 cables for optimal Gigabit performance.
