Placa de rede HP Enterprise HPE 10Gb 2x 560FLR-SFP+ interna PCIe fibra ótica 10000 Mbit/s

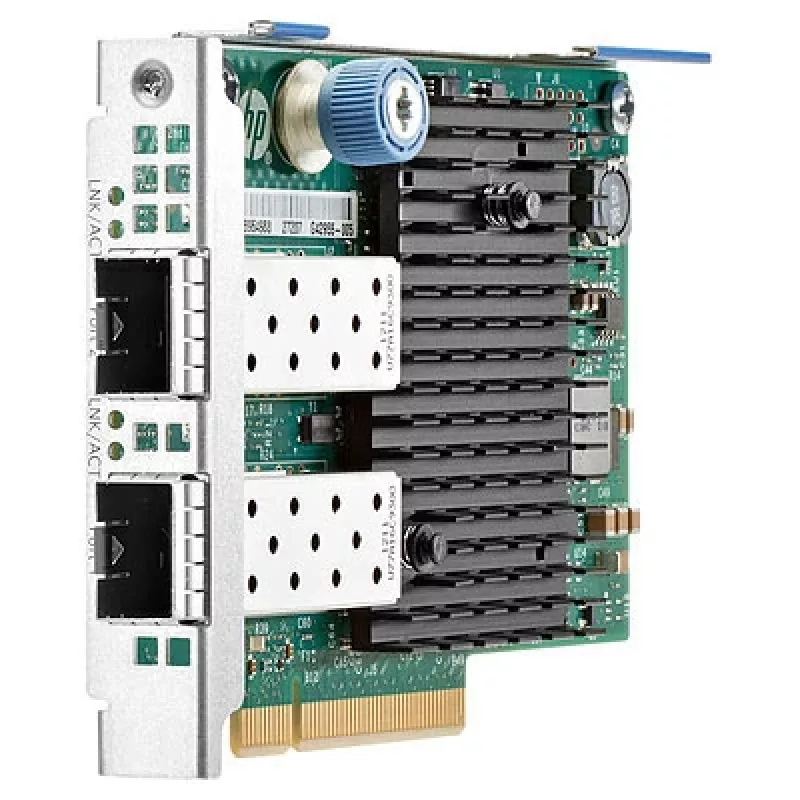

The HP Ethernet 10Gb 2-port 560 FLR-SFP+ FlexibleLOM adapter is a dual-port 10 Gigabit Ethernet PCIe Gen2 x8 lane network adapter based on the Intel 82599 controller. Designed for HP ProLiant Gen8 rack and scalable servers, the 560FLR-SFP+ provides 10 GbE connectivity for virtualization, storage and aggregation tasks and supports both Direct Attach Copper (DAC) cables and SR fiber optic SFP+ modules.

Advantages

The adapter offers up to 20 Gbps full-duplex per port (40 Gbps aggregate) through SFP+ cages, low power consumption and a compact FlexibleLOM form factor for HP ProLiant Gen8 servers. It supports advanced networking features including VLAN tagging, low-latency interrupts, TCP/UDP checksum offload, MSI-X, NIC teaming, Receive Side Scaling (RSS), Wake-on-LAN, jumbo frames, PXE boot and is SR-IOV ready for virtualization environments.

Suitable for

• 10 Gigabit uplinks for rack and enterprise servers
• Virtualized server hosts and hypervisor networks
• High-throughput storage and aggregation links
• Low-latency applications and network offload use cases

Key specifications

• Interface: SFP+ (fiber / Direct Attach Copper)
• Host interface: PCI Express Gen2 x8
• Controller: Intel 82599
• Data rate: 10 Gbit/s per port (20 Gbit/s full-duplex per port, 40 Gbit/s aggregate)
• Form factor: FlexibleLOM for HP ProLiant Gen8 servers
• Features: VLAN tagging, RSS, MSI-X, NIC teaming, SR-IOV ready, jumbo frames, PXE, WOL

How to use

Install the adapter in a compatible HP ProLiant Gen8 server FlexibleLOM slot or an appropriate PCIe x8 slot per the server maintenance guide. Insert SFP+ SR fiber modules or connect Direct Attach Copper cables to the SFP+ cages, then boot the server and install the appropriate HP/HPE network drivers and firmware. Configure network settings in the operating system or hypervisor, enabling features such as teaming, RSS or SR-IOV as required by your deployment.

Recommendations

Use certified HP/HPE SFP+ modules or approved DAC cables and keep firmware/drivers up to date. For virtualization and high-throughput workloads enable SR-IOV and RSS, and monitor link statistics to ensure expected performance.
