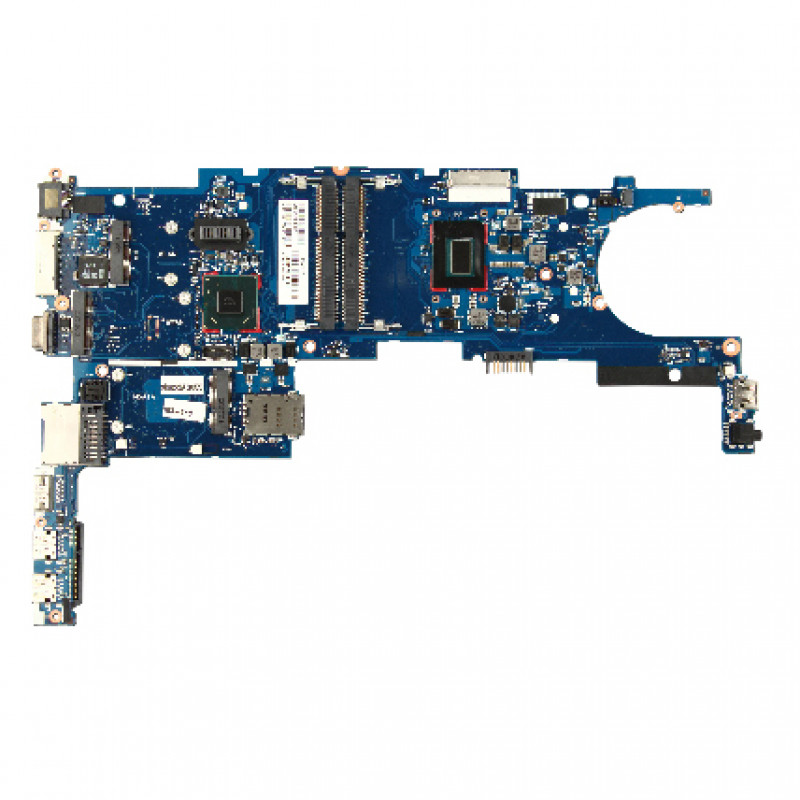

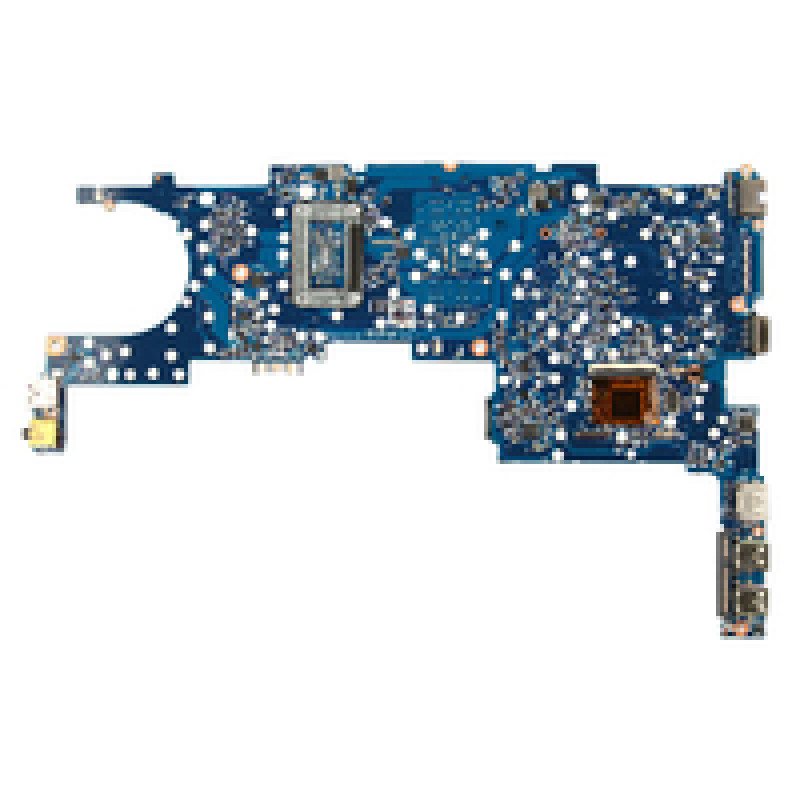

Placa de sistema HP - Placa principal - HP - EliteBook Folio 9470m

When an EliteBook Folio 9470m fails to power on, shows no display, or suffers from intermittent hardware faults, the culprit is often the system board. This genuine HP system board (part number 702847-601) restores full functionality to the ultrabook, eliminating the need for costly motherboard-level repairs or a complete laptop replacement. It is the exact board used in the original configuration, ensuring perfect fit and compatibility.

Who is it for

IT administrators, repair technicians, and advanced users who need to bring an HP EliteBook Folio 9470m back to life. It is ideal for refurbishers and businesses that maintain fleets of these business ultrabooks and require a reliable, original-grade replacement part.

Main features

• Genuine HP system board for EliteBook Folio 9470m
• Supports 3rd generation Intel Core i5/i7 processors (Ivy Bridge)
• Intel QM77 Express chipset for stable business performance
• Two DDR3L SODIMM slots, up to 16 GB RAM
• Integrated Intel HD Graphics 4000
• Multiple storage interfaces: mSATA and SATA
• Full-size and half-size Mini PCIe slots for WLAN/WWAN
• On-board headers for USB 3.0, DisplayPort, VGA, Gigabit Ethernet, and audio
• HP UEFI BIOS for secure boot and manageability

Specifications

• Product type: Laptop system board / motherboard
• Compatibility: HP EliteBook Folio 9470m Notebook PC
• CPU socket type: BGA1023 (CPU soldered)
• Supported processors: Intel Core i5 / i7 3rd generation (Ivy Bridge)
• Chipset: Intel QM77 Express
• Memory slots: 2 x DDR3L SODIMM
• Maximum RAM: 16 GB DDR3L-1600 MHz
• Integrated graphics: Intel HD Graphics 4000 (processor dependent)
• Storage interfaces: 1 x mSATA, 1 x SATA
• Expansion slots: 1 x full-size Mini PCIe (WLAN), 1 x half-size Mini PCIe (WWAN/mSATA)
• On-board connectors: USB 3.0, DisplayPort, VGA, RJ-45, audio combo jack
• Network: Integrated Gigabit Ethernet
• Audio: Integrated HD Audio
• Form factor: Proprietary laptop form factor
• BIOS: HP UEFI BIOS
• Power connector: Proprietary DC-in
• Condition: New / refurbished (varies by seller)

Tips

Before installation, ensure the replacement board matches your specific processor and graphics configuration. Handle the board by its edges to avoid electrostatic discharge, and update the BIOS to the latest version after installation for optimal performance and security.
