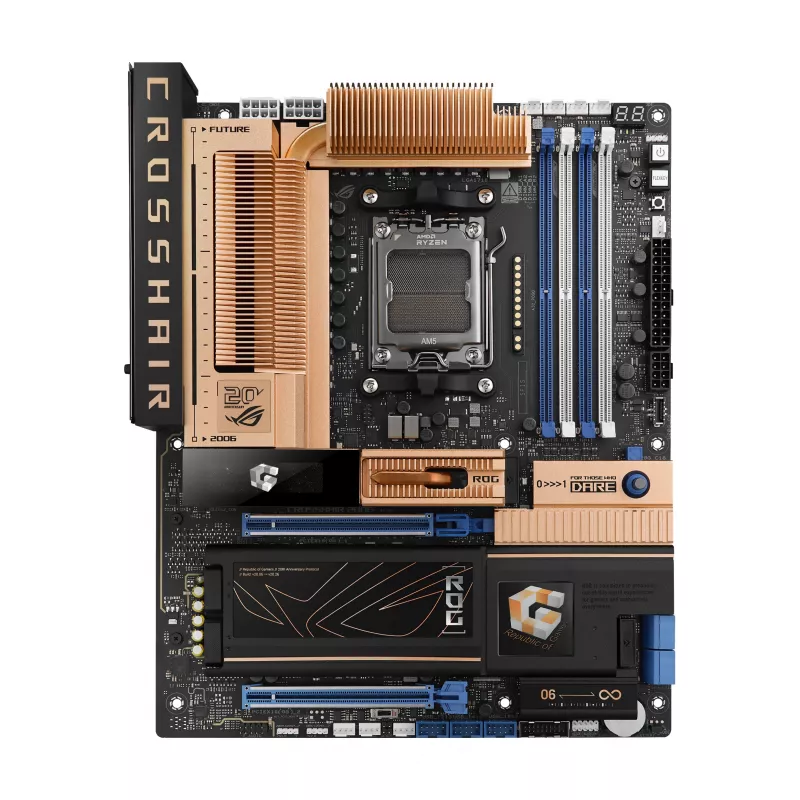

ASUS ROG CROSSHAIR 2006 X870E WIFI7 Motherboard ATX, AM5, preto/bronze

The ASUS ROG CROSSHAIR 2006 is an ATX motherboard for AMD Ryzen 7000, 8000, and 9000 series processors with the AM5 socket. It is built on the AMD X870E chipset and supports DDR5 memory across four DIMM slots, with a maximum capacity of 256 GB.

Key features

• AMD X870E chipset
• Socket AM5, compatible with AMD Ryzen 7000, 8000, and 9000 series processors
• 4x DDR5 DIMM slots, maximum 256 GB, dual-channel, unbuffered, ECC and non-ECC
• Supports HDD and SSD, M.2 and SATA III interfaces, RAID 0, 1, 5, 10
• Wi-Fi 7 (802.11be) and Bluetooth 5.4
• 5 Gigabit Ethernet and 10 Gigabit Ethernet
• Realtek ALC4082 audio, 7.1 channels
• UEFI AMI BIOS, 512 Mbit
• Windows 11 support

Specifications

• Brand: ASUS
• MPN: 90MB1PP0-M0EAY0
• Product colour: Black, Gold
• Motherboard form factor: ATX
• Component for: PC
• Power source: ATX
• Dimensions: 305 mm (W) x 244 mm (D) x 50 mm (H)
• Weight: 2.51 kg
• Expansion slots: 2x PCIe 5.0 x16, 2x PCIe 4.0 x16, 1x PCIe 3.0 x1
• M.2 slots: 5 (1x 22110 PCIe 5.0, 1x 2280 PCIe 5.0, 2x 2280 PCIe 4.0, 1x 2230 PCIe 4.0)
• Internal I/O: 3x USB 2.0 headers, 2x USB 3.2 Gen 1 headers, 2x USB 3.2 Gen 2x2 headers, 4x SATA III ports, front panel audio header, front panel header, 24-pin ATX power connector, CPU fan header, 4x chassis fan headers, 8-pin EPS power connector, 12V power connector, 1x temperature sensor header, 3x RGB LED headers
• Rear I/O: 6x USB 3.2 Gen 2 Type-A, 3x USB 3.2 Gen 2 Type-C, 2x USB4 Gen 3x2, 2x RJ-45, 1x HDMI, S/PDIF out, 1x Wi-Fi antenna connector
• Included: SATA cables, antenna, screws
