Conceptronic Sound Placa PCIe 7.1CH S/PDIF até - PCI - 24 Bit

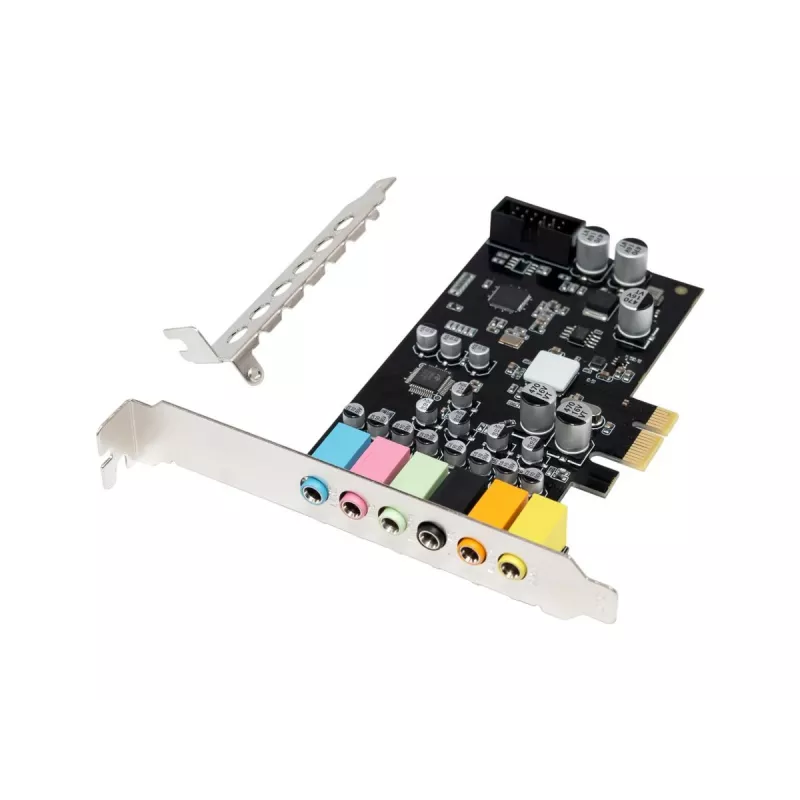

The Conceptronic EMRICK15B is a high-definition Sound PCIe card designed to upgrade a desktop PC with 7.1-channel surround sound. It uses a PCI-Express interface and supports audio quality up to 24-bit / 192 kHz, with an integrated S/PDIF digital output for connecting to external audio systems, amplifiers or home cinema setups.

Key features

• 7.1-channel surround sound
• PCI-Express interface (PCI-E x1)
• 24-bit audio quality
• Maximum sampling rate: 192 kHz
• Integrated S/PDIF digital output
• CM6212 chipset
• ASIO driver support for low-latency audio processing
• Line-out signal-to-noise ratio (SNR): 97 dB
• Line-in
• Microphone input
• Headphone connection: 3.5 mm
• Supports Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10...

Specifications

• Brand: Conceptronic
• MPN: EMRICK15B
• Audio channels: 7.1 channels
• Audio quality: 24 Bit
• Line-Out SNR: 97 dB
• Host interface: PCI-E x1
• Headphone connection: 3.5 mm
• Maximum sampling rate: 192 kHz
• Width: 110 mm
• Depth: 69 mm
• Height: 30 mm
