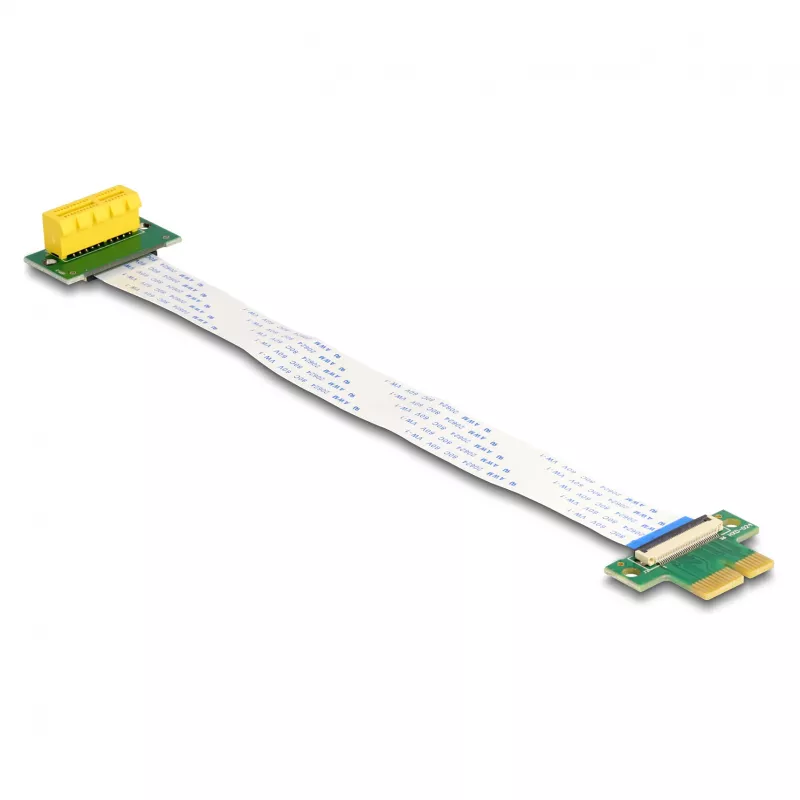

Placa riser DeLOCK PCI Express x1 ficha para x1 slot 90° angular com cabo FPC 15 cm

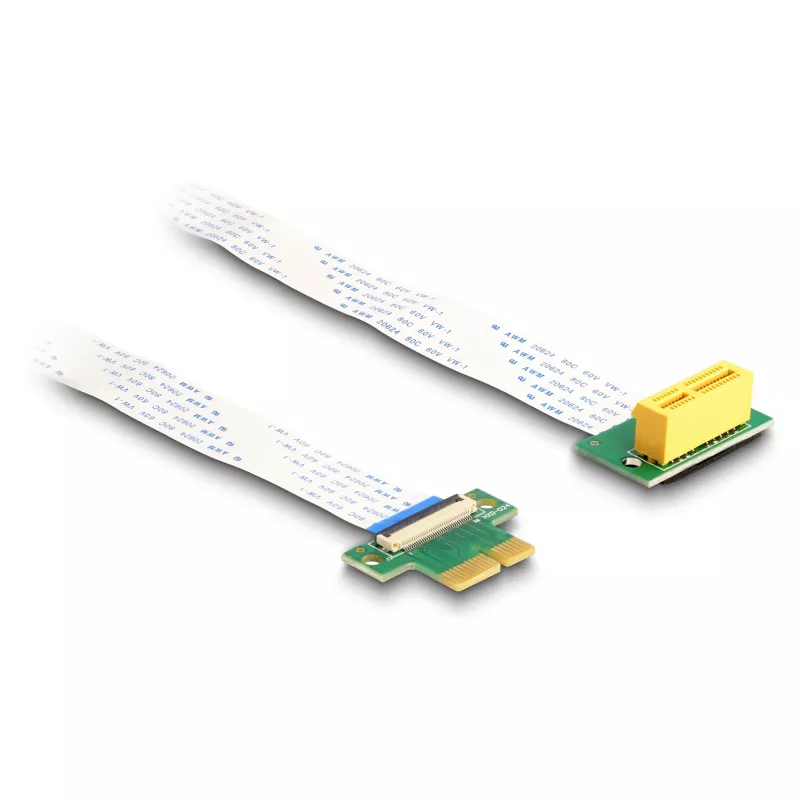

This DeLOCK PCI Express riser card connects a PCI Express x1 card to a motherboard via a 15 cm FPC (Flexible Printed Circuit) cable and features a 90° angled male connector for space-saving installation inside a computer case. The riser is supplied in box packaging, is CE compliant and manufactured in Taiwan. The product colour is white.

Advantages

The FPC cable uses a flexible printed circuit instead of conventional stranded wires, providing high flexibility and a slim profile while maintaining robustness. The 90° angled x1 male connector simplifies mounting in compact chassis and allows installation of PCIe x1 cards where vertical clearance is limited.

Suitable for

Key specifications

How to use

Power down the computer and disconnect it from mains. Insert the riser card's PCIe x1 male connector into the corresponding motherboard slot at the intended location, ensuring the 90° orientation matches the available space. Secure any screws or retention mechanisms if present. Plug the PCI Express x1 card into the riser slot. Reconnect power and boot the system; the operating system should detect the installed card as usual.

Recommendations

Handle the FPC cable with care to avoid sharp bends or excessive twisting; route it to prevent pinching against chassis edges. Ensure the motherboard slot and riser connectors are free of dust before installation. Verify card compatibility with PCIe x1 interface and observe anti-static precautions when performing installation.
