Placa SATA e M.2 PCI Express DeLOCK 3 portas SATA e 2 slots M.2 Key B

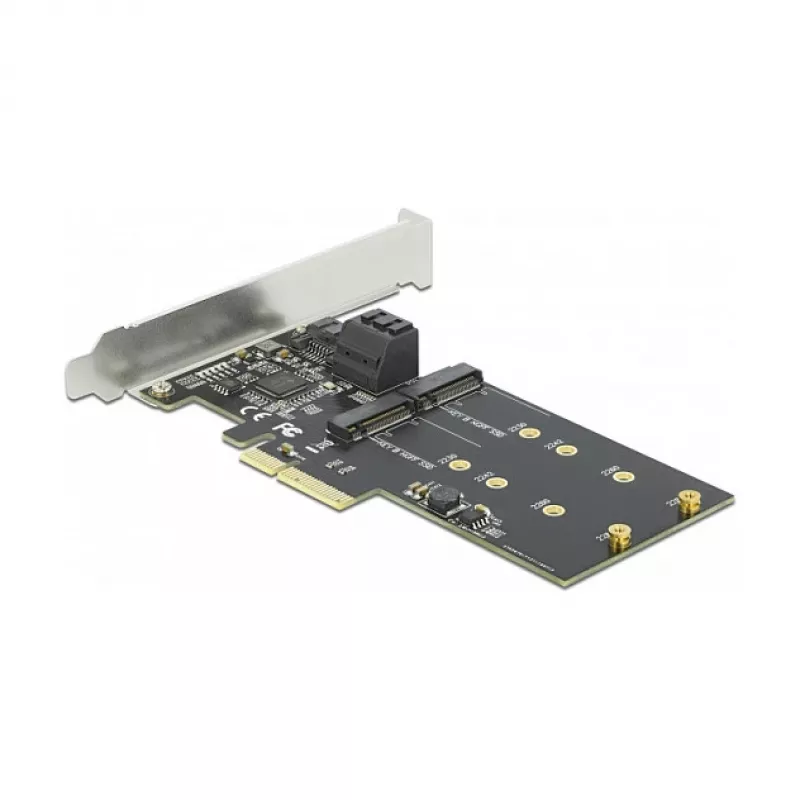

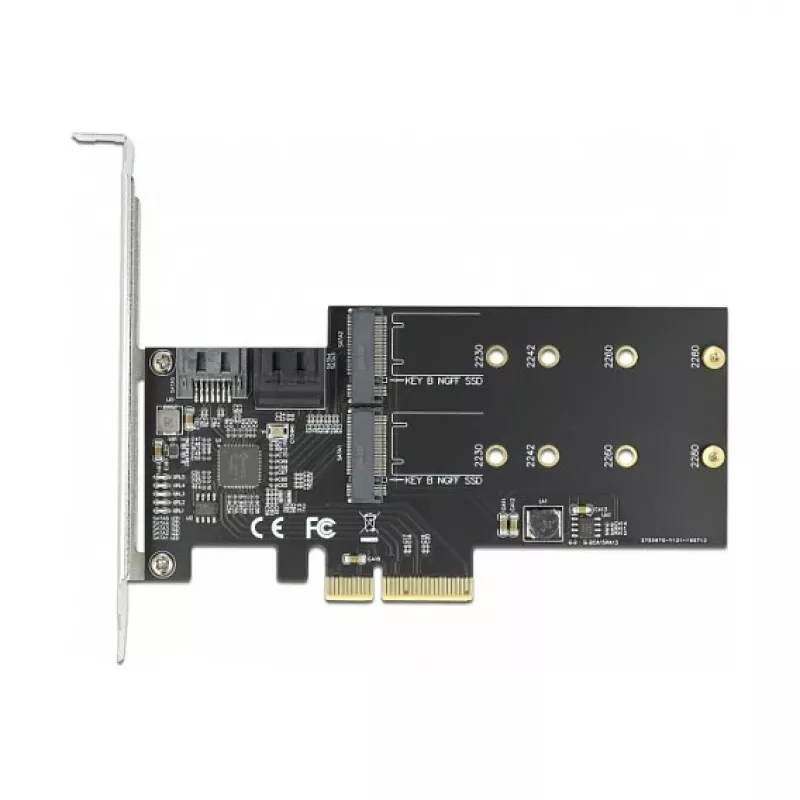

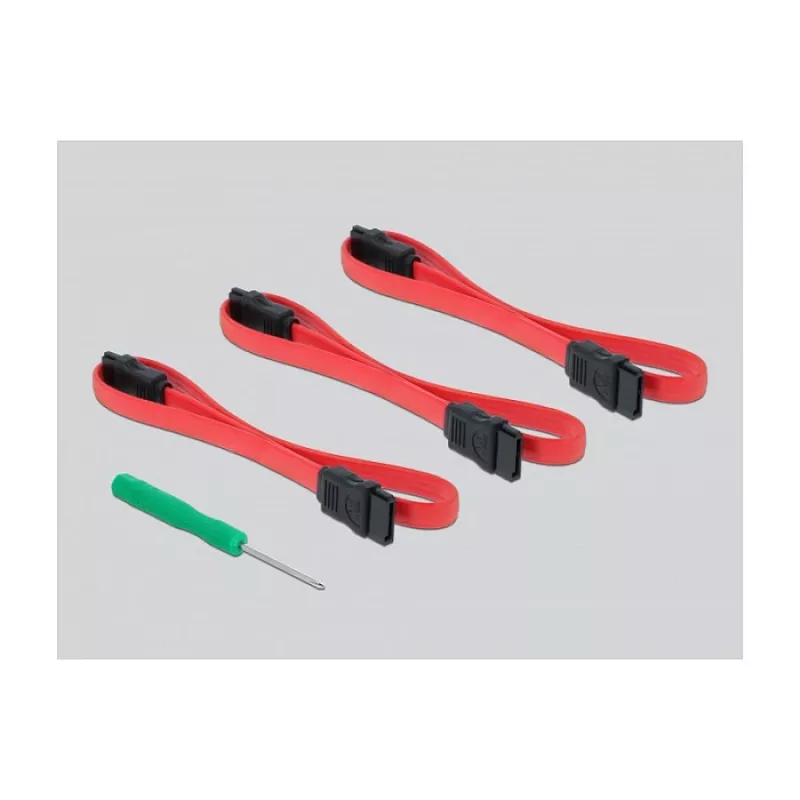

The DeLOCK SATA and M.2 PCI Express Card expands a desktop PC with three internal SATA ports and two M.2 Key B slots. The low-profile PCIe x4 card supports SATA devices such as HDDs, SSDs and optical drives and accepts two M.2 modules in 2280, 2260, 2242 or 2230 formats. Data transfer rates up to 6 Gbit/s are supported and the package includes SATA cables.

Advantages

This PCI Express card provides both SATA and M.2 connectivity in a single low-profile card, enabling flexible storage expansion in compact systems. It uses a PCIe x4 host interface for reliable bandwidth and supports standard SATA transfer rates up to 6 Gbit/s. Two M.2 slots accept multiple common module lengths (2280/2260/2242/2230) and the card ships with internal SATA cables for immediate installation.

Suitable for

Key specifications

How to use

Power down the PC and unplug it from the mains. Install the card into an available PCIe x4 (or larger) slot and secure it with the bracket screw. Connect internal SATA devices to the card's SATA ports using the included SATA cables. Insert M.2 modules into the M.2 Key B slots and fasten them according to their length using the appropriate standoffs. Reconnect power and boot the system; configure new drives in the operating system or BIOS as required.

Recommendations

Ensure the PC chassis has sufficient clearance for a low-profile bracket and verify motherboard BIOS supports add-on storage controllers. Use compatible M.2 Key B modules and follow anti-static precautions during installation.
