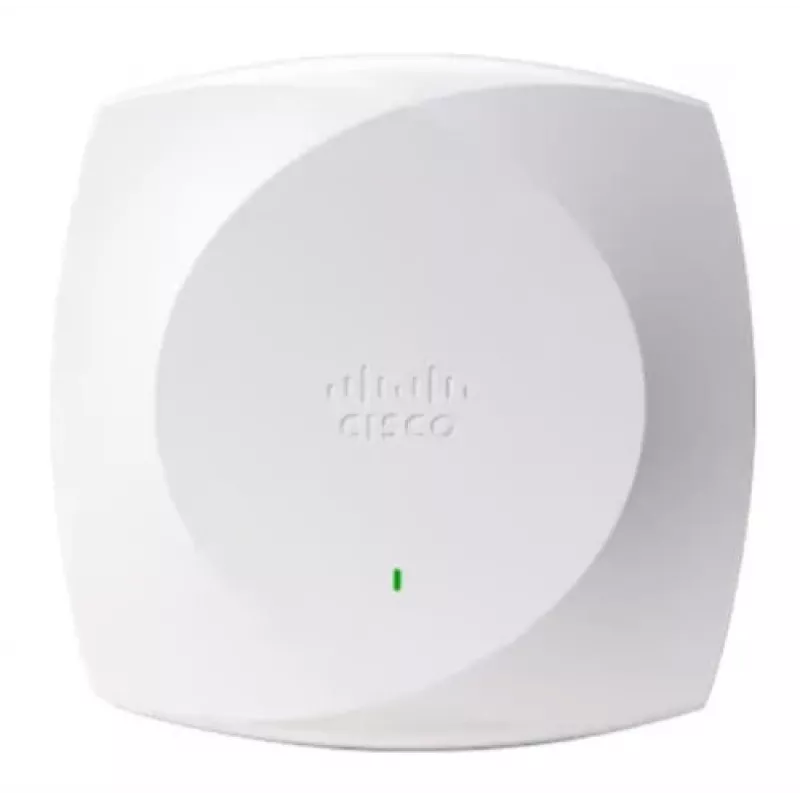

Ponto de acesso Cisco Wireless 9171I Wi-Fi 7 Tri-Band 4x4 MIMO 10 Gigabit Ethernet

The Cisco Wireless 9171I is a high-performance Wi-Fi 7 (802.11be) access point designed for demanding enterprise environments. With tri-band operation (2.4 GHz, 5 GHz, 6 GHz) and 4x4 MIMO on each band, it delivers aggregate data rates up to 18.43 Gbps, ensuring seamless connectivity for high-density deployments. Equipped with dual mGig Ethernet ports (10 GbE and 2.5 GbE) and support for PoE++ (802.3bt), this access point provides future-proof wired backhaul and flexible power options. Integrated BLE 5.1, Zigbee, and Thread enable IoT convergence, while advanced security features like WPA3 and 802.1X protect your network. Managed via Cisco DNA Center, Web UI, CLI, or SNMP, the CW9171I is ideal for next-generation wireless networks.

Advantages

Experience blazing-fast Wi-Fi 7 speeds with up to 18.43 Gbps aggregate throughput. Tri-band 4x4 MIMO ensures optimal performance across all bands. Dual mGig Ethernet ports (10 GbE and 2.5 GbE) provide high-speed wired connectivity and support for PoE++ (802.3bt) for simplified installation. Built-in IoT radios (BLE 5.1, Zigbee, Thread) enable smart building and asset tracking applications. Advanced security with WPA3 and 802.1X keeps your network safe. Manage easily with Cisco DNA Center or traditional interfaces.

Suitable for

• Enterprise offices and campuses requiring high-density Wi-Fi
• Educational institutions (universities, schools) with many concurrent users
• Healthcare facilities needing reliable, secure wireless for critical applications
• Hospitality venues (hotels, convention centers) offering premium guest Wi-Fi
• Retail and warehouse environments with IoT devices and high throughput needs

Key specifications

• Wireless Standard: Wi-Fi 7 (802.11be)
• Frequency Bands: Tri-band (2.4 GHz, 5 GHz, 6 GHz)
• Aggregate Data Rate: Up to 18.43 Gbps
• MIMO Configuration: 4x4 MIMO on each band
• Ethernet Ports: 1x 10 Gigabit Ethernet (mGig), 1x 2.5 Gigabit Ethernet (mGig)
• Power over Ethernet: 802.3bt (UPOE/PoE++), 802.3at (PoE+)
• Antenna Type: Internal
• Security: WPA3, 802.1X, AES, TKIP
• Management: Cisco DNA Center, Web UI, CLI, SNMP
• IoT Protocols: Bluetooth Low Energy (BLE) 5.1, Zigbee, Thread
• Processor: Quad-core CPU
• Memory: 8 GB DRAM, 8 GB Flash
• USB Port: 1x USB 2.0 Type A
• Console Port: 1x RJ-45
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Mounting: Ceiling/Wall Mountable

Recommendations

For optimal performance, pair the Cisco 9171I with a Cisco DNA Center subscription and use 802.3bt PoE++ switches to fully power the access point. Ensure your network infrastructure supports 10 GbE uplinks to leverage the full throughput. Ideal for environments transitioning to Wi-Fi 7 or requiring high capacity for IoT and mobile devices.
