Ponto de acesso sem fios HUAWEI eKit AP263 2,4 GHz 5 GHz Wi-Fi 6

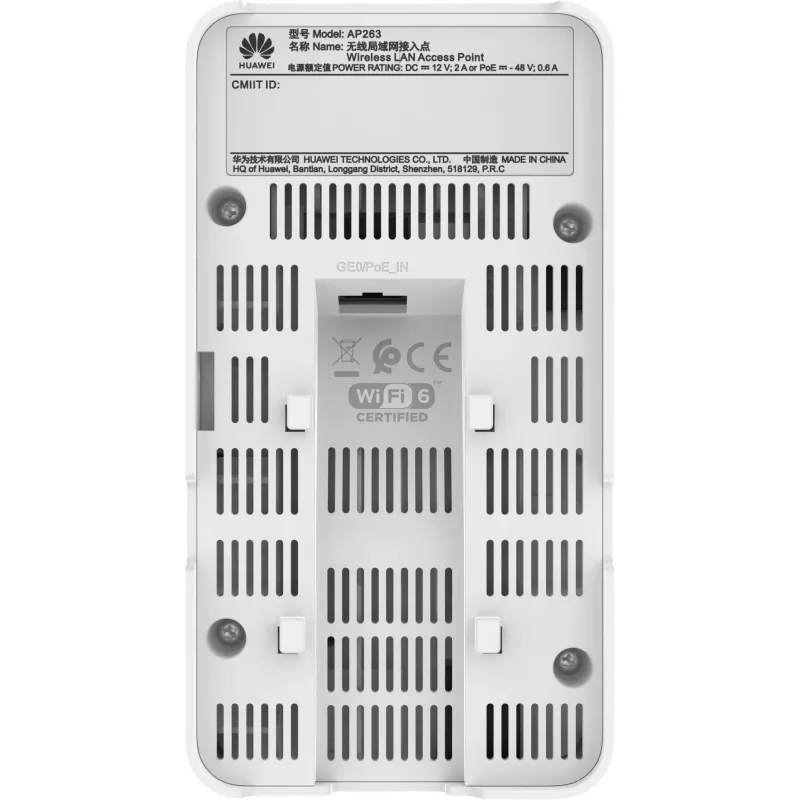

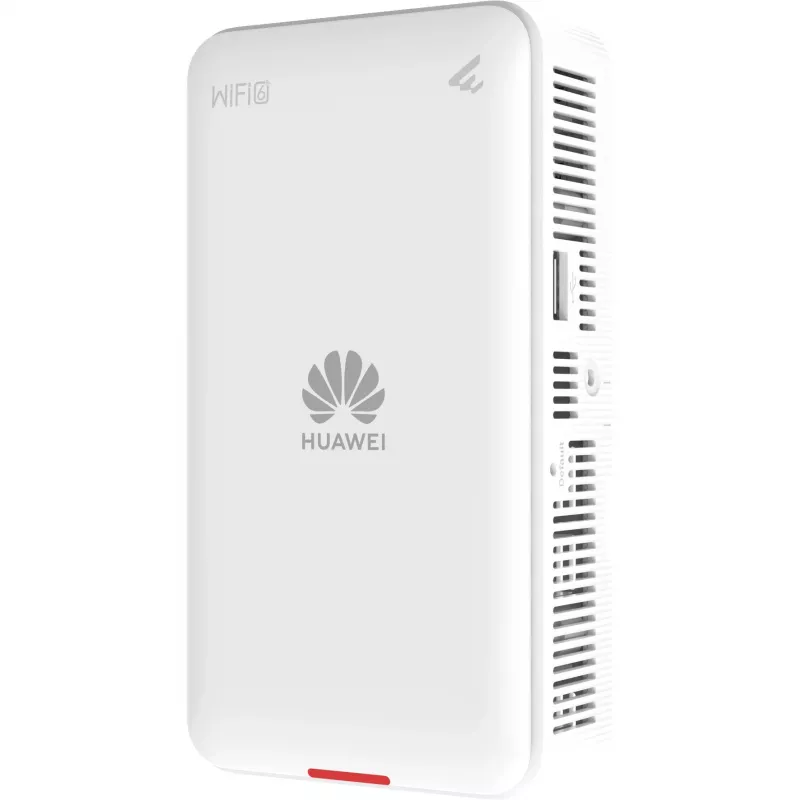

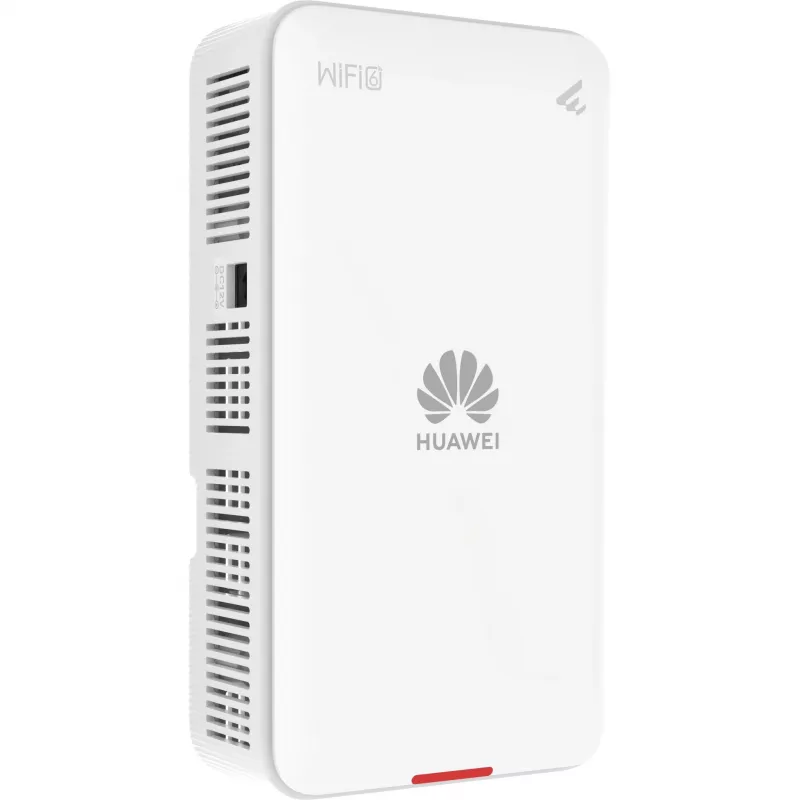

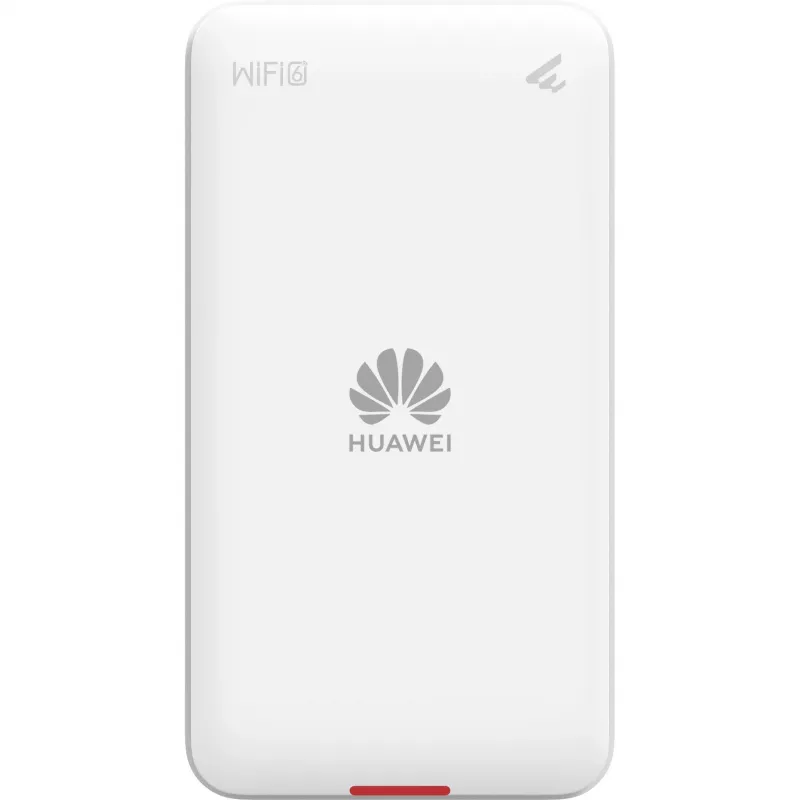

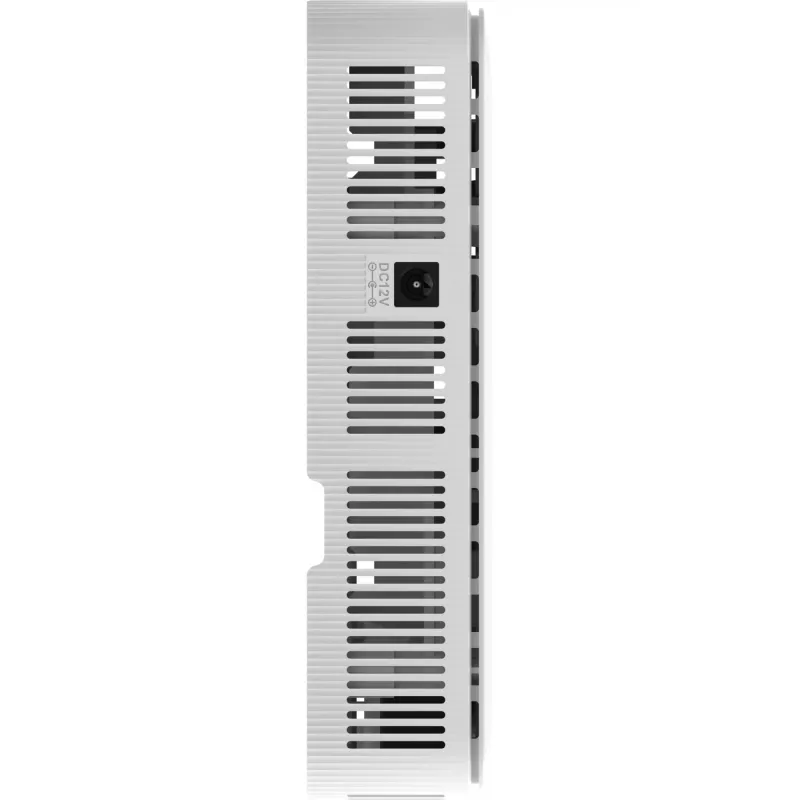

The HUAWEI eKit AP263 is a wall plate wireless access point that supports Wi‑Fi 6 (802.11ax) on both 2.4 GHz and 5 GHz bands with 2x2 MIMO, delivering a combined device rate up to 2,975 Mbps. Its compact form factor and dual‑band capability provide high bandwidth and support for many concurrent users, making it suitable for indoor coverage in small and medium enterprise offices, hospitals, and higher‑education buildings.

Advantages

The AP263 offers dual‑band Wi‑Fi 6 performance with a peak throughput of 2,975 Mbit/s, integrated Ethernet (two RJ‑45 ports supporting 10/100/1000 Mbps), and broad compatibility with IEEE 802.11a/b/g/n/ac/ax standards. Security protocols include WEP, WPA, WPA2 and WPA3. The device’s compact wall‑plate design enables flexible deployment and helps reduce installation footprint and customer investment. Rated maximum power consumption is 12 W and the unit weighs approximately 0.32 kg.

Suitable for

• Small and medium enterprise office areas
• Hospital rooms and corridors
• Lecture halls and classrooms in higher education
• Any indoor environment needing discreet wall‑mounted Wi‑Fi 6 coverage

Key specifications

• Wireless standard: IEEE 802.11a/b/g/n/ac/ax (Wi‑Fi 6)
• Frequency bands: 2.4 GHz and 5 GHz, 2x2 MIMO
• Maximum data transfer rate: 2,975 Mbit/s
• Ethernet: 2 × RJ‑45, 10/100/1000 Mbit/s
• Security: WEP, WPA, WPA2, WPA3
• Maximum power consumption: 12 W
• Weight: 0.32 kg
• Colour: White

How to use

Install the AP263 into a compatible wall‑plate mounting location and connect to the network using the RJ‑45 Ethernet ports. Configure SSID, security settings (WEP/WPA/WPA2/WPA3) and radio parameters through the supported management interface or controller according to site design. Place the unit where it can provide clear line‑of‑sight coverage for intended areas and avoid large metal obstructions to maintain optimal wireless performance.

Recommendations

For best performance in busy indoor deployments, enable Wi‑Fi 6 features on client devices where available, segment traffic using VLANs, and keep firmware updated. Use professional site survey and channel planning to minimise interference and ensure consistent coverage.
