Ponto de acesso wireless Zyxel NWA90BE — dual‑band 2.4/5 GHz, 4324 Mbit/s, PoE, 1x RJ‑45, branco

The Zyxel NWA90BE is a compact WiFi 7 access point engineered for small businesses, home offices and compact workplaces that need an affordable upgrade to WiFi 7. It combines a Qualcomm quad-core CPU with dual-radio BE5100 (2.4 GHz: 2x2:2, 5 GHz: 2x2:2) operation to deliver up to 5.1 Gbps theoretical WiFi 7 performance and a 2.5GbE uplink for high-speed wired backhaul. Nebula Cloud Networking support enables quick provisioning and centralized monitoring without additional controller hardware.

Advantages

The NWA90BE offers ultra-fast WiFi 7 throughput in a small form factor, dual-radio mesh with MLO for greater bandwidth and lower latency, and enterprise-grade authentication options including captive portal and IEEE 802.1X/RADIUS. Built-in PoE support and a 2.5GbE uplink simplify installation and let the device reach its full performance potential while Nebula provides cloud-based setup, monitoring and real-time alerts.

Suitable for

• Home offices and remote workspaces
• Small business retail or service locations
• Compact multi-room apartments and homes
• SoHo (Small office / Home office) deployments requiring secure guest access

Key specifications

• Radio bands: 2.4 GHz and 5 GHz (dual-radio BE5100)
• Maximum data transfer rate: 4324 Mbit/s (product listing)
• WiFi standards: IEEE 802.11be (WiFi 7), 802.11ax, 802.11ac, 802.11n, 802.11a/b/g
• Security: WEP, WPA, WPA2, WPA3; captive portal and IEEE 802.1X/RADIUS support

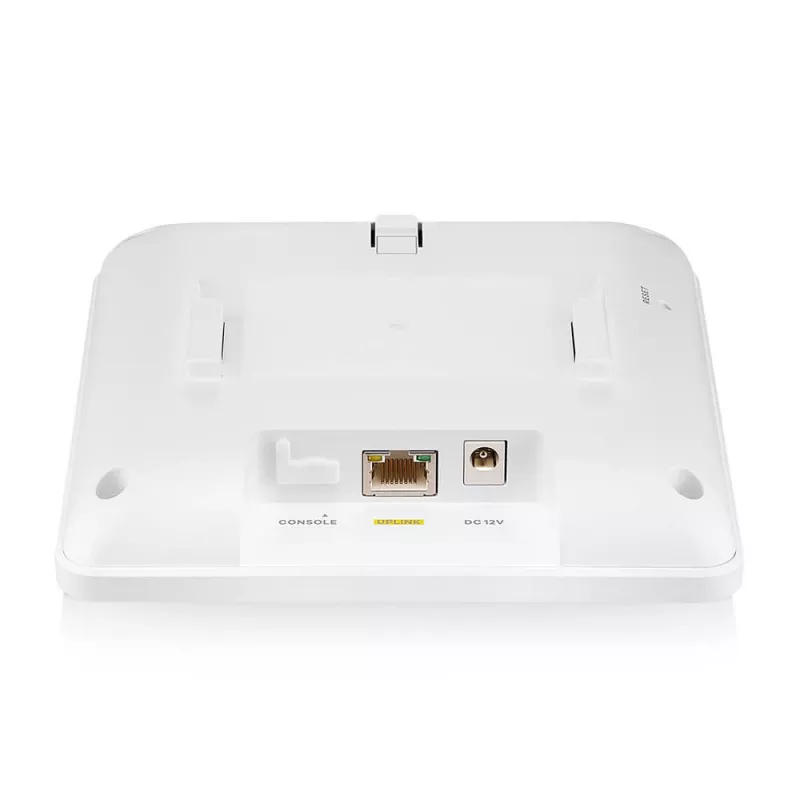

• Ethernet: 1 × RJ-45 port with up to 2.5 GbE uplink; PoE powered
• Physical: internal antennas, colour: White, weight: 0.412 kg

How to use

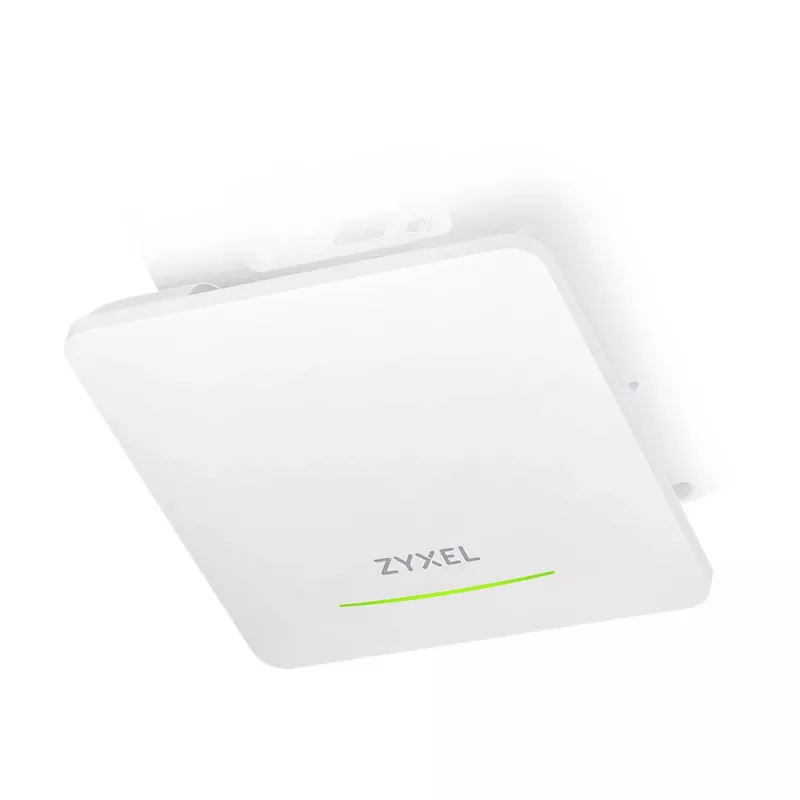

Mount the access point in the desired location and connect it to your network using a PoE-enabled switch or injector to provide power and uplink connectivity. Use the Nebula mobile app or Nebula Cloud portal to run the step-by-step setup wizard, create SSIDs for work and guest networks, and apply security policies such as WPA3 or RADIUS authentication. For mesh coverage, enable Smart Mesh MLO so the unit can form dynamic dual-radio backhaul links with other compatible Zyxel Nebula access points.

Recommendations

Place the device centrally in the coverage area and use Cat5e/Cat6 cabling to the 2.5GbE uplink where possible; enable Nebula management for monitoring and timely firmware updates, and configure VLANs or captive portal policies to separate guest and corporate traffic.
