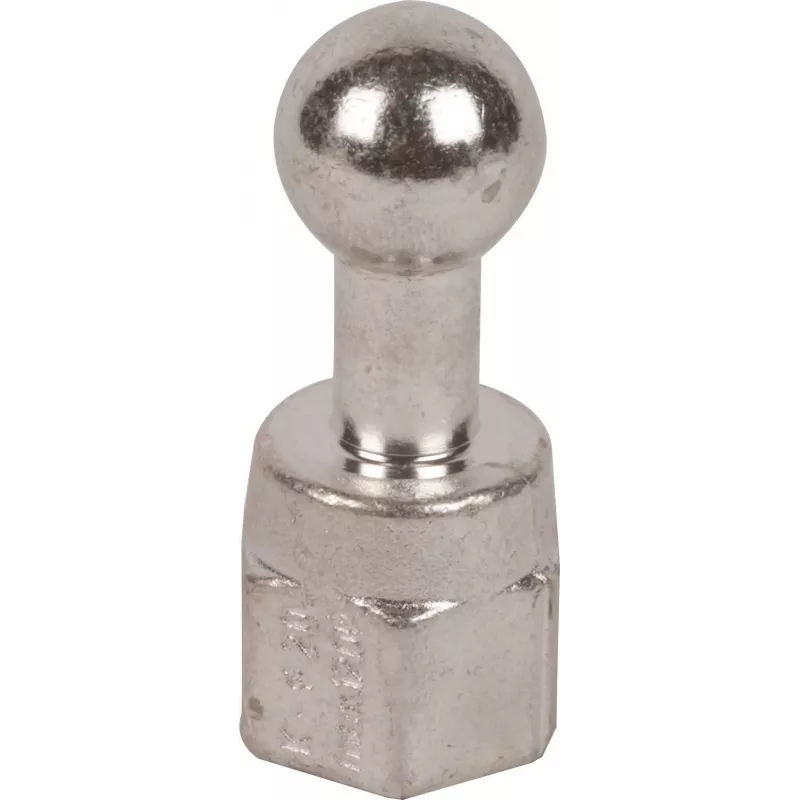

Ponto fixo esférico DEHN 755200 KFP 25 M12 reto com rosca interior

The DEHN 755200 KFP 25 M12 is a ball fixed point designed for secure connection of lightning protection and grounding conductors. Its straight design with M12 internal thread allows direct structural attachment, while the clamp accommodates round conductors 8-10 mm and flat conductors up to 30x3.5 mm. Made of stainless steel (V2A), it offers high corrosion resistance for outdoor and indoor use.

Highlights

• Straight ball fixed point for equipotential bonding and grounding
• Stainless steel (V2A) construction for durability
• Accepts round conductors 8-10 mm and flat conductors 30x3.5 mm
• M12 internal thread for mounting
• UV and weather resistant

In daily use

This fixed point provides a reliable connection point for lightning protection systems. The clamp design ensures a secure hold on conductors, while the threaded hole allows attachment to structural elements. Suitable for both outdoor and indoor installations.

Full specifications

• Product type: Ball Fixed Point
• Design: Straight
• Material: Stainless Steel (V2A)
• Internal thread: M12
• Conductor connection (round): Rd 8-10 mm
• Conductor connection (flat): Fl 30x3.5 mm
• Application: Equipotential bonding, grounding, lightning protection
• Standard compliance: EN 62561-1
• Corrosion resistance: High
• Mounting type: Fixed point for structural attachment
• Connection method: Clamp for conductors, threaded hole for mounting
• Environmental suitability: Outdoor and indoor
• UV resistance: Yes
• Weather resistance: Yes
• Series: DEHNconnect

Final note

Reliable and robust, the DEHN 755200 ensures a secure connection point for your lightning protection system.
