VIDOS S20DA posto de porta exterior – CMOS de 1/3 de polegada, 600 TVL, visão noturna IR, 4 fios, IP54, prateado

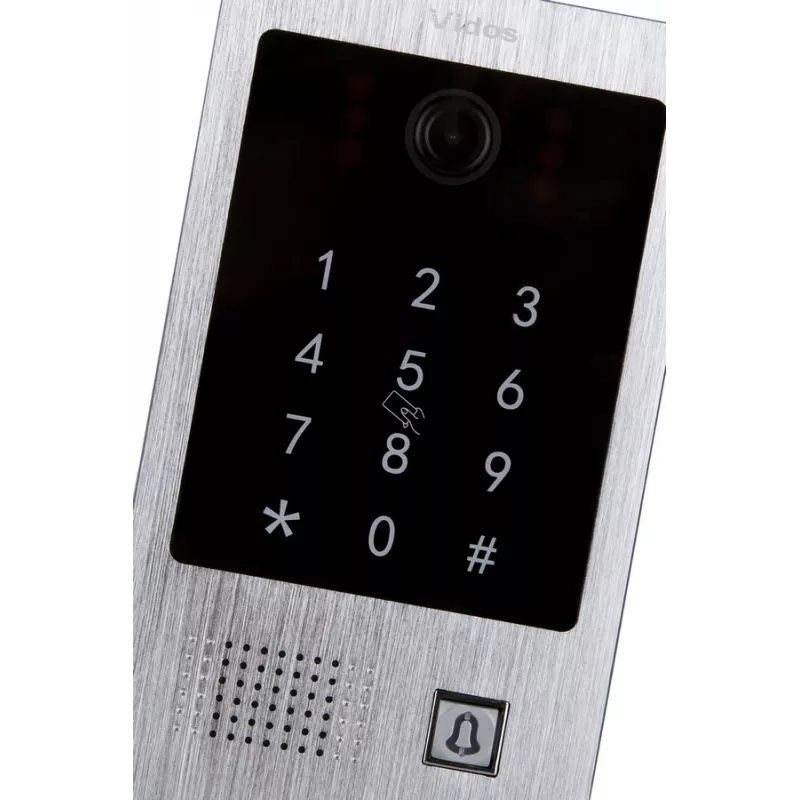

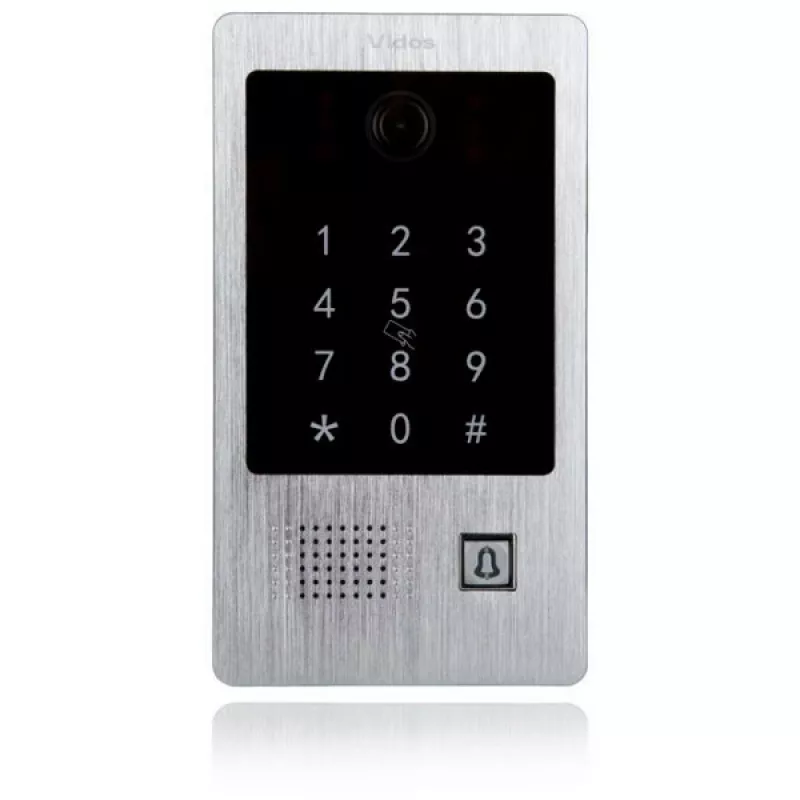

The VIDOS S20DA is an outdoor door panel designed for single-family intercom systems, compatible with all VIDOS analogue monitors. It features a 1/3″ image sensor with 800TVL resolution and a 1.8mm lens providing a 110° viewing angle, along with IR LED night illumination. The panel includes a built-in code lock for entry (up to 200 codes) and a built-in proximity reader in the UNIQUE 125kHz standard (up to 200 tags), with a backlit keypad and doorbell button.

Key features

• 1/3″ image sensor
• 800TVL camera resolution
• 1.8mm lens with 110° viewing angle
• IR LED night illumination
• Built-in code lock for entry – max 200 codes
• Built-in proximity reader in UNIQUE 125kHz standard – max 200 tags
• Backlit keypad and doorbell button
• Protection against unauthorised use
• Brushed aluminium and ABS housing
• Flush or surface mounting

Specifications

• Brand: Vidos
• MPN: S20DA
• Power supply: DC12-15V
• Operating temperature range: -25°C ~ +50°C
• Power consumption: Standby – 0.40W / operation – 0.95W
• Ingress protection class: IP65
• Programming: From the door panel keypad
• Dimensions: 84x150x36 mm
• Box dimensions: 78x142x31 mm
