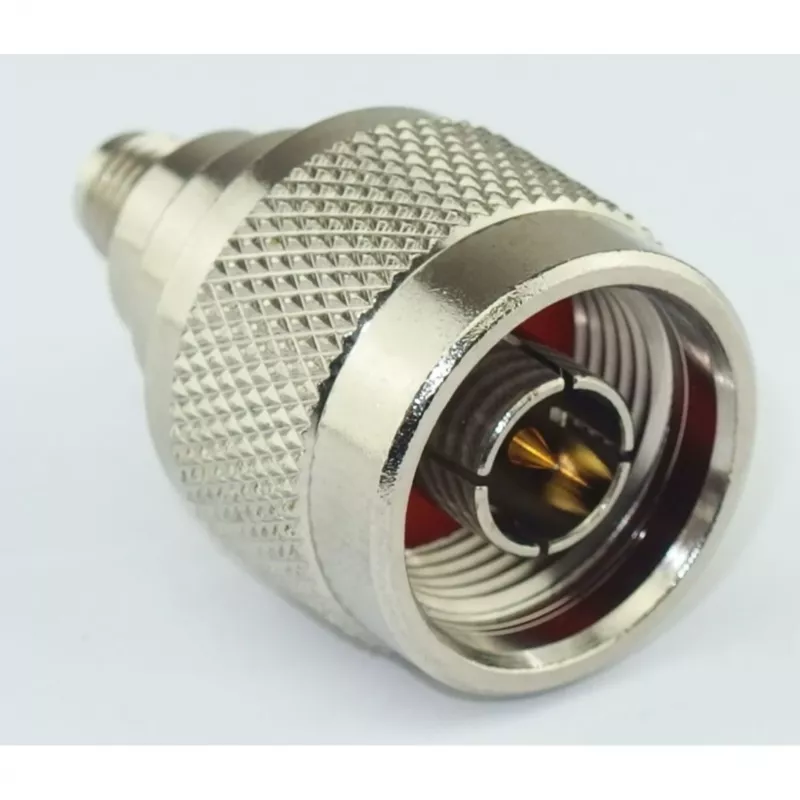

Poynting Adaptador Coaxial RF Conector Fêmea SMA para Ficha N A-ADPT-041

The Poynting A-ADPT-041 is a high-quality RF coaxial adapter designed to connect SMA female connectors to N-Type male connectors. Engineered for reliable signal transmission in wireless communication, antenna systems, and RF test equipment, this adapter ensures minimal signal loss and excellent performance across a wide frequency range.

Advantages

This adapter offers robust construction with a brass body, nickel plating, and gold-plated center contact for superior conductivity and corrosion resistance. It supports frequencies up to 6 GHz with a low VSWR of less than 1.2:1, ensuring efficient power transfer and signal integrity. The PTFE insulator provides excellent dielectric properties, making it suitable for demanding environments.

Suitable for

• Connecting SMA female antennas to N-Type male cables or devices
• RF test setups requiring a reliable adapter
• Wireless communication systems, including Wi-Fi, cellular, and IoT applications
• Extending or adapting antenna connections in professional installations

Key specifications

• Adapter Type: RF Coaxial Adapter
• Connector A: SMA Female
• Connector B: N-Type Male
• Impedance: 50 Ohm
• Frequency Range: DC to 6 GHz
• VSWR: < 1.2:1 (at 6 GHz)
• Body Material: Brass, Nickel Plated
• Center Contact: Gold Plated
• Insulator: PTFE
• Body Style: Straight
• Mounting: In-line / Free Hanging
• Operating Temperature: -40°C to +85°C
• Dielectric Withstanding Voltage: 1000 V RMS
• Insulation Resistance: ≥ 5000 MΩ
• Durability: 500 Mating Cycles

Recommendations

For optimal performance, use with 50 Ohm cables and connectors. Ensure proper torque when mating to avoid damage. Suitable for indoor and outdoor applications when protected from moisture.
