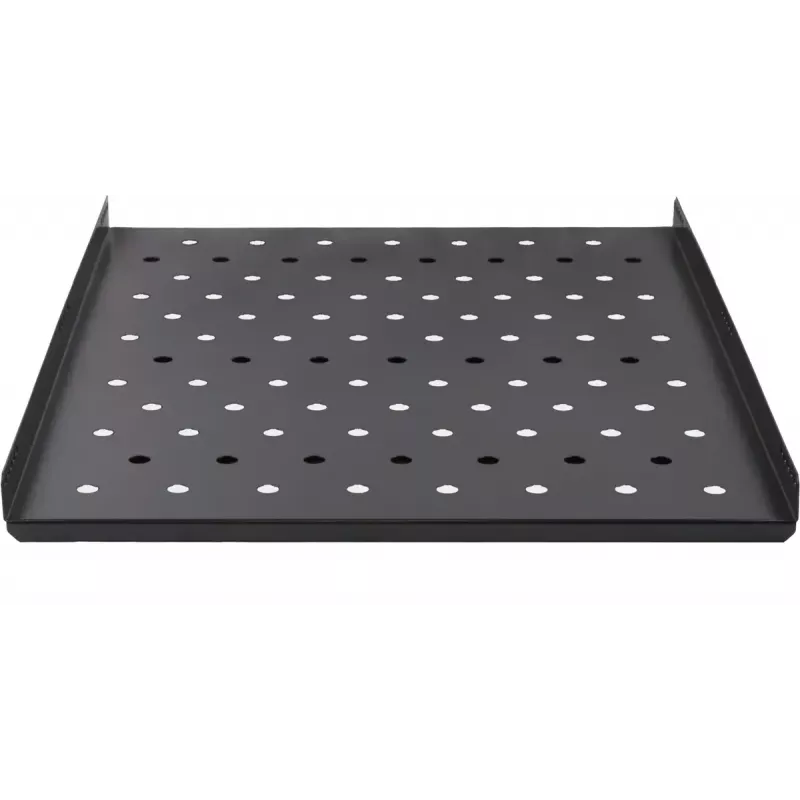

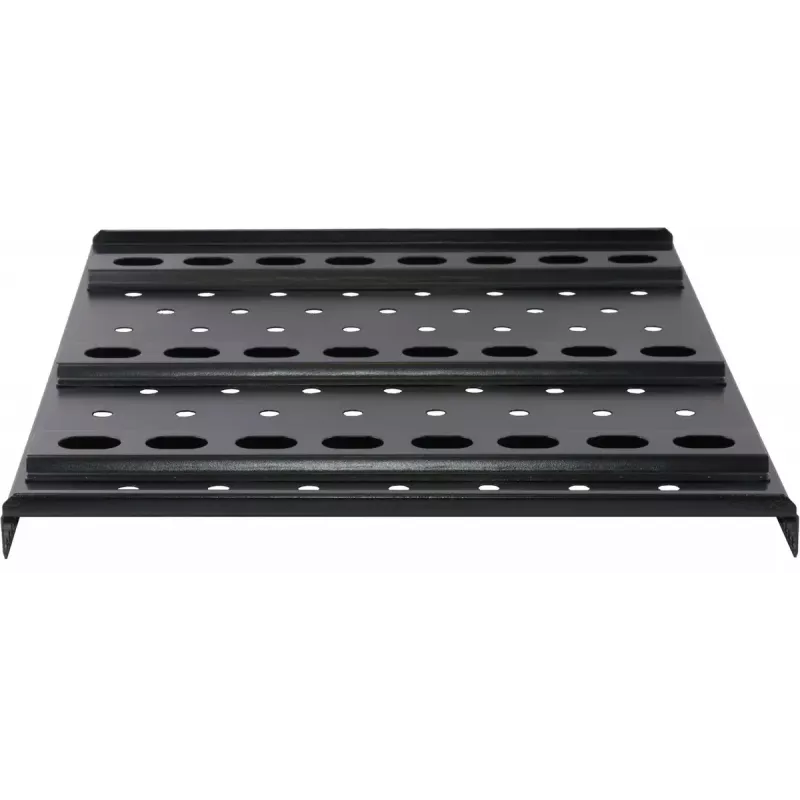

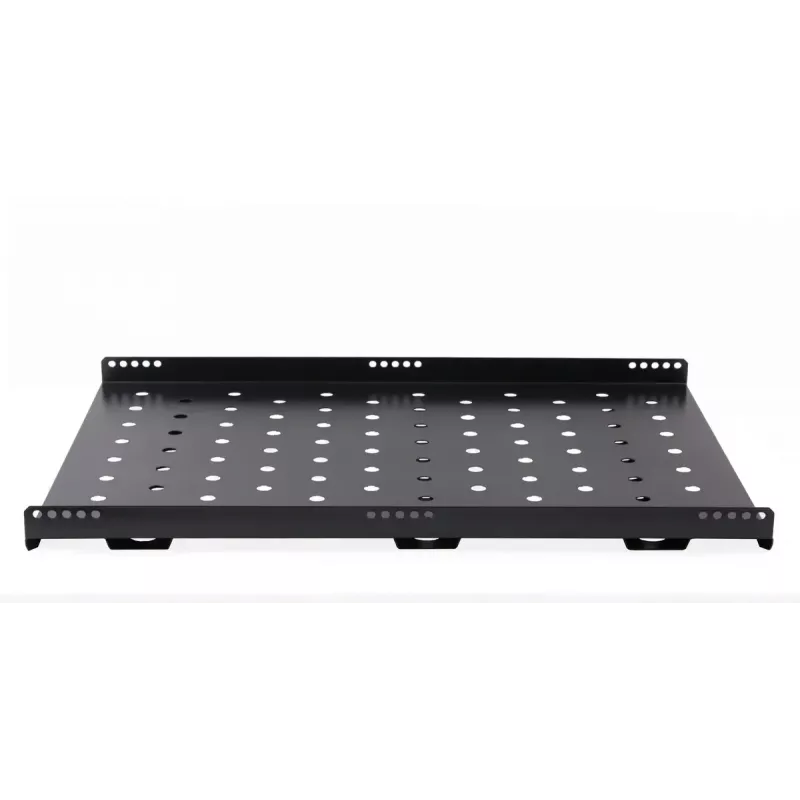

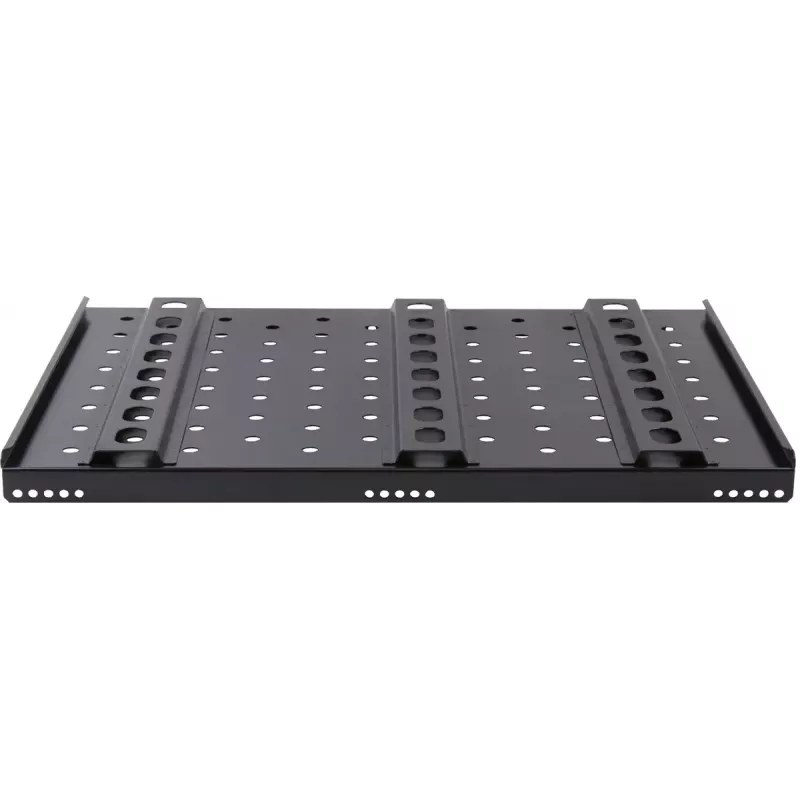

Prateleira para rack Rockstable RS19-SFH610 1U 19 polegadas carga pesada

The Rockstable RS19-SFH610 1U 19" Heavy Load rack shelf is a steel mounting shelf designed for installation in 19" server racks. It features a reinforced base plate that supports loads up to 60 kg and integrated airshafts in the bottom for improved ventilation. The shelf is compatible with server cabinets having depths from 960 mm to 1000 mm and is supplied in a black finish.

Advantages

The reinforced SPCC steel construction provides high load capacity and long-term durability while maintaining a compact 1U height. Built-in airshafts help maintain airflow through the cabinet, and compatibility with a range of rack depths simplifies installation in standard server rooms. The product is supplied as a single unit ready for mounting.

Suitable for

• Mounting non-rackable devices in 19" server cabinets
• Storing peripherals, switches or small power supplies
• Use in server cabinets with depths of 960–1000 mm

Key specifications

• Model: RS19-SFH610
• Form factor: 1U, 19"
• Material: SPCC steel
• Color: Black
• Max load: 60 kg
• Quantity: 1 pc
• Compatible cabinet depth: 960–1000 mm

How to use

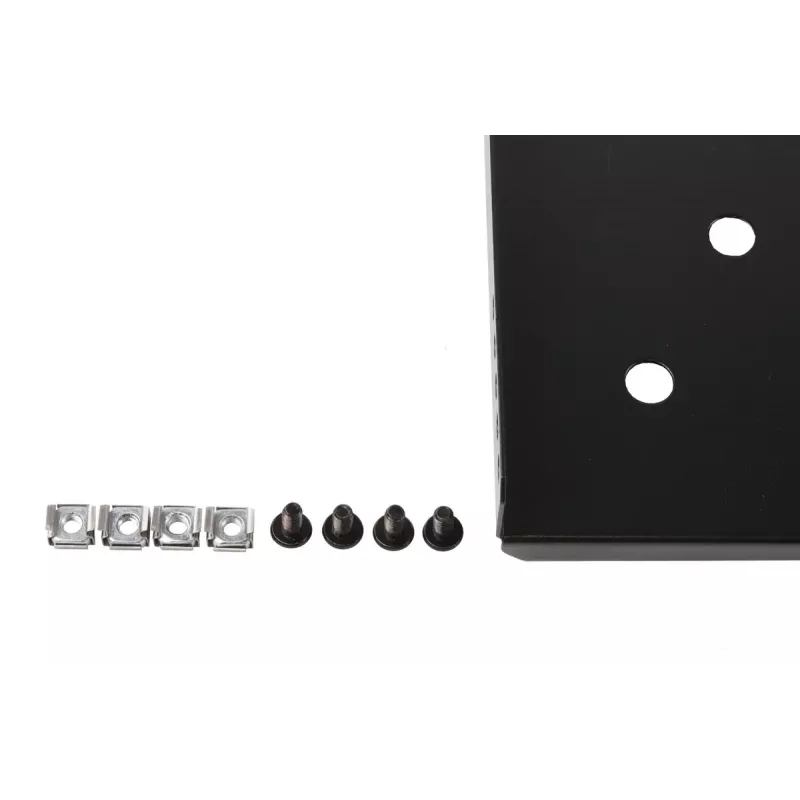

Install the shelf into a standard 19" rack at the desired U position using appropriate rack screws and cage nuts. Ensure the cabinet depth is within 960–1000 mm so that the shelf fits correctly. Distribute mounted equipment evenly across the shelf and avoid exceeding the 60 kg maximum load. Verify airflow around the installed devices and use the airshafts to support cabinet ventilation.

Recommendations

For safe operation, secure heavy or unbalanced equipment to prevent shifting and routinely check mounting hardware. Keep the total load per shelf below 60 kg and allow clearance for airflow through the built-in airshafts.
