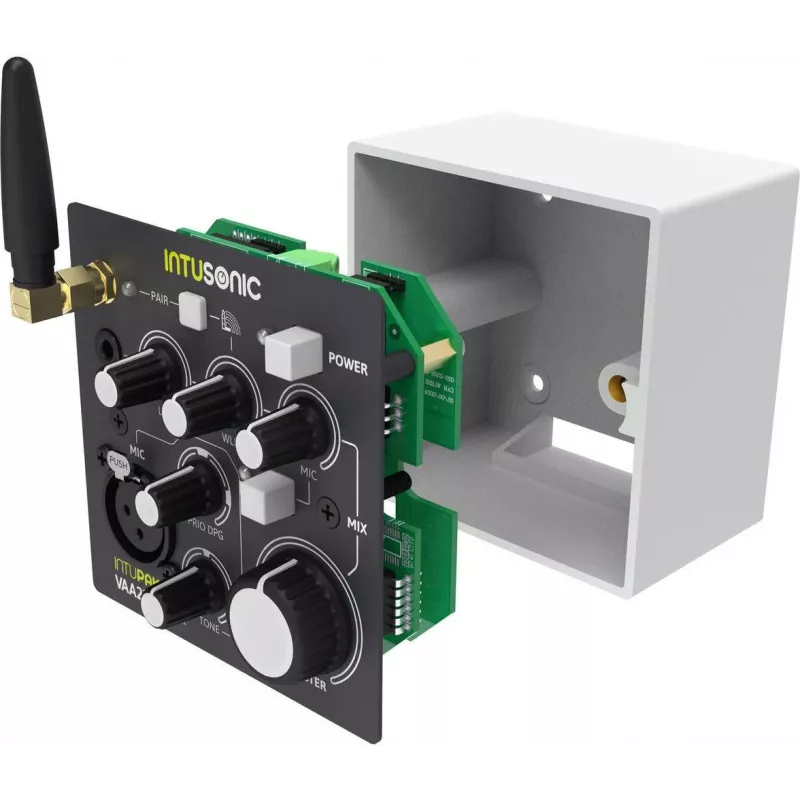

Pré-amplificador/misturador de encastrar INTUSONIC VAA22 12604195

This built-in preamplifier/mixer solves the problem of integrating multiple audio sources into a single, controllable output in installations where space is limited and a flush-mount design is required. It combines two stereo line inputs, a microphone input, and an auxiliary input, giving you flexible mixing with individual volume controls and a master output.

Who is it for

Installers and integrators who need a compact, wall- or panel-mounted audio mixer for commercial or residential applications such as meeting rooms, classrooms, bars, or retail spaces. It suits anyone who needs to blend background music with announcements or paging.

Main features

• 2-channel preamplifier/mixer with stereo line, mic, and aux inputs
• Individual input volume controls plus master volume
• Bass and treble tone controls (±12 dB) for sound shaping
• Flush-mount design with included cutout dimensions for easy installation
• External 12V DC power supply for safe low-voltage operation

Specifications

• Inputs: 2x stereo RCA (line), 1x 6.3 mm TS jack (mic), 1x 3.5 mm TRS jack (aux)
• Output: 1x stereo RCA (line)
• Frequency response: 20 Hz – 20 kHz
• Signal-to-noise ratio: >70 dB
• Total harmonic distortion: <0.1%
• Input impedance: 10 kOhm (line), 600 Ohm (mic)
• Power supply: 12V DC, external adapter
• Dimensions (W x H x D): 150 x 85 x 45 mm
• Cutout dimensions (W x H): 120 x 70 mm

Tips

Use the tone controls to compensate for room acoustics or source material. For best results, set individual input levels so that the loudest expected signal does not clip, then adjust the master volume to the desired overall level.
