Projetor Epson EB-L520U Standard Throw 5200 ANSI lúmenes 3LCD WUXGA (1920x1200) branco

The Epson EB-L520U is a high-performance laser projector offering 5200 ANSI lumens brightness and WUXGA native resolution (1920x1200). Using 3LCD technology and 10-bit video processing, it delivers accurate color reproduction and sharp imagery for large-screen applications. The laser light source provides long operational life—up to 20,000 hours in normal use and up to 30,000 hours in economic mode—reducing maintenance and downtime. The projector comes in a white housing, weighs 7.7 kg, and supports screen sizes from approximately 1270 mm up to 12,700 mm, making it suitable for auditoriums, lecture halls and meeting rooms.

Advantages

The EB-L520U combines high lumen output with 3LCD imaging to produce bright, evenly lit images without rainbow artifacts. Its WUXGA (1920x1200) native resolution and 10-bit processing enhance detail and color gradation for presentations, video and graphical content. The laser light source offers long life and stable brightness over time, while the projector’s manual focus and a focal length range of 20–31.8 mm provide installation flexibility. The unit’s white finish and compact profile support discreet mounting in professional environments.

Suitable for

• Large conference rooms and auditoriums
• University lecture halls and classrooms
• Corporate boardrooms and training centers
• House of worship and event venues
• Fixed installations where long lamp life and low maintenance are required

Key specifications

• Projector model: Epson EB-L520U (MPN: V11HA30040, EAN: 8715946695563)
• Projection technology: 3LCD
• Native resolution: WUXGA (1920x1200)
• Brightness: 5200 ANSI lumens
• Native aspect ratio: 16:10
• Screen size compatibility: 1270 – 12700 mm
• Light source: Laser, up to 20,000 hours (30,000 hours in economic mode)
• Focal length range: 20–31.8 mm; manual focus
• Video processing: 10-bit
• Product colour: White
• Weight: 7.7 kg

How to use

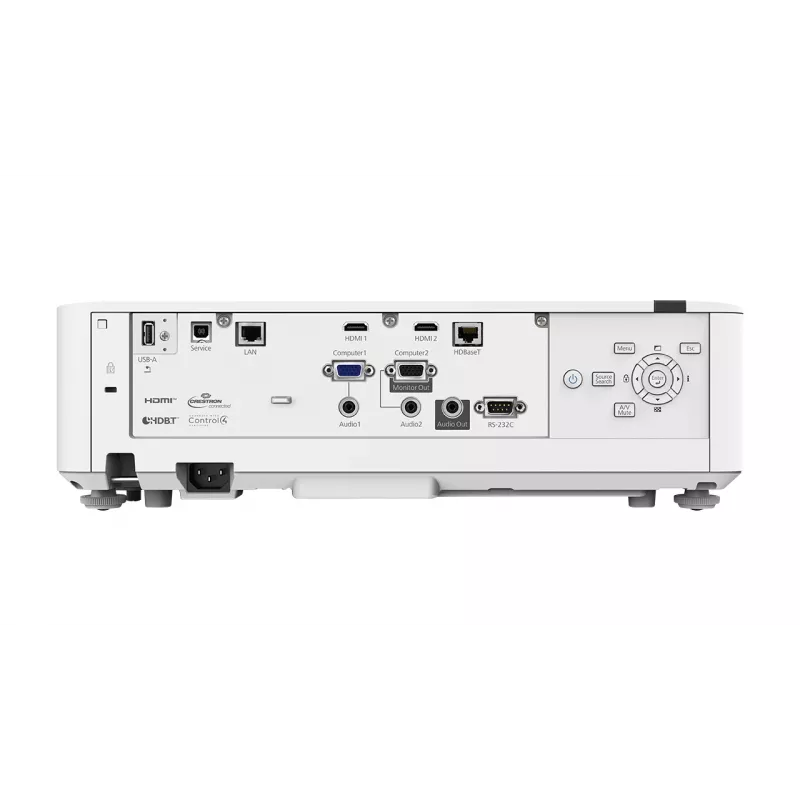

Install the projector on a stable mount or surface positioned to match the desired screen size and throw distance. Connect input sources via available video interfaces (refer to the product manual for supported connectors) and power the unit. Use the projector’s manual focus and lens position to achieve a sharp image; adjust projector placement within the focal length range of 20–31.8 mm as required. Select the appropriate video color mode for the content type and fine-tune brightness and color settings through the on-screen menu. Observe proper ventilation clearances and follow the manufacturer’s instructions for initial setup and calibration.

Recommendations

For long-term reliability, operate the projector in economic mode when maximum brightness is not required; this extends laser life up to 30,000 hours. Schedule periodic inspection of mounting hardware and ventilation paths, and use factory-recommended cleaning procedures for optical surfaces. For critical installations, perform a full image and color calibration after installation and before important events to ensure consistent display quality.
