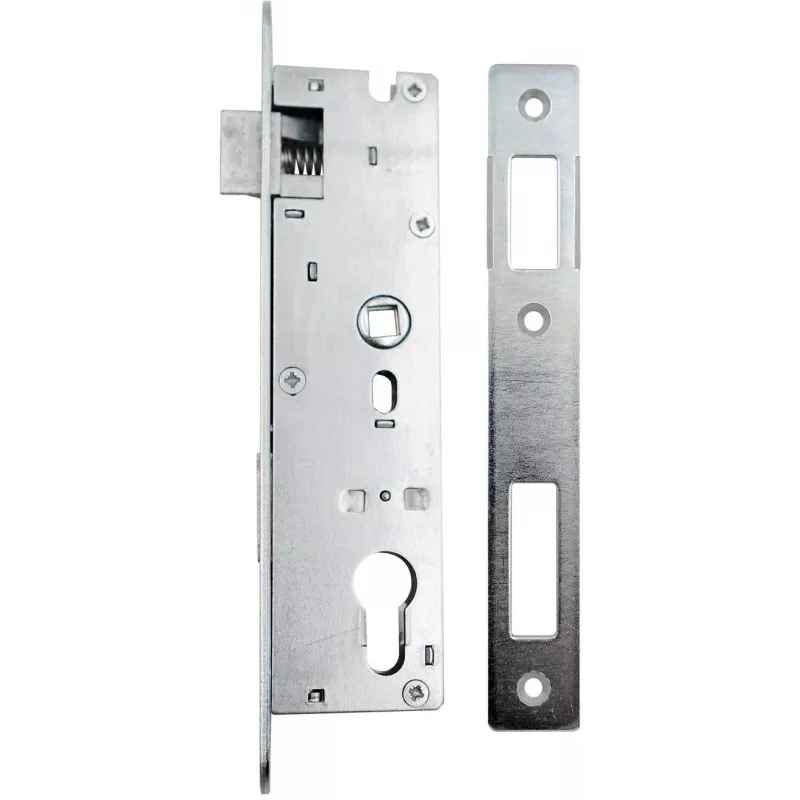

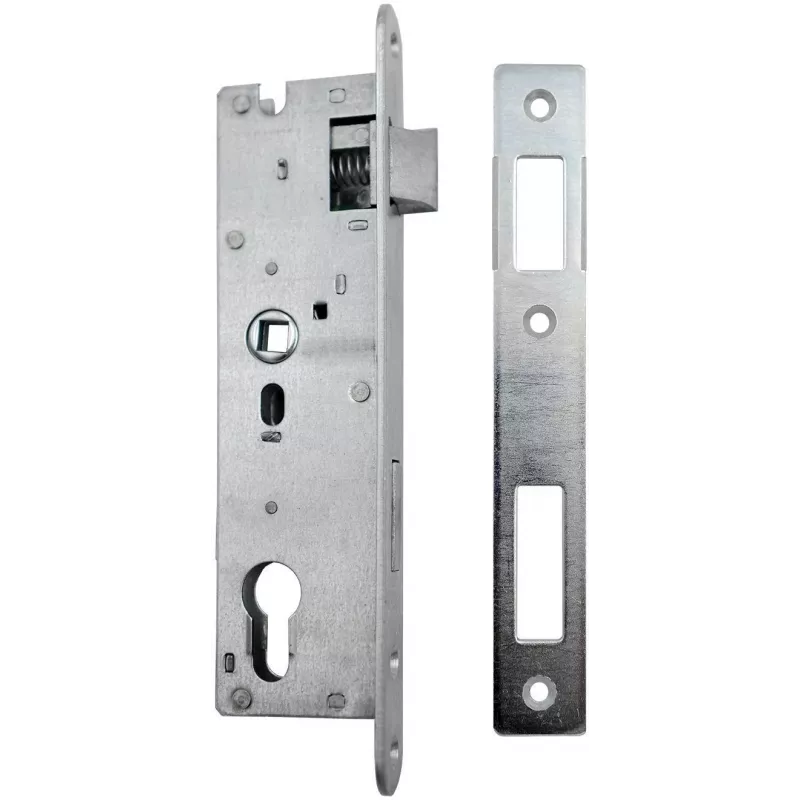

PSG 63.211 L/P Fechadura de embutir com lingueta e ferrolho, substituível, chapa frontal 220 x 22 mm, 72 mm PZ, 50 mm entre-eixos, aço zincado

The PSG 63.211 L/P stands out among mortise locks by combining a reversible latch and deadbolt in a single compact mechanism, eliminating the need to choose left- or right-handed models at purchase. Its 220 mm faceplate and 72 mm PZ centre distance make it a direct fit for many European-style interior doors, while the zinc-plated galvanised steel body resists everyday corrosion without the premium cost of stainless hardware.

Highlights

• Reversible handing – works for left or right doors without disassembly
• Latch and deadbolt in one mortise case for secure closure
• 72 mm PZ centre distance and 50 mm backset for standard profile cylinders
• 220 x 22 mm faceplate suits tall door preparations
• Galvanised steel with zinc plating for long-term durability
• Square deadbolt with single throw for reliable locking

In daily use

Installed flush into the door edge, this lock provides a smooth spring latch for daily passage and a square deadbolt for positive locking when privacy or security is needed. The reversible design means installers can keep one model in stock for both door swings, reducing inventory complexity. The 8 x 8 mm spindle follower accepts standard door handles, and the lock is compatible with profile cylinders (not included), allowing keying to match existing systems.

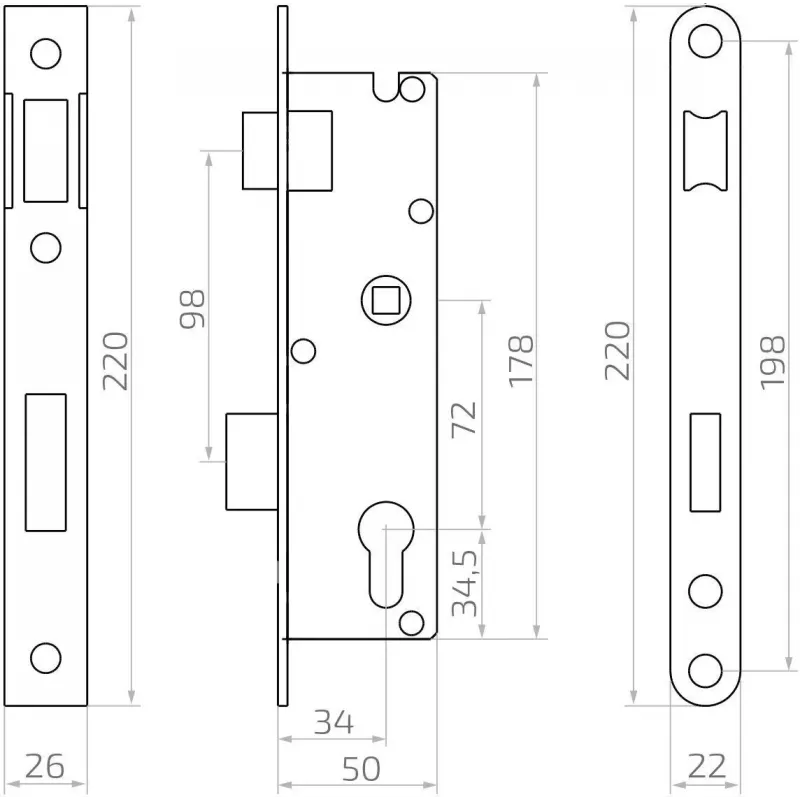

Full specifications

• Lock type: Mortise lock
• Locking mechanism: Latch and deadbolt
• Handing: Reversible (left/right)
• Backset: 50 mm
• Centre distance (PZ): 72 mm
• Faceplate height: 220 mm
• Faceplate width: 22 mm
• Spindle size: 8 x 8 mm
• Deadbolt throw: Single throw
• Material: Galvanised steel
• Finish: Zinc plated
• Application: Interior doors
• Key type compatibility: Profile cylinder (not included)
• Latch type: Spring latch
• Bolt type: Square deadbolt
• Security class: Standard
• Mounting type: Recessed
• Corrosion resistance: Standard

Final note

For builders and locksmiths who value versatility, the PSG 63.211 L/P offers a dependable reversible mortise lock that meets common European door preparations without unnecessary extras.
