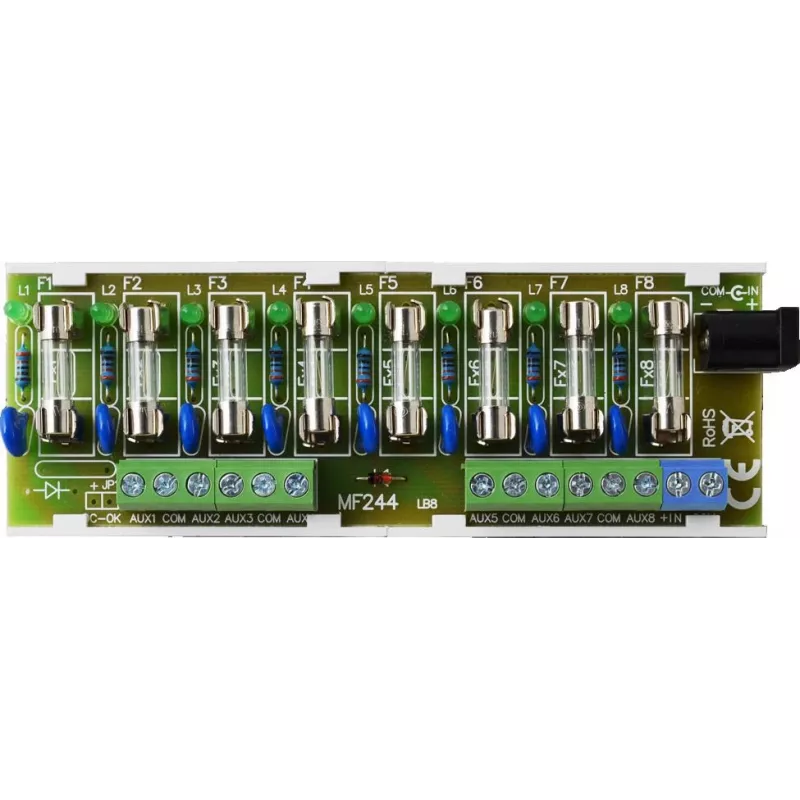

PULSAR AWZ580 Módulo de fusíveis 8 canais 1A por canal 10-30V DC

The PULSAR AWZ580 is a high-quality fuse module designed for reliable power distribution in security and IT systems. With 8 individually fused outputs, each rated at 1A, it provides short-circuit and overload protection for connected devices. The module accepts an input voltage of 10V to 30V DC and delivers an unregulated output voltage equal to the input. Ideal for CCTV, access control, alarm systems, and IT equipment, the AWZ580 ensures safe and organized power distribution.

Advantages

Individual 1A glass fuses per channel protect each device independently. Surface mount design with screw terminals simplifies installation. Wide input voltage range accommodates various power supplies. Compact PCB housing saves space.

Suitable for

• CCTV systems
• Access control systems
• Alarm systems
• IT equipment

Key specifications

• Number of outputs: 8
• Output current per channel: 1A
• Total output current: 8A max
• Input voltage: 10V - 30V DC
• Output voltage: Equal to input voltage (unregulated)
• Fuse type: Glass fuse 5x20mm
• Fuse rating: 1A per channel
• Protection: Short circuit, overload
• Mounting: Surface mount
• Connection: Screw terminals
• Operating temperature: -10°C to +40°C
• Relative humidity: 20% to 90% RH
• Housing material: PCB
• Terminal wire gauge: AWG 24-12

Recommendations

For optimal performance, use with a regulated DC power supply. Ensure total load does not exceed 8A. Replace blown fuses with identical 1A 5x20mm glass fuses.
