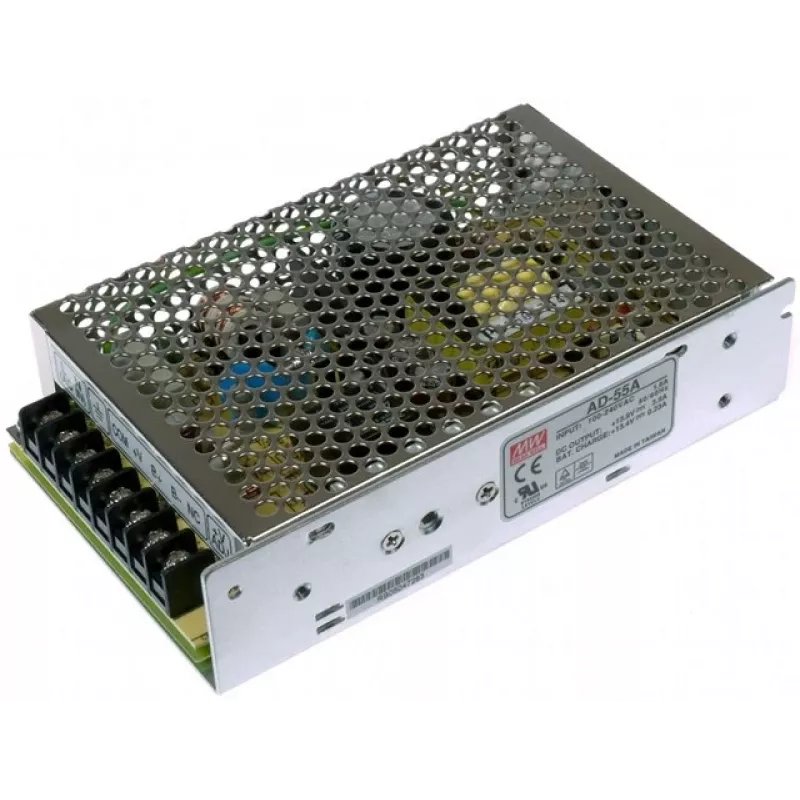

Mean Well AD-55A Fonte de alimentação tampão, 13,8 V / 3,5 A

The Mean Well AD-55A is a buffer power supply with an input voltage range of 88-264VAC and 124-370VDC. It provides an output of 13.8V at 0-4.0A and 13.4V at 0-0.23A, with a tolerance of ±1% and ripple and noise of 100mV. The unit features short circuit, overvoltage, and overload protections, and includes a battery discharge protection function.

Key features

• Input voltage: 88-264VAC, 124-370VDC
• Protections: short circuit, overvoltage, overload
• PFC function
• Battery discharge protection
• Output voltage adjustable ±10%
• Cooling by free air convection
• Operating temperature: -10 to +60°C
• DIN rail mountable (with accessories)

Specifications

• Brand: Pulsar
• MPN: AD-55A
• Model: AD-55A
• Output: 13.8V, 0-4.0A; 13.4V, 0-0.23A
• Tolerance: ±1% (charging)
• Ripple and noise: 100mV
• Efficiency: 0.71
• Dimensions: 159 x 97 x 38 mm
