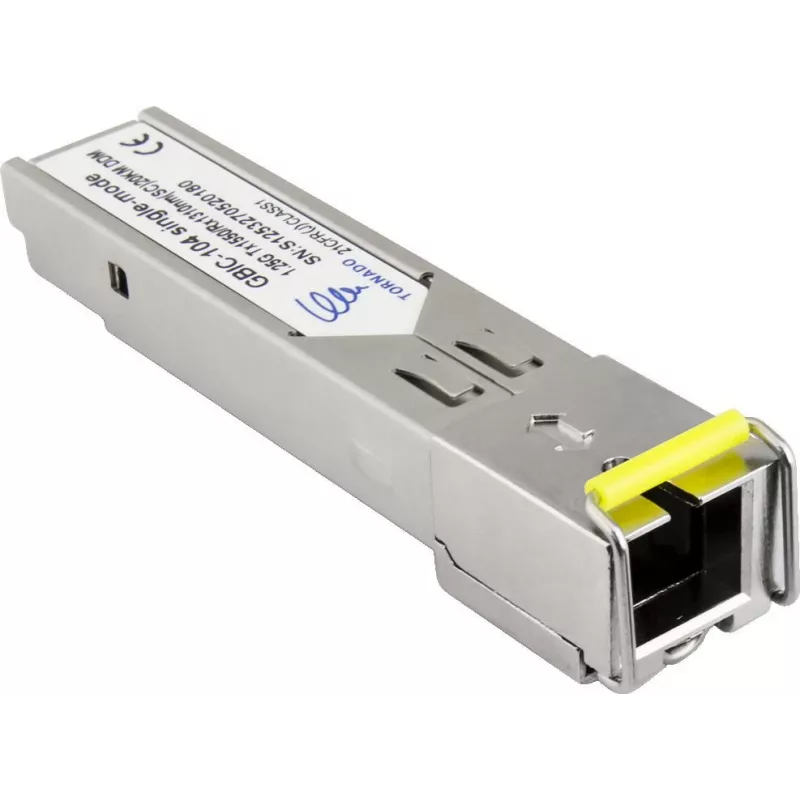

PULSAR GBIC-104 Módulo SFP 1,25 Gbit/s 1310 nm 20 km LC Monomodo

The PULSAR GBIC-104 is a high-performance SFP (Small Form-Factor Pluggable) transceiver module designed for Gigabit Ethernet and 1x Fiber Channel applications. It operates at a data rate of 1.25 Gbps over single-mode fiber (SMF) with a wavelength of 1310 nm, supporting distances up to 20 km. The module features a duplex LC connector and is fully MSA compliant (SFF-8472, SFF-8431), ensuring interoperability with a wide range of networking equipment. With built-in Digital Diagnostic Monitoring (DDM/DOM), it provides real-time monitoring of optical parameters for enhanced network management.

Advantages

The GBIC-104 offers reliable, high-speed connectivity for enterprise and data center networks. Its hot-pluggable design allows for easy installation and replacement without disrupting network operations. The module consumes less than 1 W of power, making it energy-efficient. With a robust metal housing, it ensures durability and effective heat dissipation. The commercial-grade operating temperature range (0°C to 70°C) makes it suitable for standard indoor environments.

Suitable for

• Gigabit Ethernet (IEEE 802.3z) networks
• 1x Fiber Channel storage area networks
• Metro and access network connections up to 20 km
• Data center interconnects and enterprise backbone links

Key specifications

• Module Type: SFP Transceiver
• Data Rate: 1.25 Gbps
• Wavelength: 1310 nm
• Fiber Type: Single-Mode Fiber (SMF)
• Max Distance: 20 km
• Connector: Duplex LC
• DDM/DOM: Yes
• Compliance: MSA (SFF-8472, SFF-8431)
• Power Supply: 3.3 V
• Power Consumption: < 1 W
• Operating Temperature: 0°C to 70°C
• Transmitter: FP Laser
• Receiver: PIN Photo Detector
• Optical Output Power: -9 to -3 dBm
• Receiver Sensitivity: < -22 dBm
• Link Budget: > 13 dB

Recommendations

For optimal performance, use with compatible switches, routers, or media converters that support SFP interfaces and single-mode fiber. Ensure proper fiber cleaning and handling to maintain signal integrity. The module is hot-pluggable, but always follow ESD precautions during installation.
