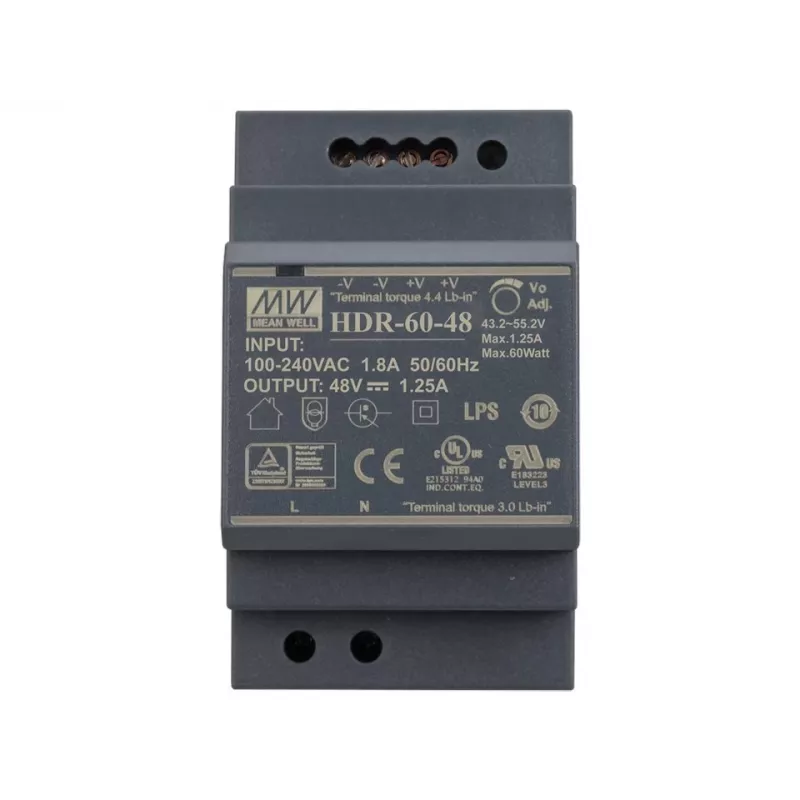

PULSAR MEAN WELL Fonte de alimentação comutada para calha DIN HDR-60-48 48V/60W/1.25A

For DIN rail installations demanding stable 48V DC output in a compact footprint, the MEAN WELL HDR-60-48 stands out with its ultra-slim 52.5mm width and universal AC input. Unlike bulkier industrial supplies, this unit delivers 60W with 90% efficiency and a no-load consumption below 0.3W, making it ideal for control panels, building automation, and machine auxiliary circuits.

Highlights

• 48V DC output, 1.25A, 60W rated power
• Universal input: 85~264VAC or 120~370VDC
• Ultra-slim plastic housing: only 52.5mm wide
• High efficiency up to 90%, low standby power <0.3W
• Protections: short circuit, overload, over voltage
• Wide operating temperature: -30°C to +70°C
• Safety approvals: UL61010-1, TUV EN61010-1, EAC

In daily use

Mount the HDR-60-48 on a standard TS-35/7.5 or TS-35/15 DIN rail and connect your load. The built-in voltage adjustment (48~55V) lets you compensate for cable drops. Hiccup-mode protection ensures automatic recovery after fault conditions, while free air convection cooling eliminates fan noise and maintenance. The rugged plastic case withstands harsh industrial environments, and the 3kVAC isolation provides safety for connected equipment.

Full specifications

• Output voltage: 48V DC (adjustable 48~55V)
• Output current: 1.25A
• Output power: 60W
• Input voltage: 85~264VAC / 120~370VDC
• Efficiency: 90%
• Ripple & noise: 150mVp-p
• Overload protection: 105~160% rated power, hiccup mode
• Over voltage protection: 56~65V, shut down, re-power to recover
• Short circuit protection: hiccup mode, auto-recovery
• Operating temperature: -30°C to +70°C
• Mounting: DIN rail TS-35/7.5 or TS-35/15
• Isolation voltage: 3KVAC
• Safety standards: UL61010-1, UL61010-2-201, TUV EN61010-1, EN61010-2-201, EAC TP TC 004
• EMC standards: EN55032, EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61204-3, EN61000-6-2
• MTBF: >700K hrs (MIL-HDBK-217F @ 25°C)
• Cooling: Free air convection
• Enclosure: Plastic case
• No load power consumption: <0.3W

Final note

Compact, efficient, and reliable—the HDR-60-48 is a smart choice for space-constrained DIN rail power applications.
