Pulsar P-POE2 Splitter PoE passivo 2x ficha RJ45 para 1x conector fêmea RJ45

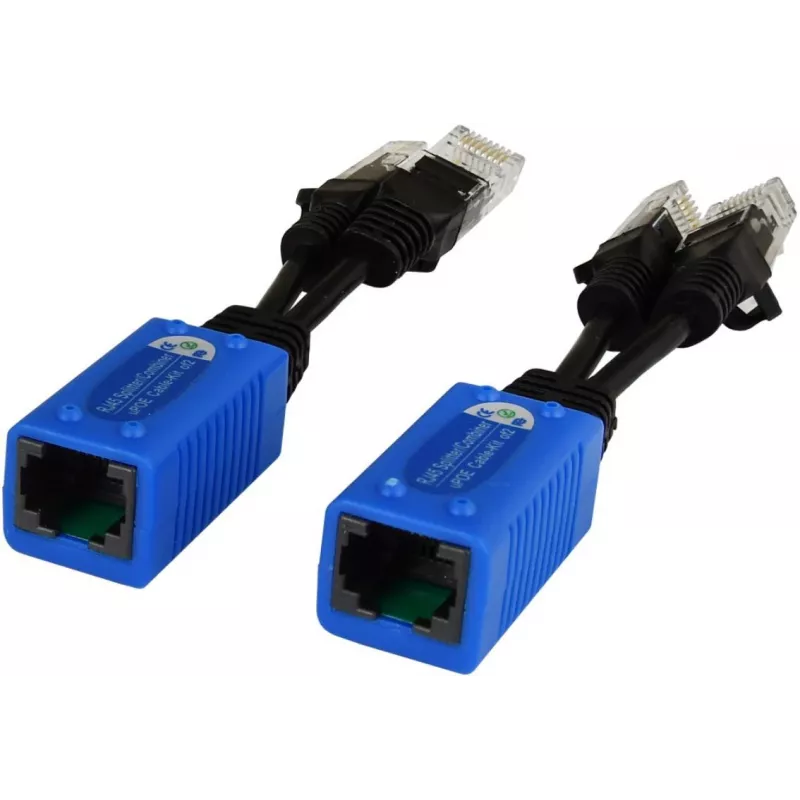

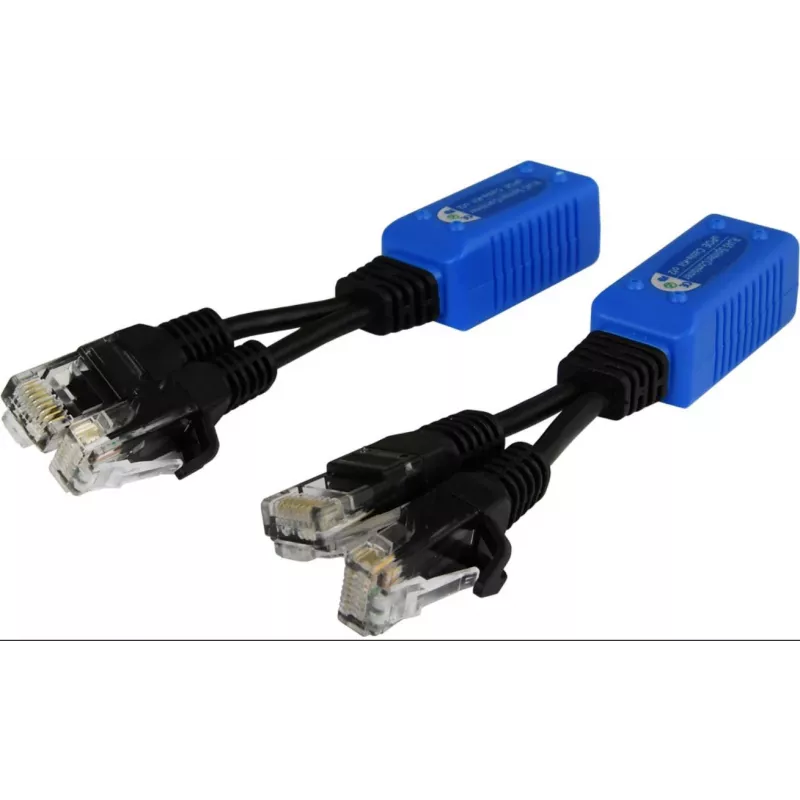

The Pulsar P-POE2 is a passive PoE splitter/combiner that allows you to combine power and data from two separate RJ45 cables into one output. It is ideal for powering PoE devices where a single PoE source is insufficient or for splitting a combined signal back into data and power. The device features two male RJ45 connectors (input) and one female RJ45 connector (output), with a short cable length of approximately 15 cm for easy integration.

Advantages

Enables flexible power and data distribution over Ethernet; supports up to 48V DC and 1A current; compact and durable ABS housing; easy plug-and-play installation without configuration.

Suitable for

• Powering IP cameras, access points, or other PoE devices using separate power and data lines
• Combining power and data from two sources into one cable for long-distance runs
• Testing and lab environments requiring passive PoE splitting

Key specifications

• Product Type: Passive PoE Combiner / Splitter
• Input Connectors: 2x RJ45 Male (Plug)
• Output Connector: 1x RJ45 Female (Socket)
• Data Transfer Rate: 10/100 Mbps
• PoE Standard: Passive PoE (Non-standard)
• Data Pinout: Pins 1, 2, 3, 6 (from one male connector)
• Power Pinout: Pins 4, 5, 7, 8 (from the other male connector)
• Max DC Voltage: Up to 48V DC
• Max DC Current: Up to 1A
• Cable Type Compatibility: UTP Cat.5e or higher
• Cable Length (Male Connectors): Approx. 15 cm
• Housing Material: ABS Plastic
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -20°C to +70°C
• Humidity: 10% to 90% RH (non-condensing)

Recommendations

Ensure that the power source does not exceed 48V DC and 1A. Use with Cat.5e or higher UTP cables for optimal performance. This device is passive and does not negotiate PoE; it simply passes power and data as wired.
