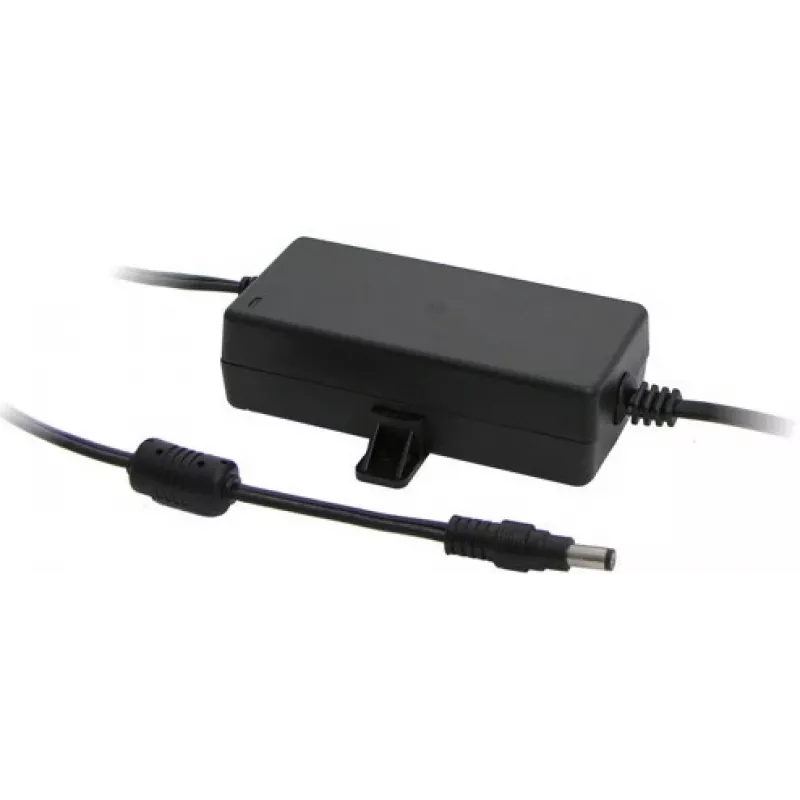

Pulsar PSD12030 Fonte de alimentação comutada de mesa 12V/3A 36W para CCTV

The Pulsar PSD12030 is a high-quality desktop switching power supply designed for CCTV systems, access control, and other 12V DC devices. With a compact form factor and reliable performance, it delivers 12V DC at 3A (36W) output. The unit features a universal AC input (90-264V) and includes protection against short circuits, overload, and over voltage. Its passive cooling ensures silent operation, making it ideal for indoor installations.

Advantages

Stable 12V DC output with 3A current capacity; universal input voltage range; comprehensive protection features; silent passive cooling; LED power indicator for easy status monitoring.

Suitable for

• CCTV cameras and DVRs
• Access control systems
• General 12V DC powered devices

Key specifications

• Input: 90-264V AC, 50/60Hz
• Output: 12V DC, 3A, 36W
• Output connector: DC 2.1/5.5mm plug
• Input connector: IEC C14 socket
• Efficiency: >80%
• Protection: SCP, OLP, OVP
• Operating temperature: -10°C to +40°C
• Cooling: Passive (natural convection)
• Housing: Plastic
• Output cable length: 1.4m
• Certifications: CE, RoHS

Recommendations

For optimal performance, use with a compatible C13 power cord (not included). Ensure adequate ventilation around the unit. Suitable for indoor use only.
