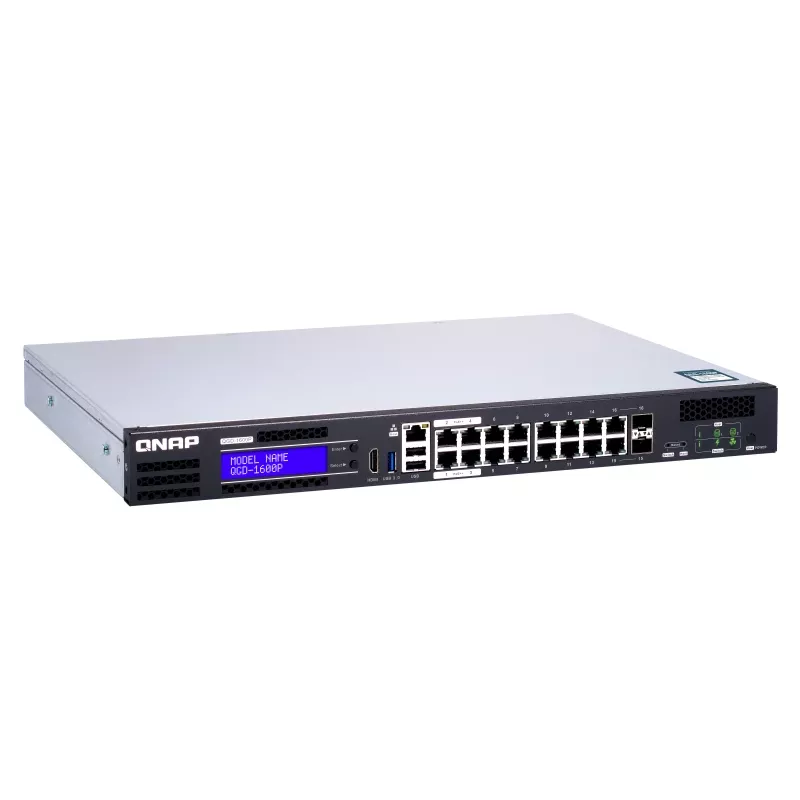

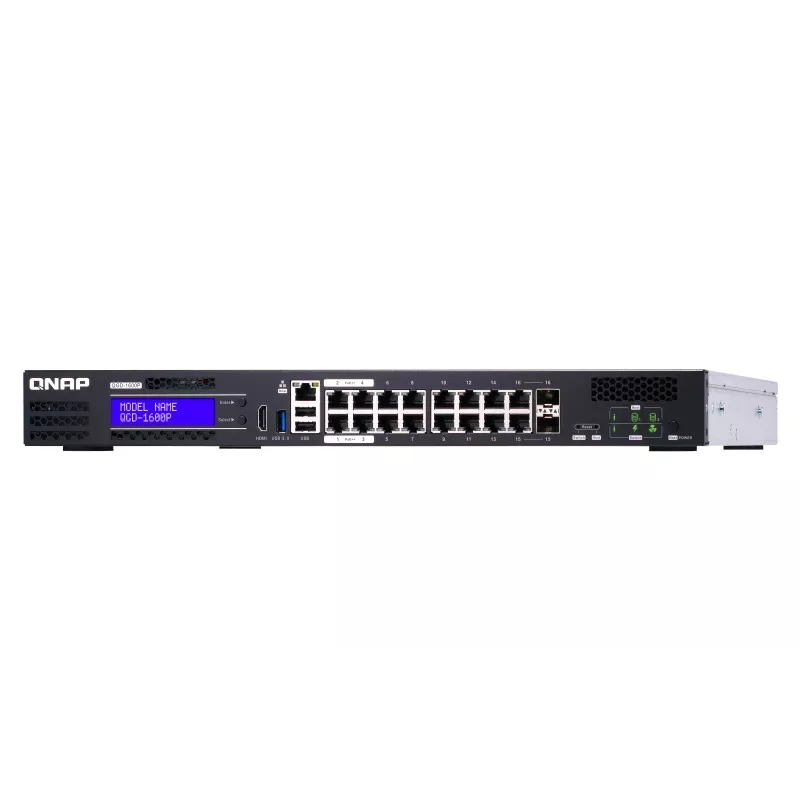

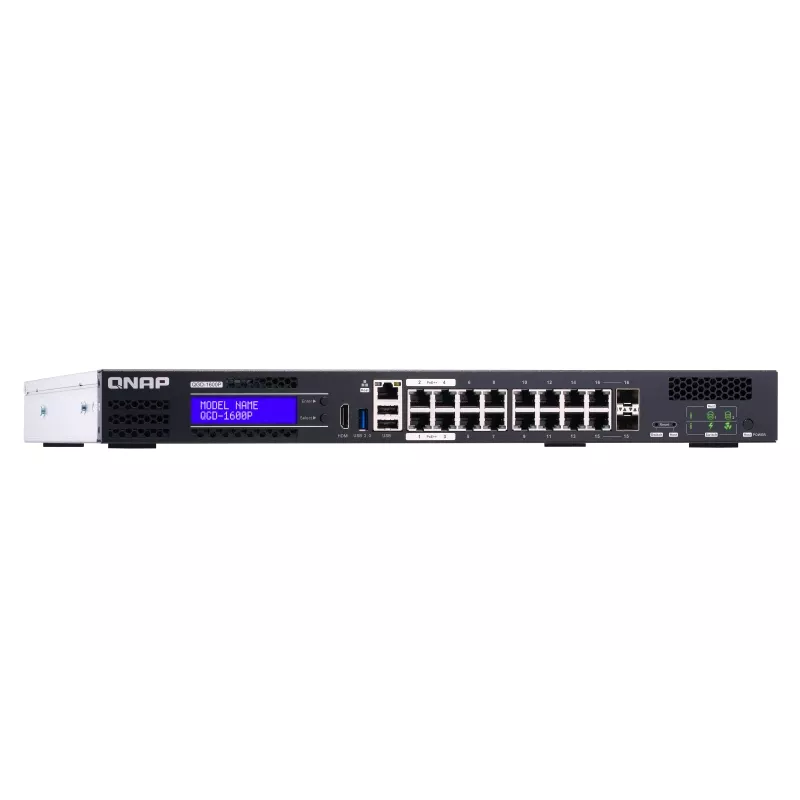

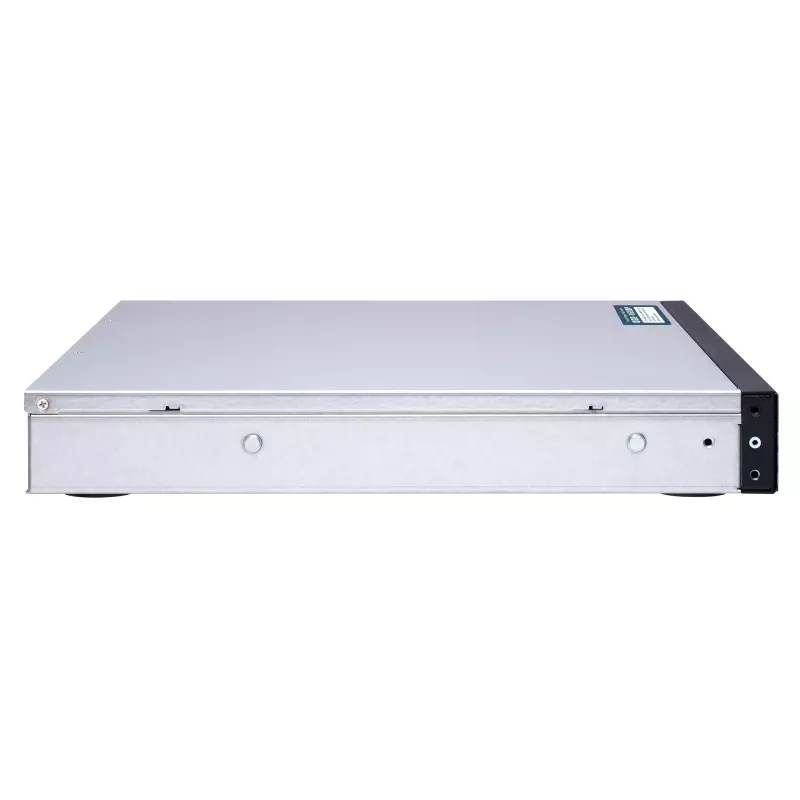

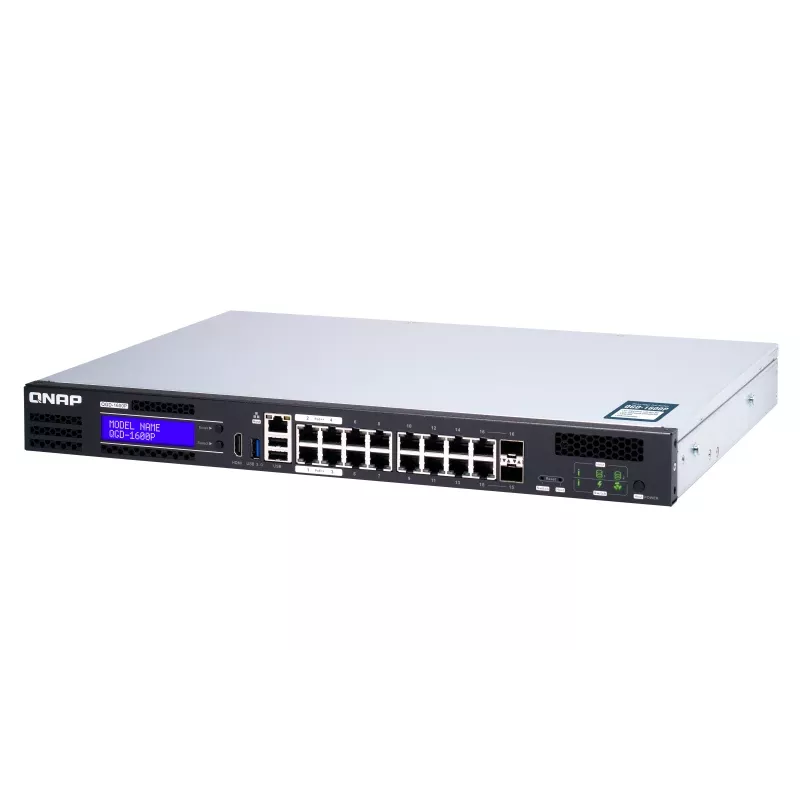

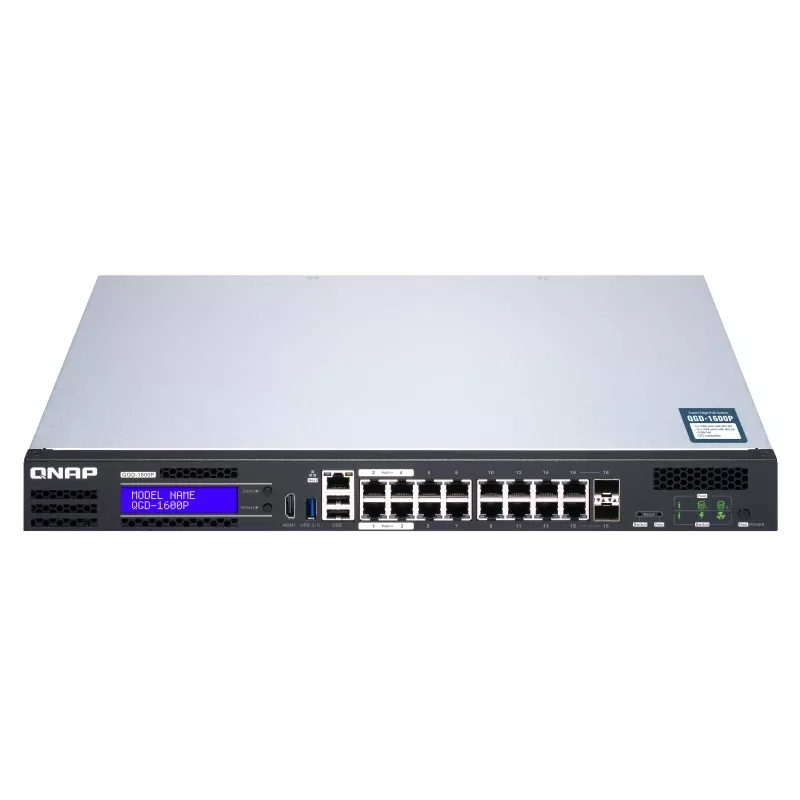

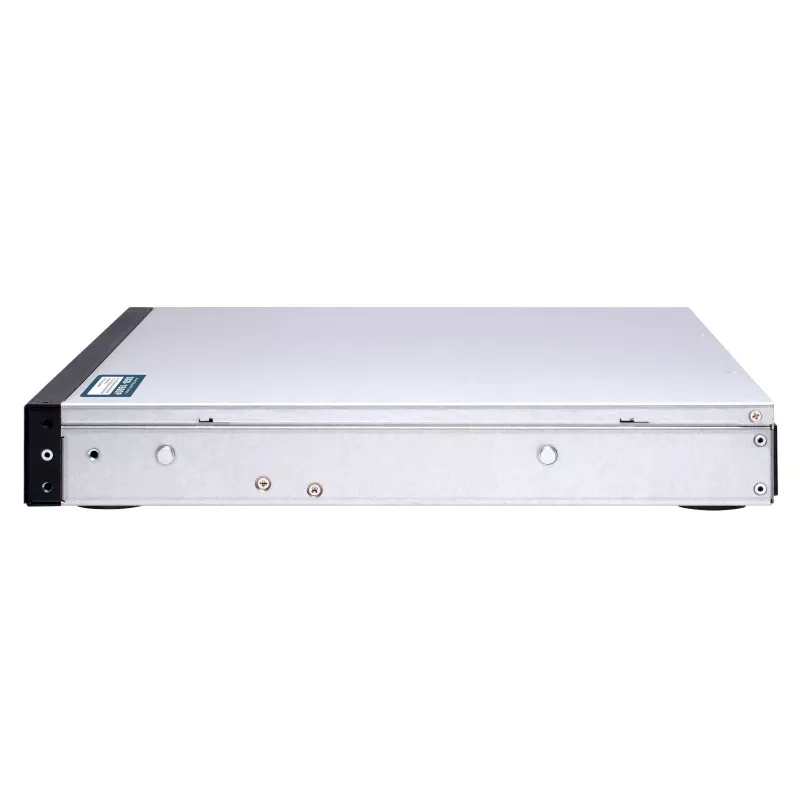

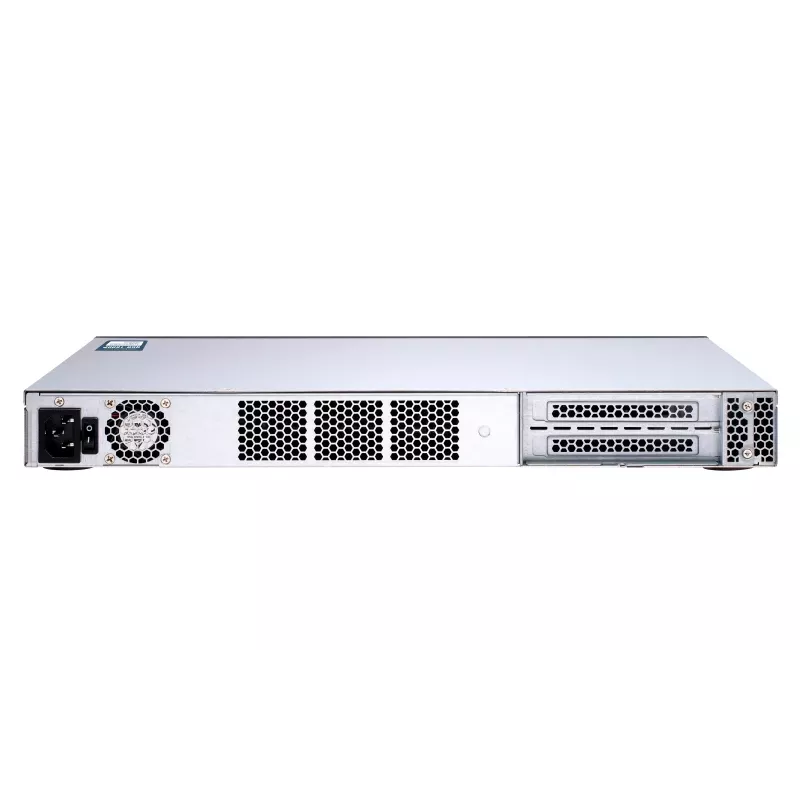

Name: QNAP QGD-1600P Gerido Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Preto, Cinzento
Brand: QNAP
SKU: 121038
Price: 770.60 EUR
Availability: InStock

QNAP QGD-1600P Gerido Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Preto, Cinzento

770,60 €

Qtd.

Adicionar ao carrinho

Adicionar à lista de desejos Comparar este produto

Stock 14 Código 121038 Marca QNAP Modelo QGD-1600P-4G Garantia 3 anos

Envios e devoluções

Entrega prevista quarta-feira, 4 de novembro

Receberá atualizações através do nosso sistema de seguimento detalhado

Opções de pagamento

Cartão bancárioVisaMastercardPayPalApple PayGoogle PayTransferência bancária

Vista rápida

Teltonika TSW200 - Switch - 8 portas

93,63 €

Sem IVA:76,13 €

Adicionar ao carrinho Adicionar à lista de desejos Comparar este produto

Vista rápida

Dahua SMG1005 switch de rede não gerido, 5x Ethernet 2,5G, Multi-Gigabit

64,18 €

Sem IVA:52,18 €

Adicionar ao carrinho Adicionar à lista de desejos Comparar este produto

Vista rápida

Switch gerido HPE Aruba Networking CX 6200F 24G PoE 4SFP+ 370W

2 860,34 €

Sem IVA:2 325,48 €

Adicionar ao carrinho Adicionar à lista de desejos Comparar este produto

Vista rápida

Switch não gerido Intellinet 16 Portas Gigabit Ethernet PoE+ 370W

378,15 €

Sem IVA:307,44 €

Adicionar ao carrinho Adicionar à lista de desejos Comparar este produto

Vista rápida

Switch gerido GS-2412 Lancom L2+ Gigabit Ethernet 10 portas

395,33 €

Sem IVA:321,41 €

Adicionar ao carrinho Adicionar à lista de desejos Comparar este produto

Vista rápida

Switch gerido LevelOne Hilbert 28 portas Industrial Gigabit Smart Lite

478,84 €

Sem IVA:389,30 €

Adicionar ao carrinho Adicionar à lista de desejos Comparar este produto

Vista rápida

HPE - Série Aruba - Switch - 2930M 48G 1-Slot - L3 - gerido - 44 x 10/100/1000 + 4 x Combo Gigabit-SFP para montagem em rack

4 051,23 €

Sem IVA:3 293,68 €

Adicionar ao carrinho Adicionar à lista de desejos Comparar este produto

Vista rápida

Switch PoE+ Gigabit Ethernet 8 portas Intellinet, 8 x portas PoE, IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE), Endspan, Desktop, caixa

167,26 €

Sem IVA:135,99 €

Adicionar ao carrinho Adicionar à lista de desejos Comparar este produto

Vista rápida

Switch HPE Aruba 6200F 48G CL4 4SFP+740W

4 554,24 €

Sem IVA:3 702,64 €

Adicionar ao carrinho Adicionar à lista de desejos Comparar este produto

Vista rápida

Cisco Business 220 CBS220-24P-4X switch Smart Managed L2, 24x 10/100/1000 PoE+ (195 W), 4x uplink 10G SFP+, montável em rack

579,30 €

Sem IVA:470,98 €

Adicionar ao carrinho Adicionar à lista de desejos Comparar este produto

QNAP’s QGD-1600P is the world’s first PoE managed switch that supports Virtual Machines (VMs). It features 4-port 60-watt and 12-port 30-watt Gigabit PoE (with two PoE/SFP Combo ports) for highly flexible networking environment deployment. With a dual-CPU design, the QGD-1600P provides both Layer 2 management functions for VM and QTS applications. The QGD-1600P also features Software-Defined Networking (SDN), enabling it to function as a NAS, NVR, router, firewall and AP controller for IP surveillance, network security, storage expansion, and wireless LAN management applications. Therefore, the Guardian series offers SMBs a cost-optimized and centrally managed LAN deployment solution.

The QGD-1600P is a hybrid PoE switch/NAS that enables NVR, router, and AP controller functions and comes pre-installed with various software to satisfy all SMB networking requirements. The PoE switch can help your business initiate digital transformation by making edge devices intelligent.

High PoE Capability– up to 60W
The QGD-1600P is compliant with the latest IEEE 802.3bt PoE++ and IEEE 802.3at PoE+ standards, offering 4-port 60-watt and 12-port 30-watt Gigabit PoE capability. The QGD-1600P can supply a total power budget of 370 watts to meet the demands of many high-power devices (PDs), such as IP cameras, wireless APs, IP phones, LED lights, and digital signage.

Intelligent PoE Functions for Efficient, Centralized PD Management
The QGD-1600P supports intelligent PoE management functions, including scheduling, power supply prioritization, and power enabling and disabling. You can obtain the real-time network connection status and power consumption information of PDs and configure PDs simultaneously to promote an energy-saving PoE network.

Comprehensive Layer 2 Management Features
The QGD-1600P provides comprehensive Layer 2 management features such as VLAN, LACP, and LLDP for you to efficiently control the network through IP grouping and bandwidth management. The QGD-1600P also has powerful security functions, including IGMP Snooping, static MAC, QoS, and Wake-on-LAN, which are suitable for simple networking environments and easy deployment.

Dual-system of Switch & NAS, enabling optimum performance
The QGD-1600P features dual-system design, multi-port capability and expandable architecture, enabling optimum transmission and flexibility to fulfill business needs in performance and application diversification.

The First PoE Switch with VM Support
The QGD-1600P is the world’s first PoE switch with the QTS operating system built in for VM, container, and other cloud applications, enabling diverse networking and storage solutions. In addition to QVR Pro, VJBOD, and other diverse storage applications, the QTS App Center also supports VMs for running many open-source software applications, including MikroTik® RouterOS, OpenWrt, pfSense®, and Ubiquiti® UniFi®. Integrated with public cloud services, the QGD-1600P meets the needs of various applications in IP surveillance, storage expansion, network security, and wireless LAN management. The QGD-1600P dual-CPU design enables you to run the networking management interfaces of QSS (QNAP Switch System) and QTS independently. The QGD-1600P offers a user-friendly web interface, QuNetSwitch, to help SMBs easily deploy a flexible and secure IT infrastructure.
QTS and QSS can work independently without interfering each other to ensure continuous operation. For example, when restarting the QTS, the QSS PoE power supply will not be interrupted; when rebooting the QSS, the VMs on QTS will keep running.

The QGD-1600P and QVR Pro
Make a One-Stop IP Surveillance System
The QGD-1600P works seamlessly with QVR Pro, QNAP’s new surveillance software service, to help build the most cost-effective one-stop IP surveillance system. By integrating PoE, NVR, and NAS storage functions, the QGD-1600P significantly simplifies the surveillance network infrastructure while satisfying the requirements for surveillance deployment, central management, video recording and computing. The QGD-1600P offers 4-port 60-watt and 12-port 30-watt Gigabit PoE to different brands of high-power IP Cameras with the ONVIF standard. Through QVR Pro Surveillance Suite, IT administrators can easily manage cameras, record and play back videos, failover recording tasks, and monitor mobile apps. The QGD-1600P is equipped with an HDMI output to connect an external monitor for real-time surveillance video monitoring.

QGD-1600P + VJBOD: A Highly Scalable Storage Solution
The QGD-1600P supports up to two SATA drives and other hardware-based storage expansion accessories, such as PCIe, USB, SAS expansion cards and RAID Expansion Enclosure (TR-004U) to provide reliable performance. Additionally, you can expand the storage space of the QGD-1600P via QNAP VJBOD. VJBOD allows you to instantly allocate storage space from a remote QNAP NAS as an iSCSI LUN and create storage pools, take snapshots, create clones from snapshots, or index multimedia files in the media library on the QGD-1600P. With the expansion availability of physical units and VJBOD, you can attain the highest possible storage utilization to fulfill volume data storage and backup needs.

QGD-1600P: Enhance Security with an Integrated Virtual Router and Virtual Firewall
The QGD-1600P can be easily transformed into a security router with a firewall via virtual router and virtual firewall software by installing MikroTik RouterOS and OpenWrt. You can flexibly configure Layer 3 routing functions and create site-to-site VPN tunnels between headquarters and branch offices while securing enterprise network data transmissions. The virtual firewall software pfSense helps enterprises separate or protect local networks and apply multiple security policies.

The QGD-1600P Creates a Wireless AP Controller With UniFi® AP
The QGD-1600P offers 4-port 60-watt and 12-port 30-watt Gigabit PoE for various types of high-power PoE wireless APs. Adopting PoE and VM technology to support PoE wireless APs and the Ubiquiti wireless LAN management software UniFi, the QGD-1600P becomes a hardware-based and software-based wireless AP controller. The QGD-1600P enables not only data transmission and PoE management over wireless APs, but also central management over wired and wireless networking devices in offices, hotels, retail stores, or other small-to-medium-sized networks, greatly promoting the effectiveness of network management and reducing costs.

QuNetSwitch: User-Friendly Switch Management Software
Aside from QNAP Switch System (QSS), the QGD-1600P also offers QuNetSwitch (via QTS), a user-friendly web interface networking management software application to help IT administrators efficiently control Layer 2 management and PoE networks. Additionally, the overview dashboard and graphical statistics analysis area displays all the information about the switch and PDs at a glance, making centralized management of over--powered devices intuitive and easy for administrators.

QNAP QGD-1600P. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 14, USB 2.0 ports quantity: 2. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Destaques principais

QGD-1600P is compliant with the latest IEEE 802.3bt PoE++ and IEEE 802.3at PoE+ standards, and offers 4-port 60-watt and 12-port 30-watt Gigabit PoE capability. QGD-1600P can supply a total power budget of 370 watts to meet the demands of high-powered devices (PDs)
QGD-1600P provides comprehensive Layer 2 management features, such as VLAN, LACP, QoS IGMP Snooping, and Wake-on-LAN for IT administrators to efficiently control the network bandwidth and enhance security via the user-friendly switch management web interface
QuNetSwitch offers a user-friendly web interface to help IT administrators efficiently control Layer 2 and PoE networks. Additionally, the overview dashboard and graphical statistics analysis show IT administrators all switch information and pored devices at a glance, making central management of high-power devices intuitive and easy
Supports up to two SATA drives
PCIe expandability allows for 10GbE network cards, QM2 dual-port M.2 SSD/10GbE cards, USB 3.1 Gen 2 (10Gbps) cards, or Wireless Adapters
Host containerized applications and virtual machines with various operating systems. Flexibly install virtual router, firewall, or wireless LAN management software for various networking management applications
Managed Web-based management
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 14
10BASE-T, 100BASE-TX, 1000BASE-T
MAC address table: 8000 entries Switching capacity: 32 Gbit/s
Access Control List (ACL)
1U Rack mounting
AC Power supply included Power over Ethernet (PoE)

Especificações

Agregação de ligações

Yes

Algoritmos de segurança

256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS

Altura

47.2 mm

Botão de reposição

Yes

Cabos incluídos

AC, LAN (RJ-45)

Capacidade de comutação

32 Gbit/s

Certificação

CE, FCC, VCCI, BSMI RCM, CCC

Classificação de tráfego

Yes

Código do Sistema Harmonizado (HS)

85176990

Compatibilidade com 10G

Compatibilidade com controlo de fluxo

Yes

Compatibilidade com jumbo frames

Yes

Compatibilidade com Quality of Service (QoS)

Yes

Compatibilidade com VLAN

Yes

Compatibilidade eletromagnética

CLASS A, UL62368

Consumo de energia (máx.)

418 W

Cor do produto

Black, Grey

Débito

16000 Mpps

Duplex integral

Yes

Espelhamento de portas

Yes

Ethernet LAN

Yes

Fabricante do processador

Intel

Fonte de alimentação incluída

Yes

Fonte de energia

Formato

Frequência de entrada CA

50 - 60 Hz

Frequência do processador

1800 MHz

Funcionalidades de LAN virtual

Port-based VLAN

Funcionalidades DHCP

DHCP client, DHCP server

Gestão via web

Yes

Guia de início rápido

Yes

Humidade relativa de funcionamento (H-H)

5 - 95%

IGMP snooping

Yes

Indicadores LED

Activity, Fan fail, Link, PoE, Speed

Jumbo frames

9000

Kit de montagem em rack

Yes

Largura

436.2 mm

Limitação de taxa

Yes

Lista de controlo de acesso (ACL)

Yes

Memória flash

4000 MB

Memória interna

4096 MB

Modelo do processador

Intel Celeron J4115

Montagem em rack

Yes

Negociação automática

Yes

Normas de rede

IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Número de portas Ethernet RJ-45 de comutação básica

Número de portas Gigabit Ethernet (cobre)

Número de portas SFP combo

Número de portas USB 2.0

Número de ventoinhas

2 fan(s)

Peso

4.41 kg

Peso da embalagem

5.56 kg

Portas de E/S

1x USB 3.2 Gen 1

Portas Ethernet LAN (RJ-45)

Portas HDMI de empilhamento

Potência total Power over Ethernet (PoE)

360 W

Power over Ethernet (PoE)

Yes

Processador integrado

Yes

Profundidade

326.2 mm

Proteção contra loops

Yes

Ranhuras de expansão

2x PCIe Gen2 (x2)

Tabela de endereços MAC

8000 entries

Tabela de endereços MAC multicast

8000 entries

Tecnologia de cablagem Ethernet de cobre

10BASE-T, 100BASE-TX, 1000BASE-T

Tecnologia de cablagem Ethernet de fibra

1000Base-X

Tecnologia de conectividade

Wired

Temperatura de funcionamento (T-T)

0 - 40 °C

Tensão de entrada CA

100 - 240 V

Tipo de portas Ethernet RJ-45 de comutação básica

Gigabit Ethernet (10/100/1000)

Tipo de ranhura

PCIe

Tipo de switch

Managed

Velocidades de dados Ethernet LAN

1000 Mbit/s

Folheto

Abrir documento

Histórico de preços nos últimos 6 meses

QNAP QGD-1600P Gerido Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Preto, Cinzento

Atual

770,60 €

Mais baixo

749,64 €

Mais alto

855,59 €

Variação 24 h

+9,47 € +1%

Semana

+8,53 € +1%

Mês

+4,41 € +1%

Análises de especialistas

Avaliações independentes da imprensa tecnológica

techpowerup.comcrmaris2020-11-24

Veredicto: The QNAP QGD-1602P retails for $1602.99.

Pontos positivos

High performance in all usage scenarios
Ideal solution for surveillance applications
Combines a strong NAS and managed switch in the same package
Strong PoE capabilities
Quality power supply
Strong cooling system
Fantastic operating systems for both

Pontos negativos

Expensive
Can be noisy under harsh operating conditions
Encryption notably affects network transfers
No 10 GbE ports out of the box (only through PCIe expansion cards)
Long boot time
No btrfs support (but QNAP provides the snapshot feature)
ExFAT su

Leia a avaliação completa em techpowerup.com →
