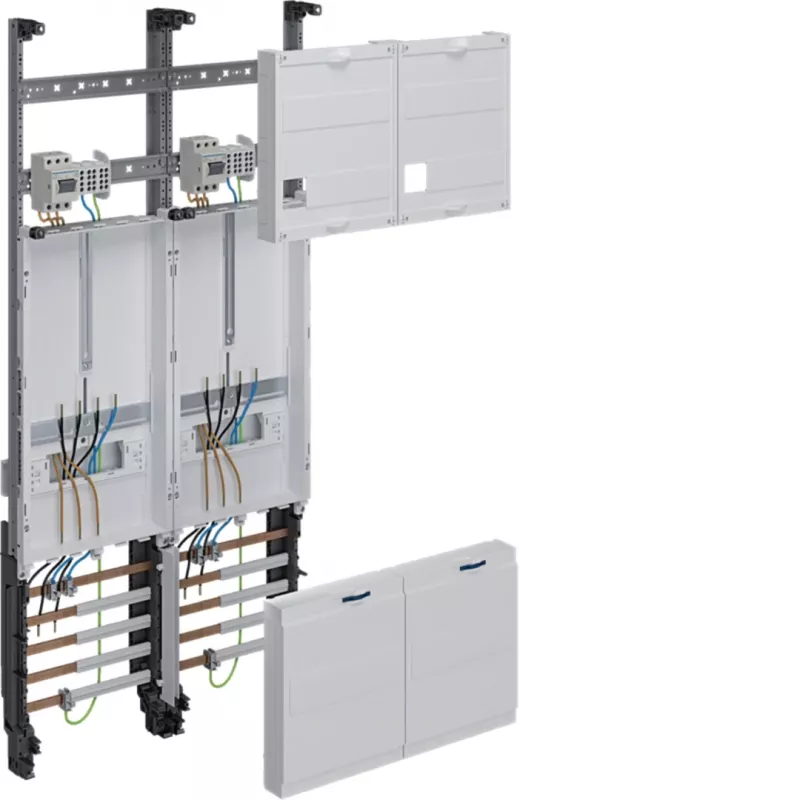

Quadro de contadores completo Hager ZK32P3KT, trifásico, 2 lugares de contador, 1050x500mm, com interruptor principal

The Hager ZK32P3KT is a complete meter panel field engineered for precise, safe energy distribution in residential and commercial settings. Unlike basic enclosures, it arrives pre-wired for meter connections and integrates a main disconnecting function, drastically reducing on-site assembly time and potential wiring errors. The 1050 x 500 mm footprint with 120 mm depth fits standard distribution cabinets, while the galvanized sheet steel construction ensures long-term durability and compliance with DIN VDE standards.

Highlights

• Complete 3-phase meter panel field with two meter positions, ready for immediate installation.
• Integrated main disconnecting function for safe isolation and maintenance.
• Pre-wired for meter connections, simplifying setup and reducing labor costs.
• Galvanized sheet steel enclosure with IP2XC protection class for reliable operation.
• Prepared for a 5-pole busbar system, offering flexibility for future expansions.

In daily use

Designed for distribution cabinets, this panel supports flush or surface mounting and provides five distribution rows with twelve modules per row, accommodating a wide range of circuit breakers and accessories. The screw terminals and 10 mm² main connection cross-section handle up to 63 A nominal current at 230/400 V AC, making it suitable for demanding electrical loads. Whether for a new residential building or a commercial retrofit, the ZK32P3KT streamlines power distribution while maintaining high safety standards.

Full specifications

• Product type: Meter panel complete field
• Number of meter positions: 2
• System type: 3-phase
• Nominal current (main circuit): up to 63 A
• Nominal voltage: 230/400 V AC
• Main connection cross-section: 10 mm²
• Integrated function: main disconnecting function
• Height: 1050 mm
• Width: 500 mm
• Depth: 120 mm
• Material: galvanized sheet steel
• Mounting type: for distribution cabinets (flush or surface mount)
• Number of distribution rows: 5
• Modules per row: 12
• Terminal type: screw terminals
• Busbar system: prepared for 5-pole busbar system
• Application area: residential and commercial electrical installations
• Standards: DIN VDE compliant
• Pre-wiring: yes, for meter connections
• Protection class (panel): IP2XC

Final note

Choose the Hager ZK32P3KT for a robust, pre-wired meter panel solution that saves time and ensures safe, compliant electrical distribution in any project.
