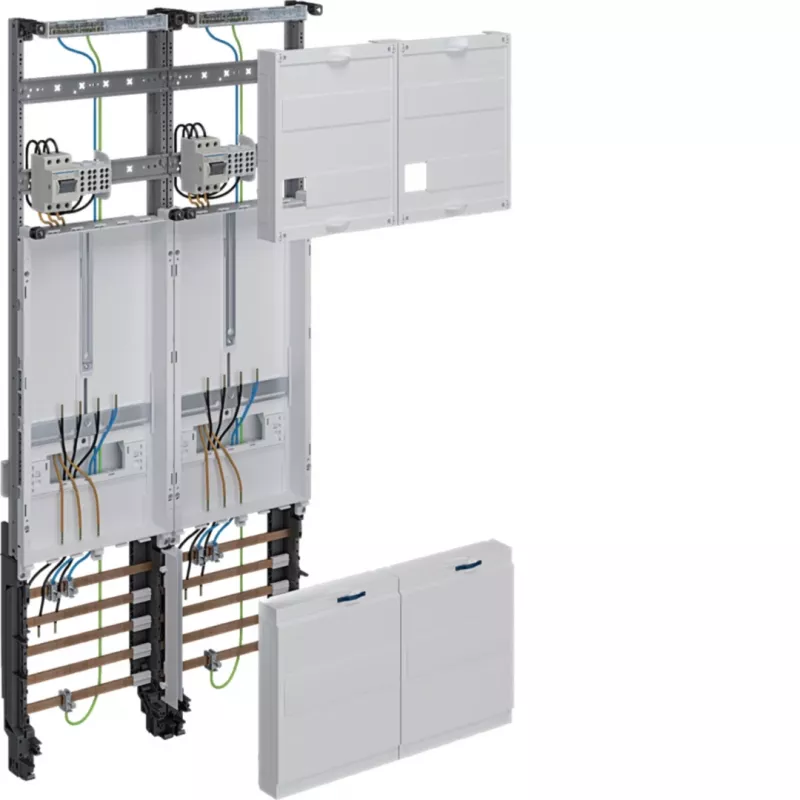

Quadro de contadores completo Hager ZK33X3T 1050mm 2 lugares de contador 2 campos de distribuição NRW SH MV N-Sachsen

The Hager ZK33X3T is a complete meter panel field designed for residential and commercial electrical installations. It features 2 meter positions and 2 distribution fields, providing a total of 168 module units (TE) for flexible circuit configuration. This unit is approved for use in the German states of NRW, SH, MV, and N-Sachsen.

Advantages

Pre-assembled and ready for installation, saving time and labor. The integrated BKE-I (eHZ-compatible) meter mounting ensures compatibility with modern smart meters. The robust sheet steel construction with powder-coated finish in RAL 9010 (Pure White) offers durability and a clean appearance.

Suitable for

• Residential electrical distribution
• Commercial building installations
• Meter cabinet integration in NRW, SH, MV, N-Sachsen regions

Key specifications

• Product Type: Meter Panel Complete Field
• Number of Meter Positions: 2
• Number of Distribution Fields: 2
• Overall Height: 1050 mm
• Overall Width: 500 mm
• Overall Depth: 160 mm
• Meter Mounting Type: BKE-I (eHZ-compatible)
• Main Busbar System: 5-pole, 250 A
• Main Terminal Block: 5-pole, up to 35 mm²
• Rated Voltage: 230/400 V AC
• Regional Approval: NRW, SH, MV, N-Sachsen
• Material: Sheet steel
• Surface Finish: Powder coated
• Color: RAL 9010 (Pure White)
• Module Units per Distribution Field: 7 rows x 12 TE (84 TE)
• Total Module Units: 168 TE
• Protection Class (installed): IP2XC
• Mounting Type: For installation in meter cabinets
• Compliance: VDE, DIN

Recommendations

Ensure compatibility with local utility requirements. Professional installation recommended.
