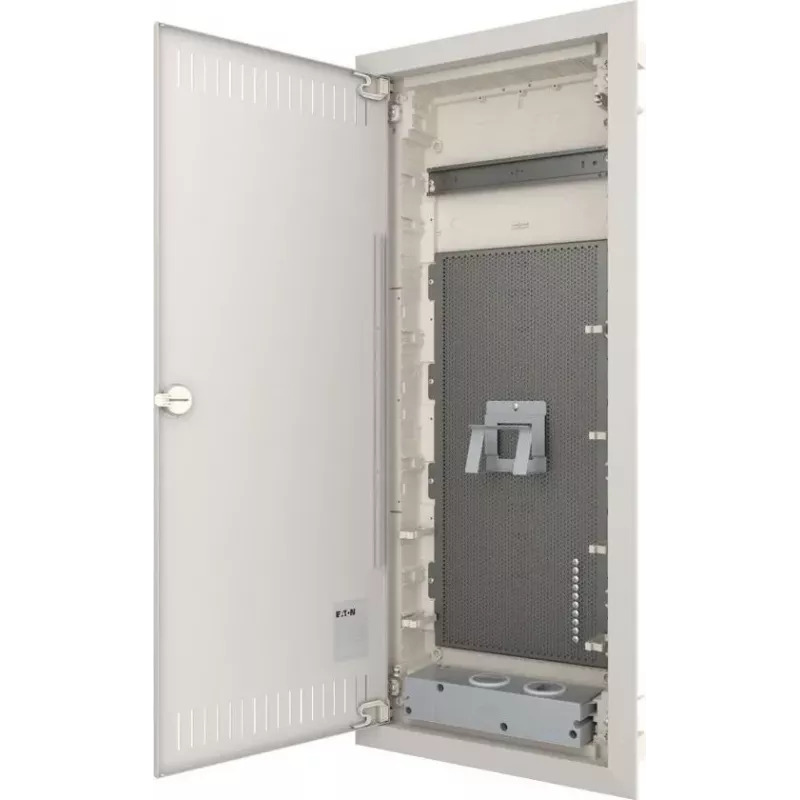

Quadro de distribuição de encastrar Eaton KLV-60UPM-F, 5 filas, 60 módulos, IP30, branco 302418

Managing electrical distribution in residential and commercial buildings requires a reliable enclosure that protects circuit breakers and wiring while blending seamlessly into the wall. The Eaton KLV-60UPM-F flush-mounted distribution board provides a robust solution with five rows and space for up to 60 modules, ensuring ample capacity for modern installations.

Who is it for

This distribution board is ideal for electricians and contractors installing or upgrading electrical panels in homes, offices, and light commercial spaces. It suits projects where a flush-mounted, aesthetically pleasing enclosure is required, with the door available in white to match interior décor.

Main features

• Flush-mounted design for a clean, integrated look
• 5 rows with 12 modules per row, total 60 modules (TE)
• Plastic housing with steel sheet door, white (RAL 9016)
• Rated voltage 400 V AC, rated current 63 A
• IP30 protection class
• Pre-punched cable entries on top and bottom
• Door opening angle 120°
• Includes PE/N screw terminals

Specifications

• Mounting type: Flush-mounted
• Number of rows: 5
• Modules per row: 12
• Total modules: 60
• Protection class: IP30
• Housing material: Plastic
• Door material: Steel sheet
• Door colour: White (RAL 9016)
• Rated voltage: 400 V AC
• Rated current: 63 A
• PE/N terminals: Included (screw terminals)
• Installation depth: 90 mm
• Glow-wire test: 850 °C
• Standards: DIN VDE 0603-1, DIN 43871-1
• Cable entry: Top/bottom, pre-punched
• Door opening angle: 120°
• Locking mechanism: Double-bit lock (optional cylinder lock)

Tips

Ensure the wall cavity depth is at least 90 mm for proper installation. The pre-punched knockouts simplify cable routing, and the optional cylinder lock can enhance security in accessible areas.
