Quadro de distribuição embutido Eaton KLV-60UPP-F, 5 filas, 60 unidades de módulo, Branco 302410

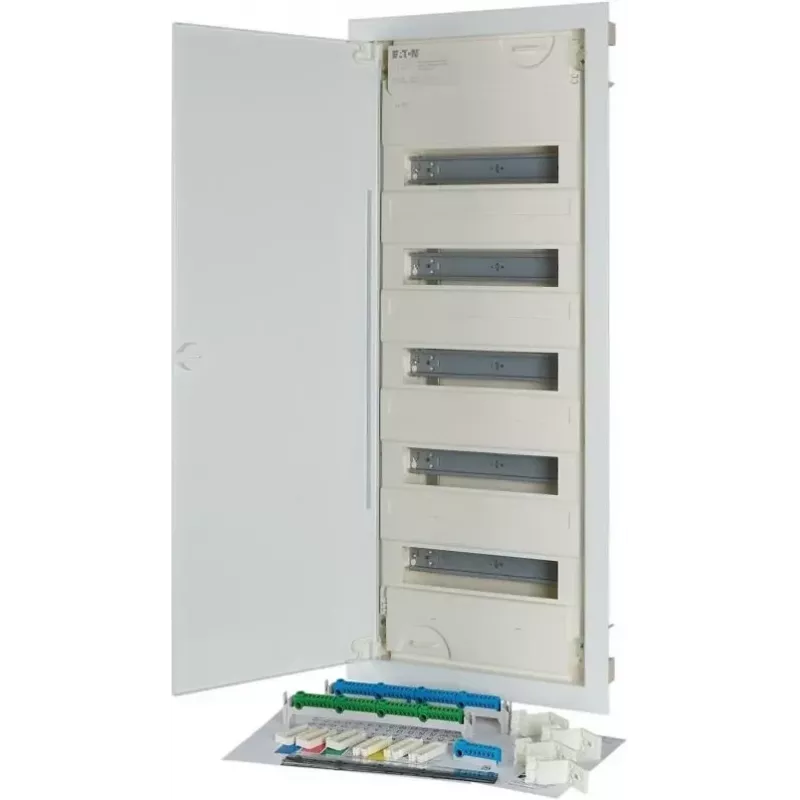

Managing electrical circuits in residential and light commercial buildings requires a distribution board that fits neatly into the wall while providing enough space for all necessary protective devices. The Eaton KLV-60UPP-F is a flush-mounted small distribution board with five rows and a total capacity of 60 module units (12 per row), offering ample room for circuit breakers, residual current devices, and other modular components.

Who is it for

Electricians and installers working on new builds or renovations where a clean, flush-mounted electrical enclosure is needed. It suits projects that demand a balance of capacity and compact installation depth.

Main features

• Flush-mounted design for seamless integration into walls
• Five rows with 12 module units each, total 60 TE
• Plastic (polystyrene) enclosure with steel sheet door
• White finish (RAL 9016) to blend with typical interiors
• Pre-punched cable entries top and bottom for flexible wiring
• Includes 2x 21 screwless N-terminal blocks and 2x 21 screwless PE-terminal blocks
• Rated current 63 A, rated voltage 400 V AC

Specifications

• Mounting type: Flush-mounted
• Number of rows: 5
• Module units per row: 12
• Total module units: 60 TE
• Enclosure material: Plastic (polystyrene)
• Door material: Steel sheet
• Protection class: IP30
• Rated current: 63 A
• Rated voltage: 400 V AC
• Colour: White (RAL 9016)
• Installation depth: 96.5 mm
• Impact resistance: IK05
• Glow wire test: 650 °C
• Standards: DIN VDE 0603-1, DIN 43871

Tips

When planning the installation, consider the pre-punched cable entries for top and bottom entry to simplify wiring. The screwless terminal blocks speed up connection of neutral and protective earth conductors.
