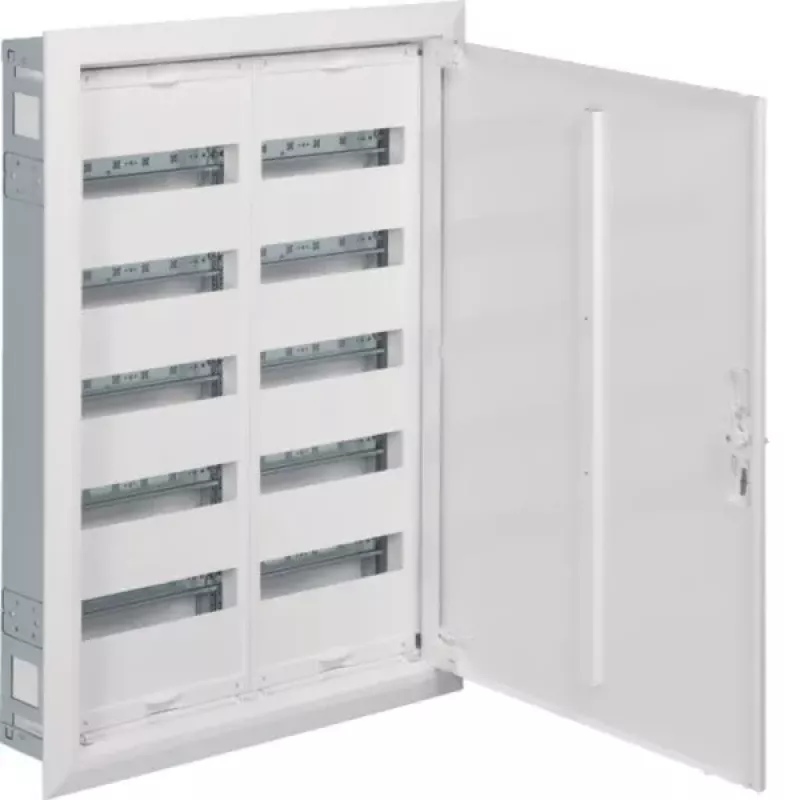

Quadro de distribuição encastrado HAGER FWU52S, 120 módulos, 5 filas, IP30, classe de proteção II, branco

For flush-mounted electrical installations where space is tight and a clean finish is required, the HAGER FWU52S distribution board provides a universal 120-module enclosure with a white steel door and IP30 protection. It meets DIN VDE 0603-1 and DIN 43870-1, making it suitable for residential, commercial, and industrial applications.

Who is it for

Electricians and installers who need a reliable flush-mounted distribution board with ample space for circuit breakers, residual current devices, and other modular devices. It is ideal for new builds and renovations where a recessed installation is preferred.

Main features

• 120 PLE module capacity across 5 rows for extensive circuit distribution.
• Flush-mounted design with recess dimensions of 925 x 525 x 110 mm.
• IP30 ingress protection and Class II insulation for safe operation.
• Steel sheet enclosure with white RAL 9010 door for a neutral appearance.
• Includes N/PE terminal blocks and universal mounting plate with DIN rails.
• Rated voltage 400 V AC and rated current 125 A for robust power handling.

Specifications

• Mounting type: Flush-mounted
• Number of module units (PLE): 120
• Number of rows: 5
• Ingress protection: IP30
• Protection class: Class II
• Enclosure material: Steel sheet
• Door type: Steel door
• Colour: White (RAL 9010)
• Outer dimensions (H x W x D): 950 x 550 x 140 mm
• Recess dimensions (H x W x D): 925 x 525 x 110 mm
• Rated voltage: 400 V AC
• Rated current: 125 A
• Standards: DIN VDE 0603-1, DIN 43870-1
• Terminal blocks: N/PE terminals included
• Internal configuration: Universal mounting plate with DIN rails

Tips

Ensure the wall cavity matches the recess dimensions before installation. Use appropriate cable glands to maintain the IP30 rating. The white door can be painted to match surrounding décor if needed.
