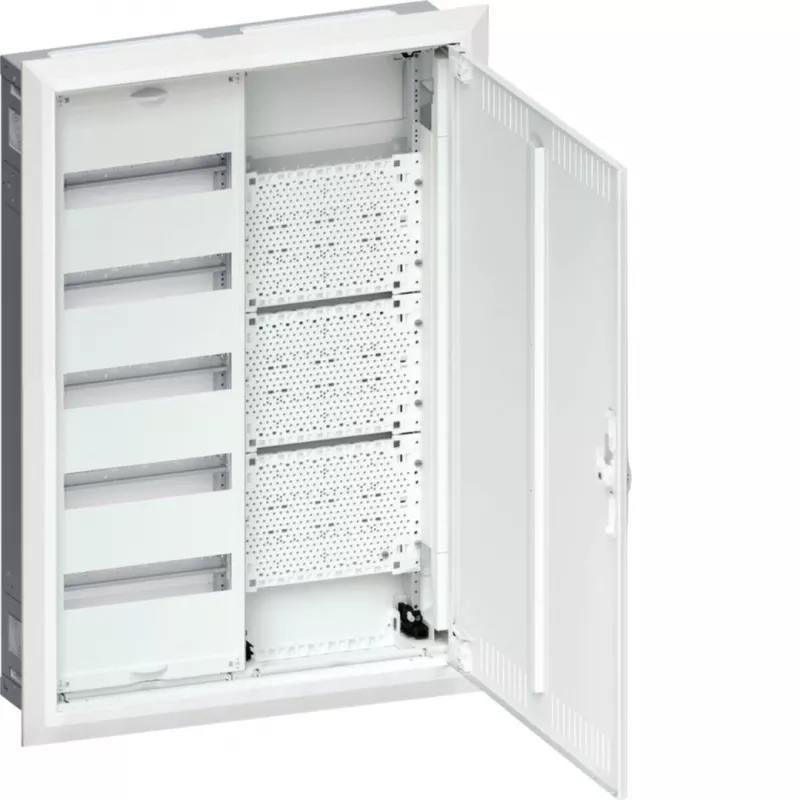

Quadro de distribuição HAGER FWU52K1 encastrar, 60 PLE, 3 filas, IP30, classe de proteção II, branco

Planning a flush-mounted electrical installation with multimedia cabling often means juggling separate enclosures and awkward cable routing. The HAGER FWU52K1 Feldverteiler UP60PLE+Multimedia solves this by combining a 60 PLE distribution board with an integrated multimedia field in one compact, flush-mounted unit. Its pre-punched cable entries and removable DIN rails simplify installation, while the lockable steel door keeps connections secure.

Who is it for

Electricians and installers working on residential or commercial projects that require a neat, space-saving flush-mounted distribution solution with provision for both power and data cabling.

Main features

• Flush-mounted design for clean integration into walls
• 60 PLE capacity across 3 rows for modular devices
• Integrated multimedia field with perforated mounting plate
• IP30 protection and Class II double insulation
• Lockable opaque steel door, white RAL 9010 finish
• Pre-punched top/bottom cable entries and removable, height-adjustable DIN rails

Specifications

• Mounting type: Flush-mounted
• Number of module units (PLE): 60
• Number of rows: 3
• Ingress protection: IP30
• Protection class: Class II
• Housing material: Steel sheet
• Door material: Steel sheet
• Colour: White (RAL 9010)
• Niche dimensions (H x W x D): 750 x 550 x 110 mm
• Outer dimensions (H x W x D): 770 x 570 x 120 mm
• Rated voltage: 400 V AC
• Rated current: up to 63 A
• Standards: DIN VDE 0603-1, DIN 43870-1, EN 61439-3

Tips

Check the niche dimensions carefully before cutting the wall opening. The removable DIN rails can be adjusted to accommodate deeper devices, and the pre-punched entries reduce drilling time.
