Quadro elétrico EMITER ligado AC hermético IP65 com dispositivo de proteção contra sobretensões AC Noark tipo 2, 32A trifásico, RCD tipo A 40A/300mA

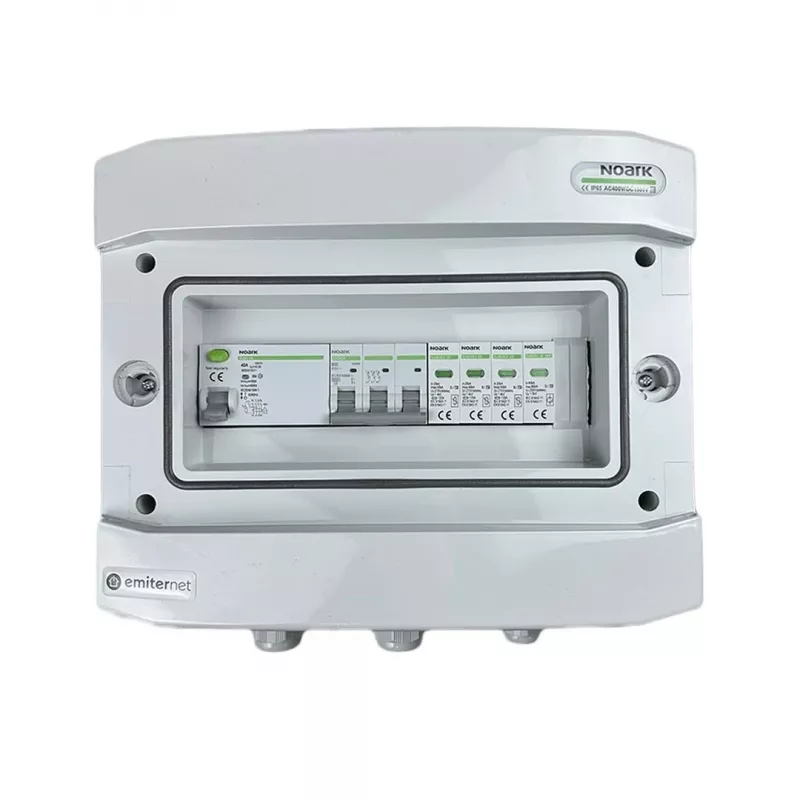

The EMITER EM-299N_AC is a pre-wired AC switchgear enclosure designed for reliable protection and control in electrical systems. This hermetic IP65 rated unit integrates a surge protective device (SPD) Type 2 and a residual current device (RCD) Type A, making it ideal for photovoltaic, industrial, and commercial applications. With a rated current of 32A and 3-phase operation, it ensures safe and efficient power distribution.

Advantages

This switchgear enclosure offers robust protection against overvoltages and earth faults, thanks to the integrated Noark Type 2 SPD and 40A/300mA RCD. The IP65 rating provides dust-tight and water-jet protection, suitable for outdoor or harsh environments. The UV-resistant polycarbonate housing ensures long-term durability, while the surface mount design simplifies installation.

Suitable for

• AC electrical systems in photovoltaic installations
• Industrial power distribution
• Commercial building electrical panels
• Outdoor electrical enclosures requiring IP65 protection

Key specifications

• Product Type: Pre-wired AC Switchgear Enclosure
• Ingress Protection: IP65
• Rated Current: 32 A
• Number of Phases: 3-Phase
• Nominal Voltage: 400 V AC (L-L) / 230 V AC (L-N)
• Frequency: 50/60 Hz
• SPD Type: Type 2
• RCD Type: Type A
• RCD Rated Current: 40 A
• RCD Sensitivity: 300 mA
• Enclosure Material: UV-resistant Polycarbonate
• Mounting: Surface Mount
• Terminal Type: Screw Terminals
• Standards: IEC/EN 61643-11 (SPD), IEC/EN 61008-1 (RCD)
• Operating Temperature: -25°C to +55°C

Recommendations

Ensure proper installation by a qualified electrician. Verify system voltage and current compatibility before use. For outdoor installations, confirm that cable glands are appropriately sealed to maintain IP65 integrity.
