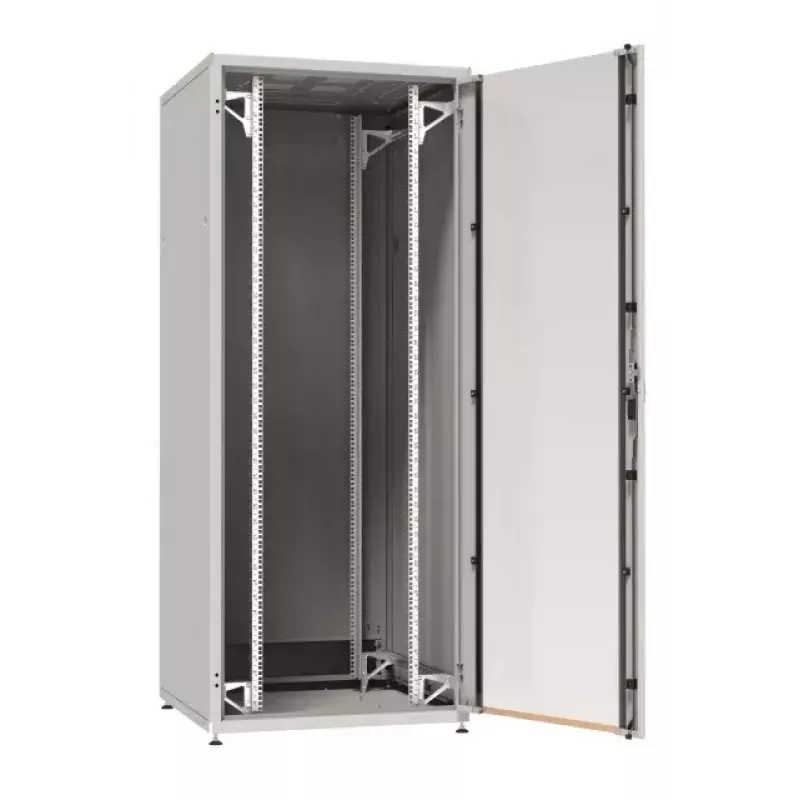

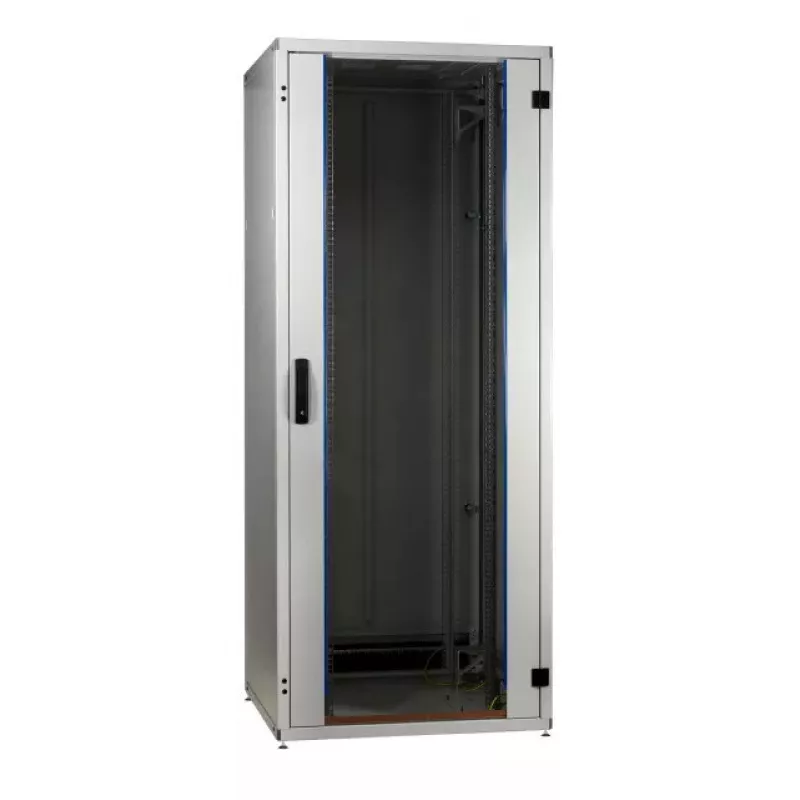

Rack autónomo EFB Elektronik PRO-4288GR.G1SV

The EFB Elektronik PRO-4288GR.G1SV is a 42U freestanding rack engineered for indoor data center and server room applications. With a robust steel construction and a maximum static load capacity of 1000 kg, the rack supports heavy equipment installations while maintaining stability. The unit is finished in grey and carries an IP20 protection rating, providing reliable protection suitable for controlled indoor environments. Its 19" mounting profile, 800 mm width and depth, and 1963 mm height offer standard compatibility with servers, switches, PDUs and other rack-mount components.

Advantages

The rack combines high load capacity and standard 19" mounting to accommodate a wide range of equipment, enabling dense and organized installations. Its freestanding design and 42U height provide ample vertical space while the 800 mm depth allows for cable management and rear-mounted power equipment. IP20 protection ensures basic protection against solid objects in indoor settings, and the grey finish offers a professional appearance that integrates with typical data center interiors.

Suitable for

• Server rooms and small to medium data centers
• Network cabinets for switches, routers and patch panels
• Mounting of PDUs, UPS modules and power distribution equipment
• Telecommunications equipment and structured cabling enclosures

Key specifications

• Rack capacity: 42U
• Maximum static load capacity: 1000 kg
• Protection rating: IP20 (indoor use)
• Height: 1963 mm
• Depth: 800 mm
• Width: 800 mm
• Mounting size: 19"
• Colour: Grey

How to use

Position the freestanding rack on a level floor capable of supporting the combined weight of the rack and installed equipment. Install server rails and mountable accessories in the 19" mounting profile before loading heavy devices to ensure safe and even weight distribution. Route cables through designated openings and manage airflow by placing active equipment to allow front-to-back ventilation. Secure doors and panels as required and verify that the room meets the environmental needs for temperature and humidity appropriate for IT equipment.

Recommendations

For safe and reliable operation, distribute heavy equipment across multiple rack units and keep the heaviest devices at lower positions to improve stability. Use compatible cable management accessories and monitor load to avoid exceeding the 1000 kg maximum. Reserve IP20-rated racks for controlled indoor environments and avoid exposure to moisture or dust levels beyond the specified protection class.
