Rack autónomo ROLINE Pro 36U 600x1000 cinzento Plexiglas

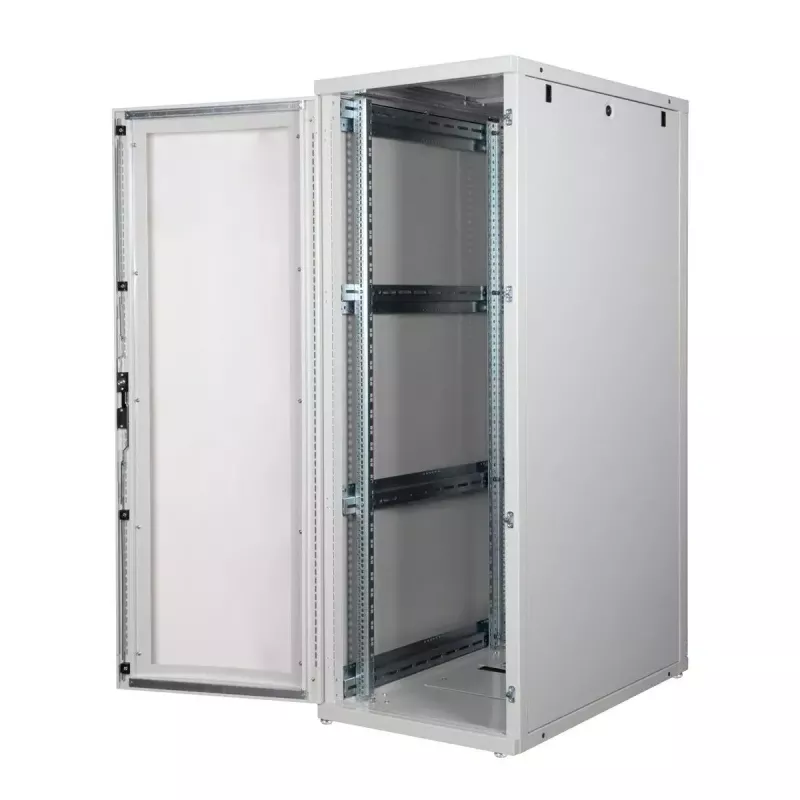

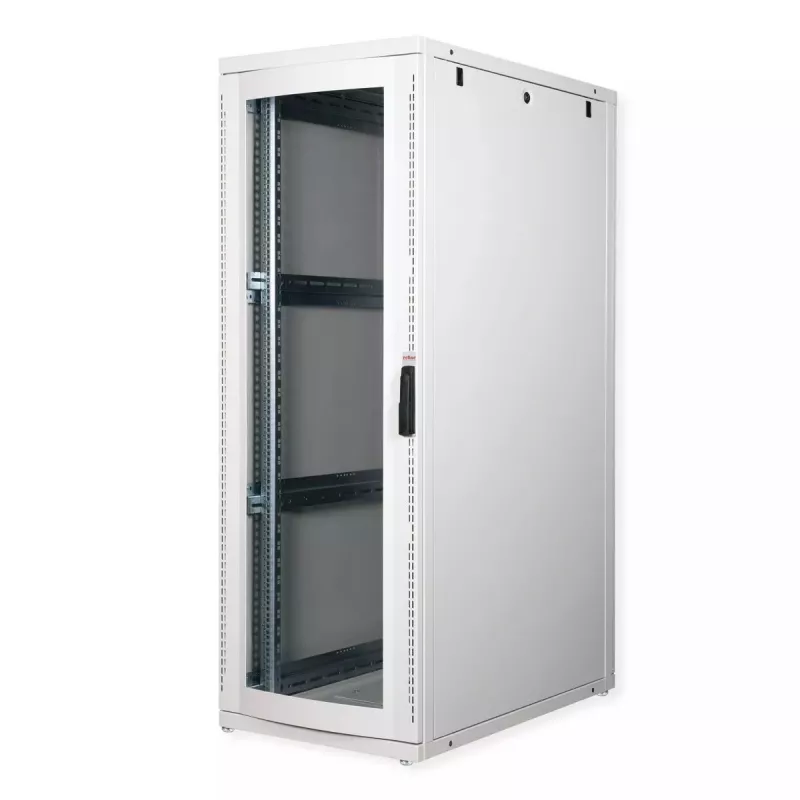

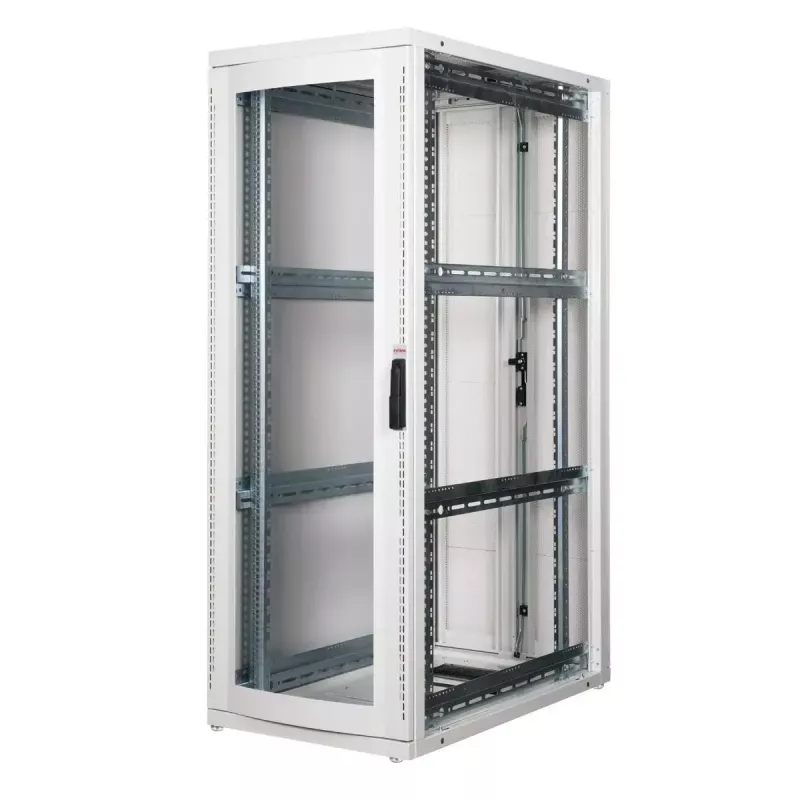

The ROLINE Pro 36U 600x1000 freestanding rack is a 19-inch server enclosure designed for flexible network cabling and secure equipment mounting. It supports up to 36U of rack space, has a maximum load capacity of 1000 kg and an IP20 protection rating. The cabinet features perforated front and rear doors for improved airflow, a perforated roof for fan module installation, inlet openings with brushes and foam-sealed slide-in grommets, and modular lockable side panels. Constructed from robust steel with powder-coating in grey (RAL 7035), the rack includes two pairs of galvanised 19" profile rails with front/back U markings and adjustable depth, depth braces and adjustable feet; the overall weight is 88.5 kg.

Advantages

The freestanding ROLINE Pro rack combines a sturdy steel construction with flexible cable entry options and enhanced ventilation through perforated doors and roof. Galvanised, depth-adjustable 19" rails with readable unit markings simplify mounting and positioning of equipment. Modular removable and lockable side panels and interchangeable hinges increase accessibility and serviceability, while a powder-coated finish provides corrosion protection.

Suitable for

• Server and network equipment installation in server rooms and data closets
• Telecommunications, network distribution and patching panels
• Small to medium enterprise IT infrastructure and lab environments
• Environments requiring secure, floor-standing 19" mounting with up to 1000 kg load

Key specifications

• Model: ROLINE Pro 36U 600x1000
• Mounting: 19" rack, 36U usable height
• Dimensions (W x D): 600 x 1000 mm
• Maximum static load: 1000 kg
• Weight: 88.5 kg
• Protection class: IP20
• Material: steel, material thickness up to 2.0 mm; galvanised 19" profile rails

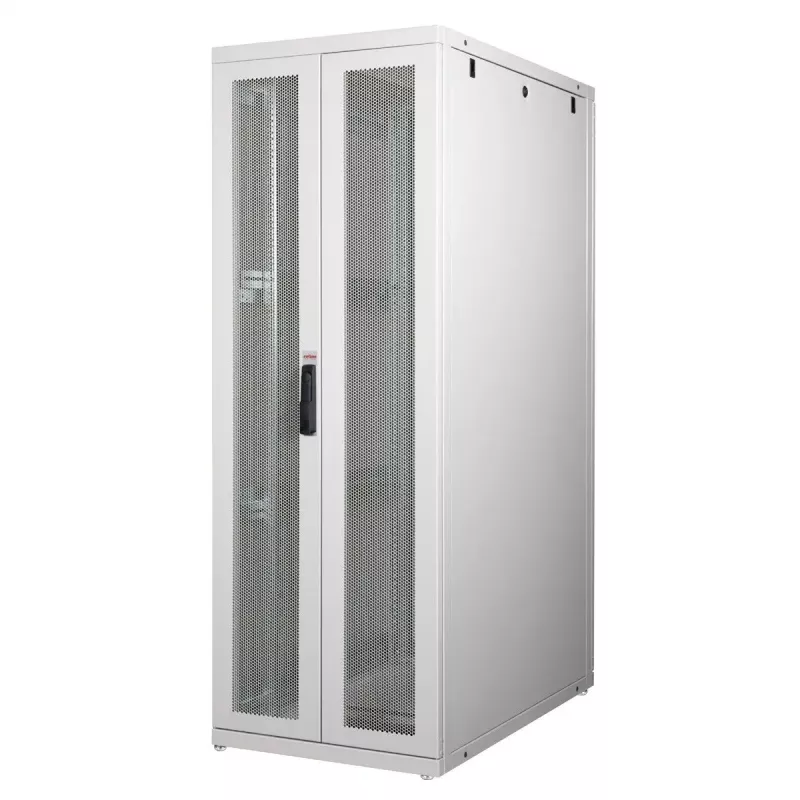

• Doors: perforated single-leaf front door, double-leaf perforated rear door; interchangeable hinges
• Side panels: modular, lockable, removable (horizontally divided from 42U)
• Cable entry: roof and base inlets with brushes, slide-on inlet with foam seal; additional brush inlet in base chassis (from 800 mm width)
• Finish: electrostatically powder-coated, colour grey (RAL 7035)

How to use

Place the rack on a level floor and adjust the feet for stability. Mount equipment to the galvanised 19" profile rails using standard rack screws, adjusting the rail depth as needed and checking the unit markings for correct U positioning. Route network and power cabling through the roof and base brush inlets or the slide-on inlet with foam seal to maintain neat cable management and preserve airflow. Install fans in the perforated roof or use the perforated doors to improve ventilation as required. For maintenance, unlock and remove the modular side panels or swing open doors using the swivel handles.

Recommendations

For safe operation, distribute equipment weight evenly and secure heavy components at the lower U positions. Ensure sufficient airflow by keeping perforated panels unobstructed and consider installing a fan module in the roof for active cooling in high-density configurations. Follow local standards for grounding and electrical installation when installing power distribution units and cable entries.
