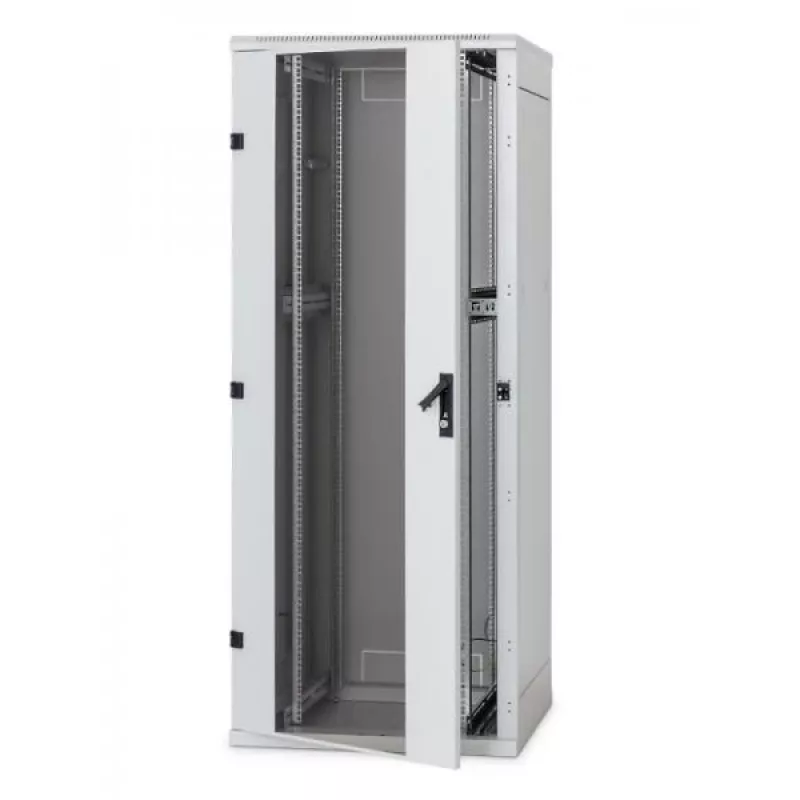

Rack autónomo Triton 19 polegadas Delta S Rack 27U/600x600 vidro cinzento

The Triton 19" Delta S freestanding rack 27U (600x600) in glass grey is a robust steel cabinet designed for data and telecommunication installations where high load capacity and durability are required. The cabinet provides a professional appearance with high-quality workmanship and supports equipment mounting on standard 19" rails; the 600x600 footprint and 27U height suit many server, network and telecommunication deployments.

Advantages

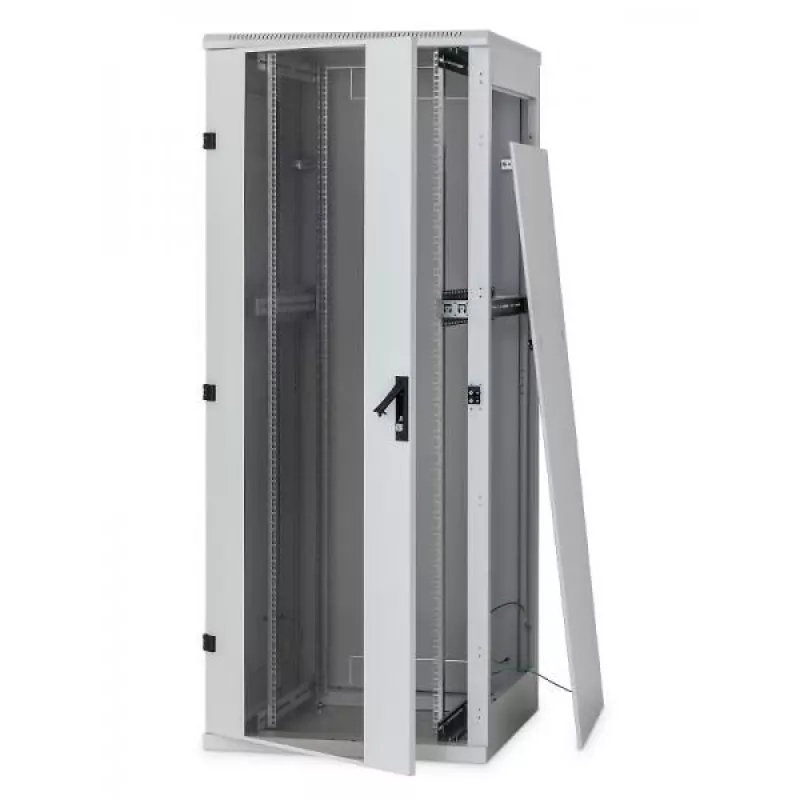

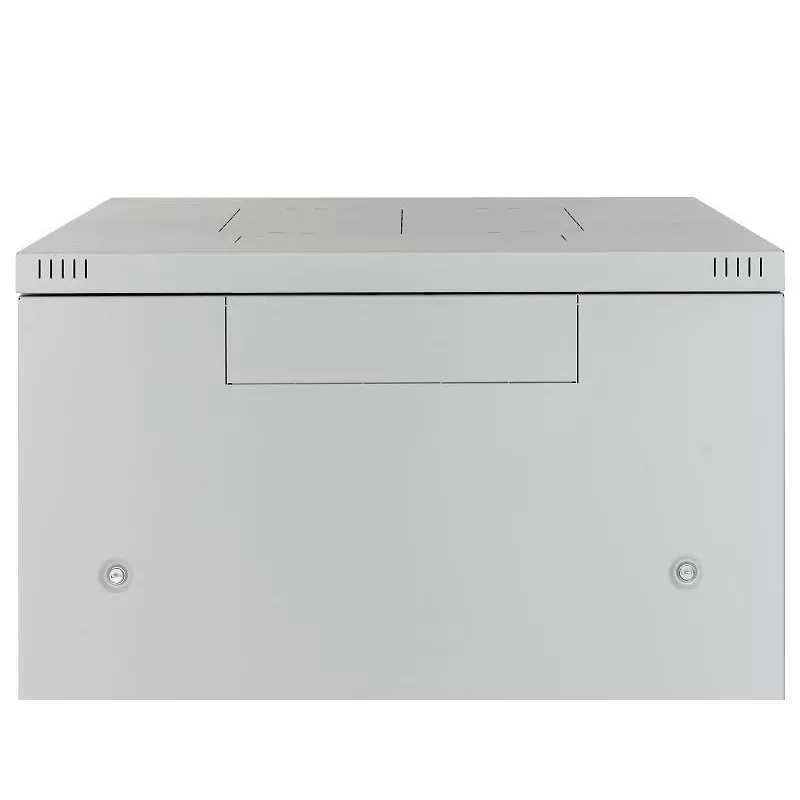

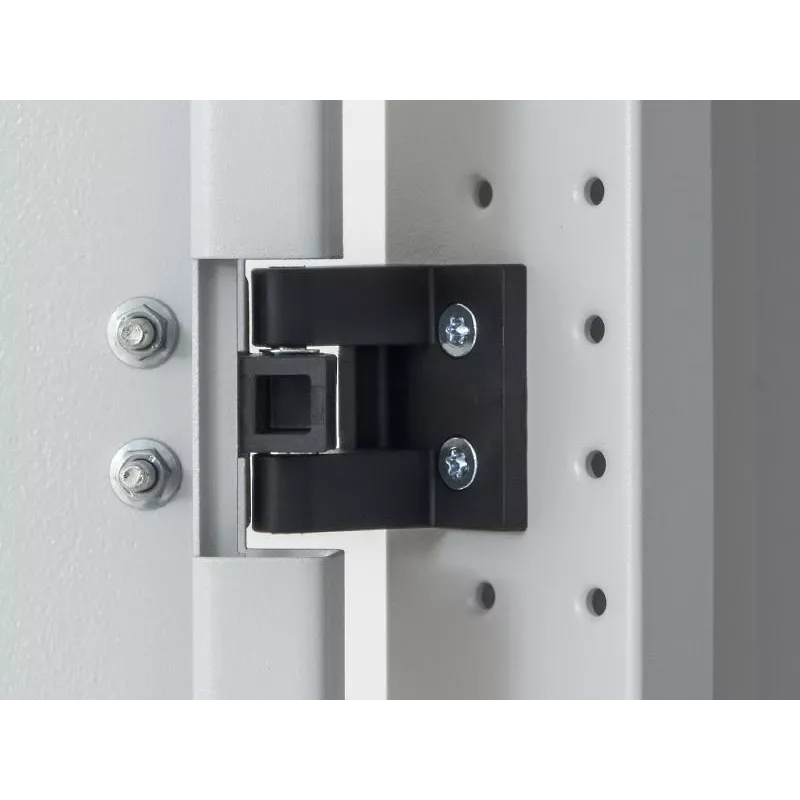

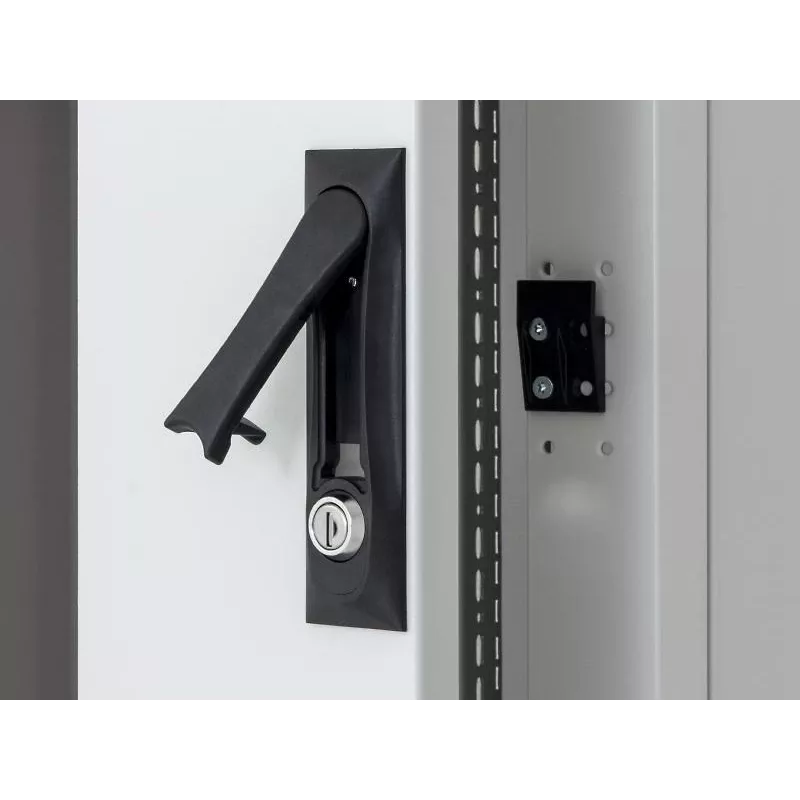

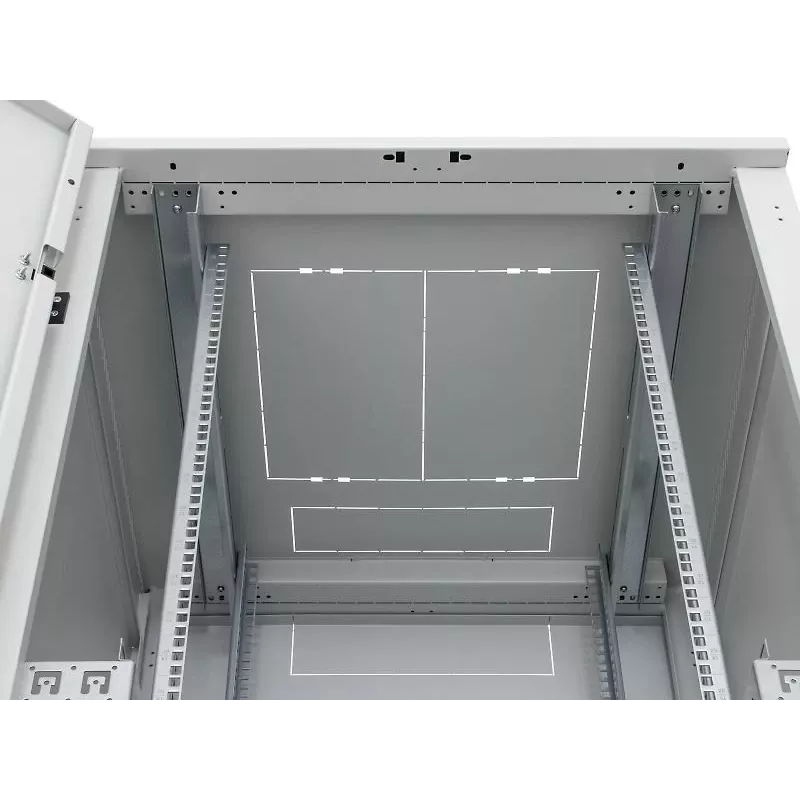

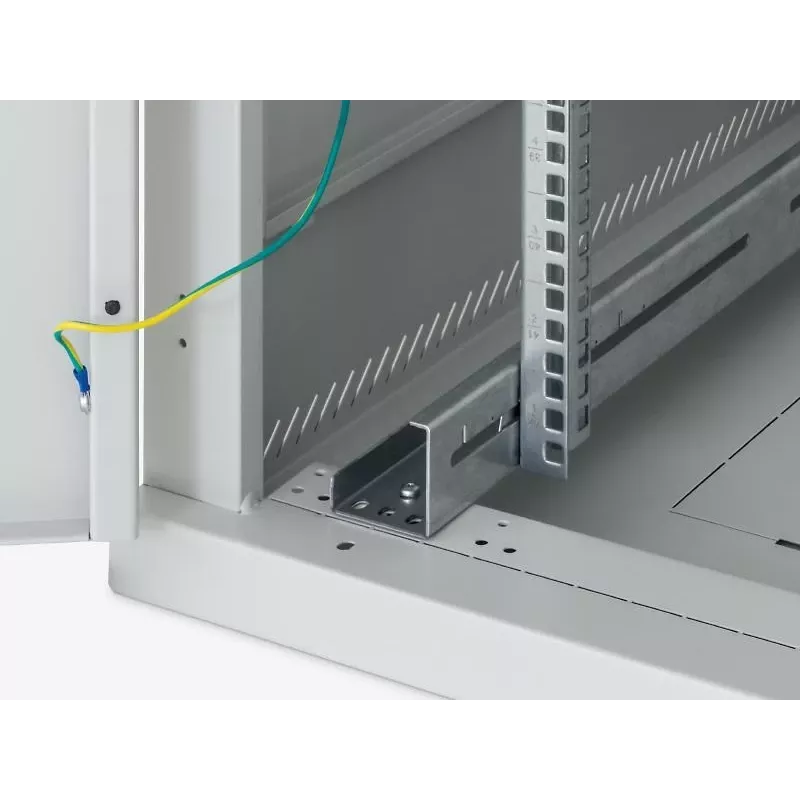

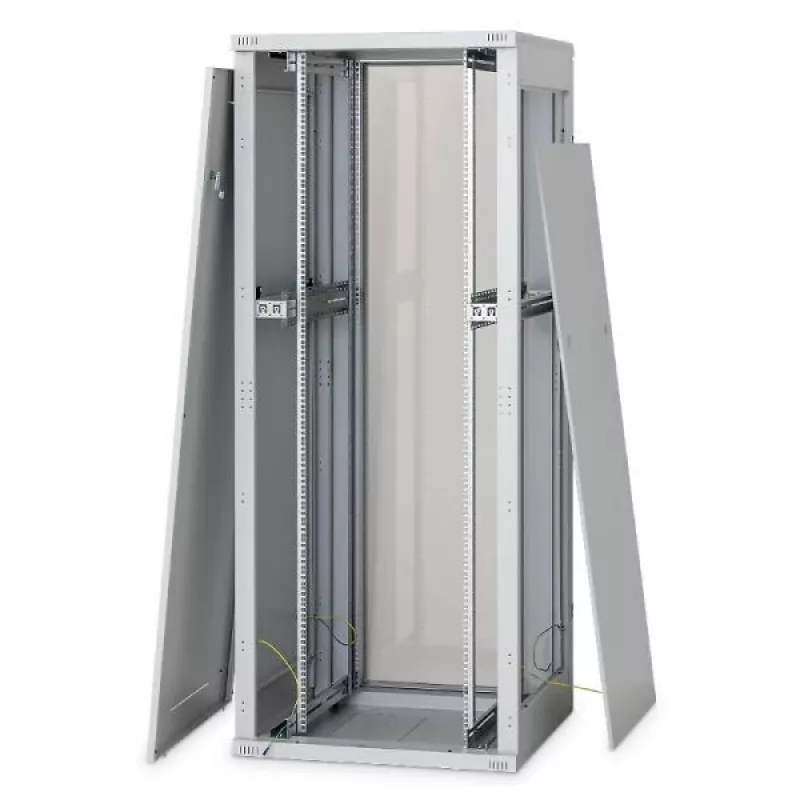

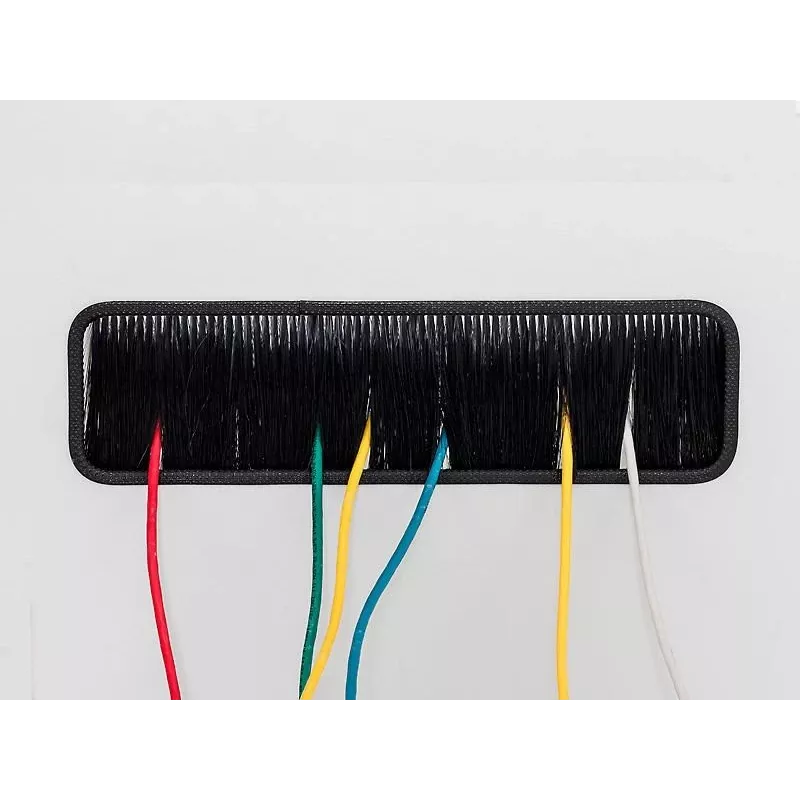

The Delta S cabinet features rigidly fixed sliding rails set at 19" on the cabinet centre line, with options on 800 mm wide versions to install 21" on centre or 19" off-centre to the right or left. It includes a lockable hinged front door (glass, solid steel or perforated as required) with a 180° hinge for easy removal or change of opening direction, removable side and rear panels with key locks, and a larger square cable entry opening (333 cm²) covered by breakout blanking panels. Additional built-in features include adjustable vertical 19" rails, openings for fan units with a 3D top cover, brush strips to reduce dust ingress, adjustable levelling feet, vented top and bottom sections for natural convection, an earthing system and basic mounting hardware supplied.

Suitable for

• Server and network equipment installations requiring 27U capacity
• Telecommunication cabinets in office, server room or data closet environments
• Applications needing robust load-bearing racks (up to recommended limits)
• Environments where secure access and cable management are required

Key specifications

• Model: Triton 19" Delta S rack 27U/600x600 (glass grey)
• Dimensions (U height): 27U
• Footprint: 600 x 600 mm
• Product colour: Grey
• Weight: 51.4 kg
• Material: Steel (freestanding cabinet)
• Rail standard: 19" sliding rails fixed to cabinet shell (options for 800 mm width)
• Cable entry opening (square area): 333 cm²
• Features: lockable hinged front door, removable side/rear panels, fan openings, brush strip, adjustable feet, earthing system

How to use

Place the freestanding Triton Delta S rack on a level surface and adjust the levelling feet before installing equipment. Fit equipment onto the 19" vertical rails, which can be adjusted in depth (and on 800 mm versions across the width) to accommodate different device sizes. Use the designated cable entry points at top, bottom and rear sections and cover unused openings with the supplied breakout blanking panels. Install fan units in the provided base or top openings if active cooling is required; the top fan opening is protected by a 3D cover. Ensure side and rear panels are locked after cabling for security.

Recommendations

For safe installation, verify equipment weight distribution and do not exceed the cabinet's rated load capacity. Use proper earthing and follow local regulations for telecommunications and server installations. For improved airflow, combine the cabinet's natural convective ventilation with appropriate fan units when installing high-density or heat-generating equipment.
