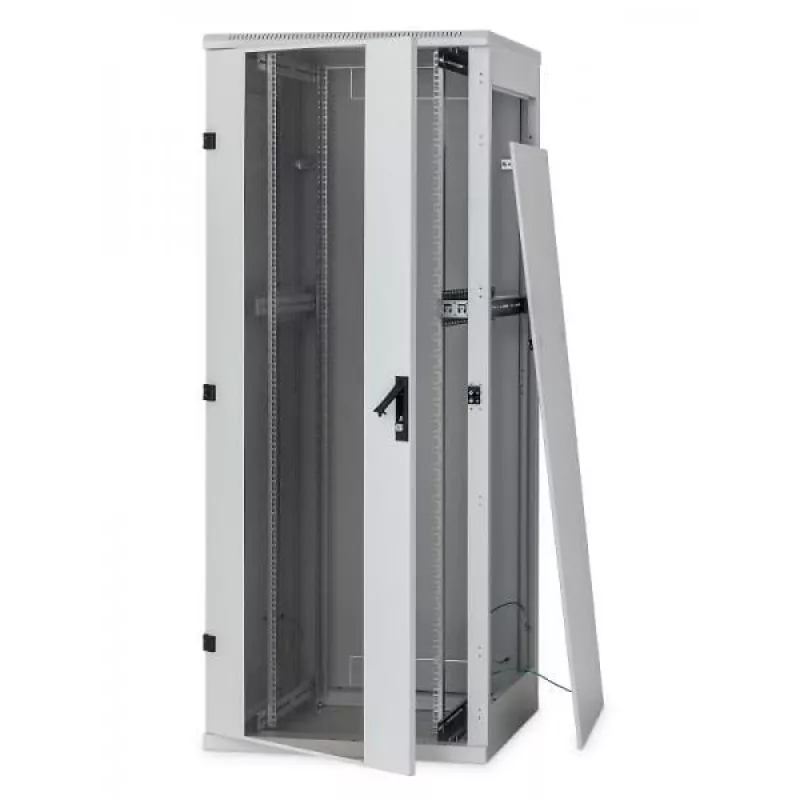

Rack autónomo Triton RMA-15-A66-CAX-N1 15U 800 kg cinzento

The Triton RMA-15-A66-CAX-N1 freestanding rack is a universal cabinet for data and telecommunication equipment with 15U capacity and a maximum load rating of 800 kg. It features a rigid welded frame, perforated skeleton for airflow, adjustable 19" vertical rails and removable side panels and rear cover. The cabinet includes flexible door opening with easily removable doors, Triton handles with optional lock insert compatibility, multiple cable entry points with breakout blanking panels and provisions for fan units and horizontal cable management. Available mounting options include levelling feet (included) and optional castors or base with reinforcing frame.

Advantages

The welded construction and 1.3 mm material rails provide robust mechanical strength while the perforated skeleton and openings for fan units enable effective passive or active cooling. Adjustable vertical rails and optional flex frame allow versatile mounting of 19", 21" or 23" equipment depths. Removable side panels and rear cover simplify access for installation and maintenance. Breakout-type blanking panels with brush strip or protective fringe edge secure cable entries against dust. The cabinet supports a third (middle) pair of vertical rails for deeper enclosures and offers swing frame and horizontal cable management options for heavy loads.

Suitable for

• Small to medium server and network installations requiring 15U capacity
• Telecommunication racks in offices and comms rooms with up to 800 kg equipment load
• Environments needing modular cable entry and active cooling options

Key specifications

• Model: Triton RMA-15-A66-CAX-N1
• Height: 770 mm (15U)
• Width: 600 mm
• Depth: 600 mm
• Load capacity: up to 800 kg
• Weight: 34.7 kg
• IP rating: IP20
• Colour: Grey

How to use

Position the cabinet on levelling feet or an optional base or castors. Mount the adjustable 19" vertical rails to the required depth or use the flex frame option for 21"/23" spans (800 mm wide models only). Install equipment on the vertical rails and route cables through the breakout blanking panels, sealing openings with the supplied brush strip or protective fringe as needed. For improved cooling, fit Triton fan units into the designated fan door or use the opening covered by a breakout panel to mount fan units externally. Doors and side panels are removable for easier access during installation and maintenance.

Recommendations

For installations with equipment loads above 500 kg, install the horizontal cable management system in the skeleton to reinforce the cabinet. When using the cabinet in dusty environments, seal cable entry openings with the brush strip supplied and consider active cooling via the fan unit openings for optimal thermal performance.
