Rack de parede Lanberg WF11-3306-10B 6U preto capacidade 30 kg

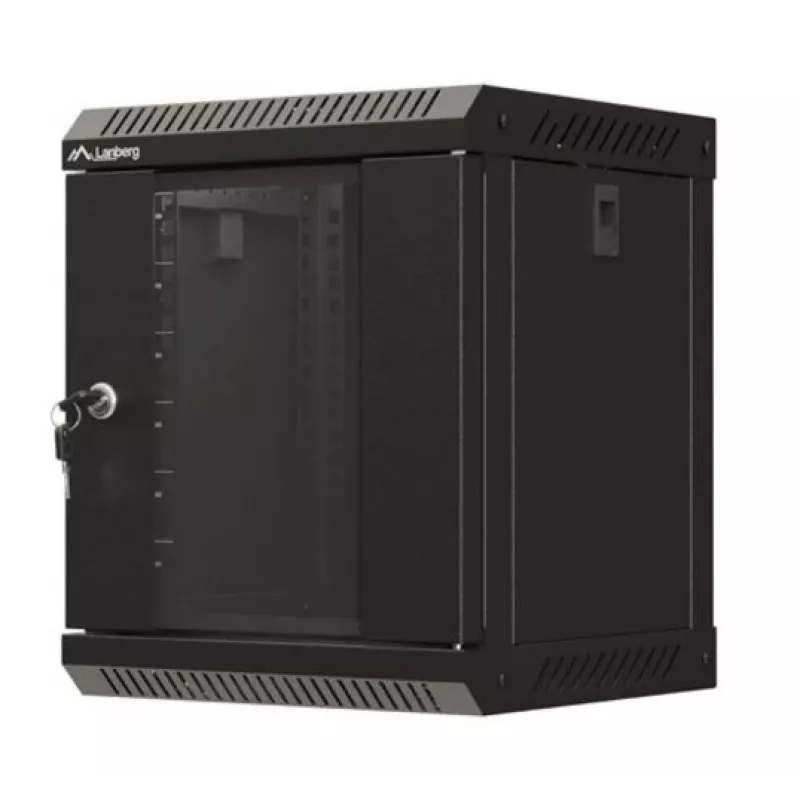

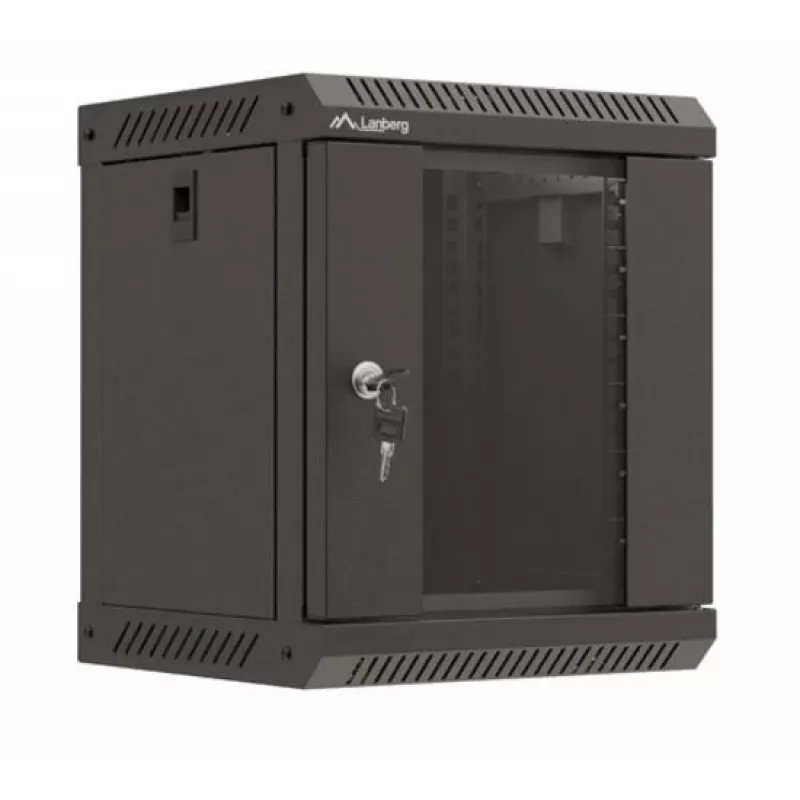

The Lanberg WF11-3306-10B is a 6U 10" wall-mounted rack cabinet designed for compact network installations and secure equipment storage. Constructed from rolled steel and finished in black, this WF11 series cabinet supports up to 30 kg and includes a keyed front lock, removable rear panel and versatile mounting options for home networks, small offices or server closets where space is limited.

Advantages

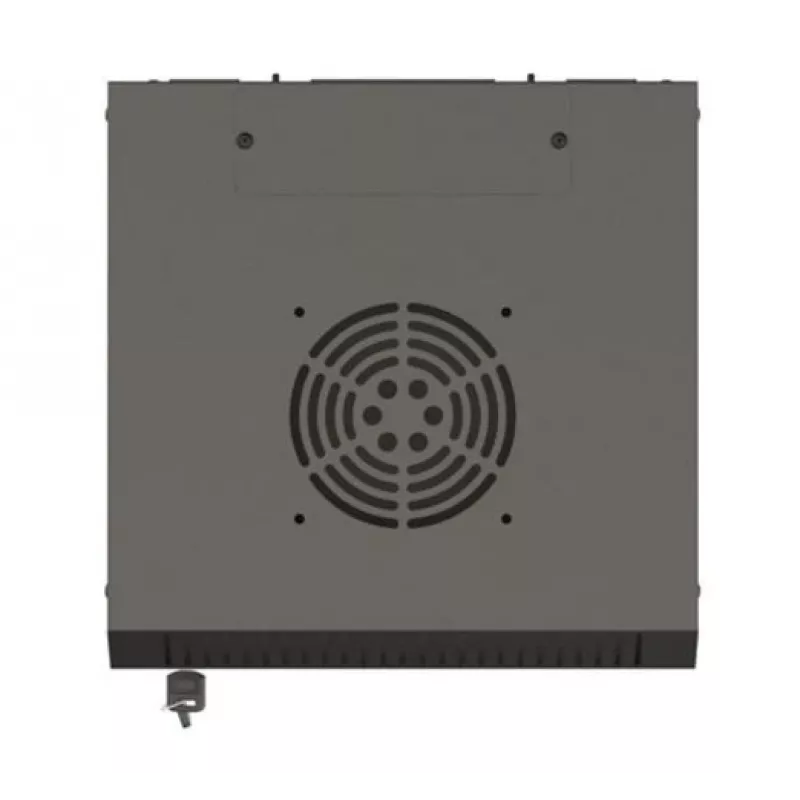

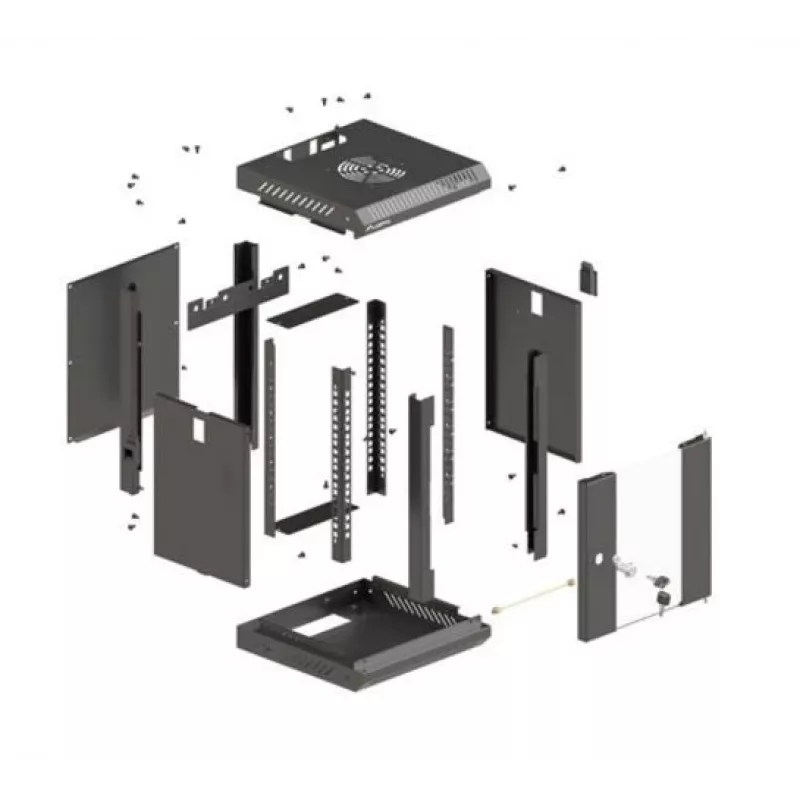

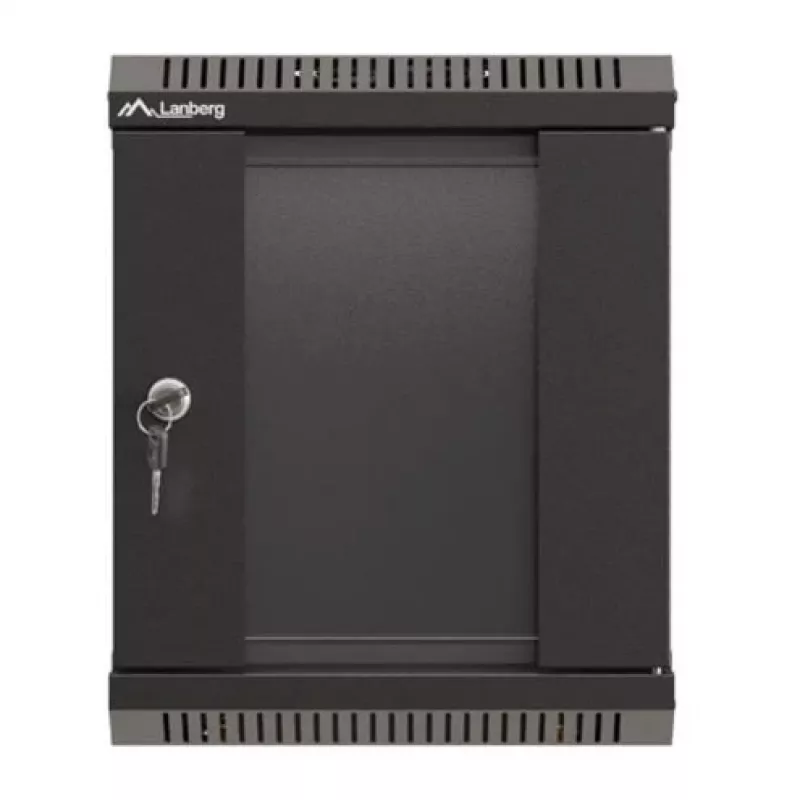

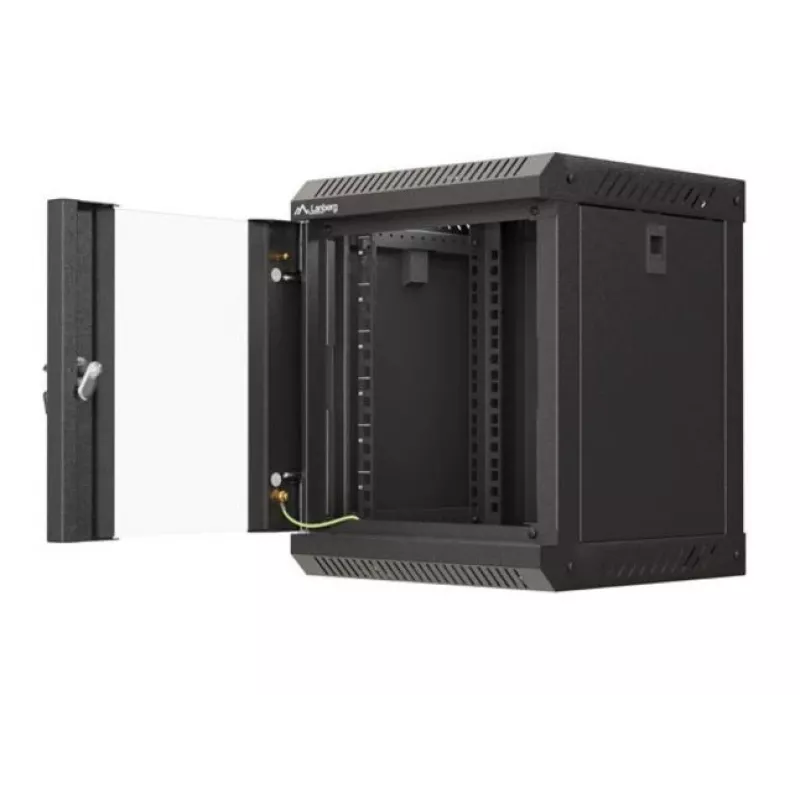

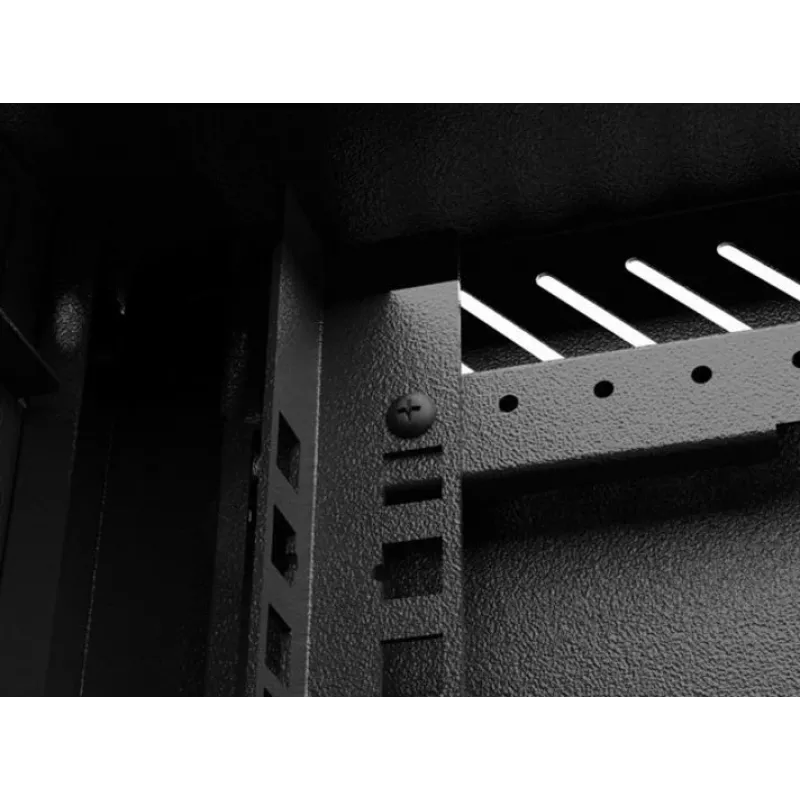

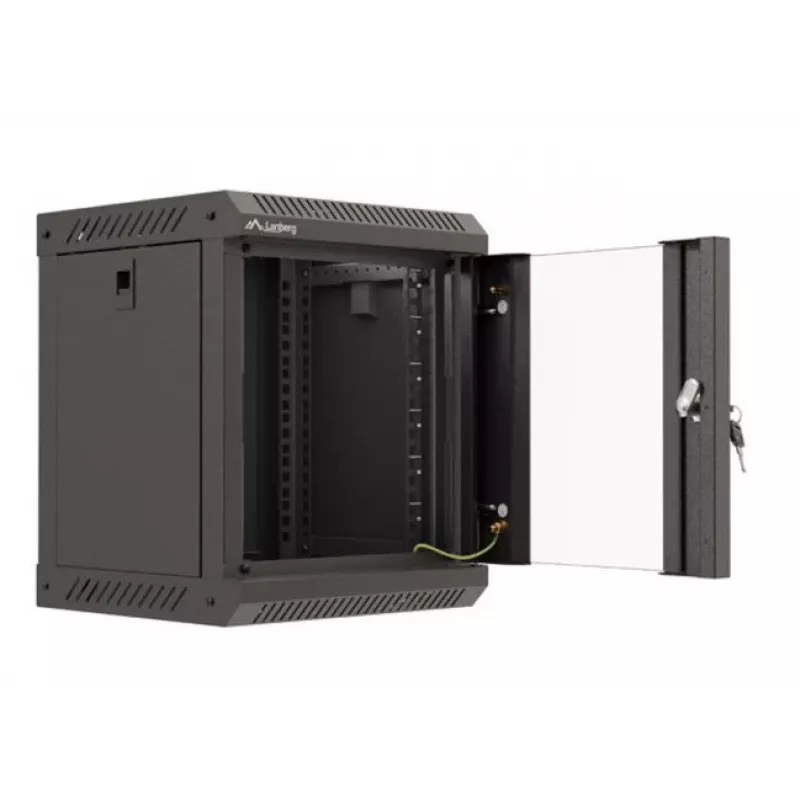

The WF11 series provides improved ventilation with top and bottom ventilation holes and a dedicated fan mounting position that does not consume usable equipment space. Four vertical mounting rails, including two additional rear rails, increase stability for various devices. The cabinet ships flat pack for easier transport and features M10 holes in the bottom for mounting casters or feet. A tempered glass front door allows visual inspection while preserving security via the key lock.

Suitable for

• Small office network installations
• Home IT and media equipment
• CCTV and alarm system components
• Telecommunications and patch panel mounting

Key specifications

• Model: Lanberg WF11-3306-10B
• Rack size: 6U (10")
• External dimensions (H×W×D): 370 × 300 × 300 mm
• Weight capacity: 30 kg
• Net weight: 8.2 kg
• Material: rolled steel
• Colour: Black
• IP rating: IP20
• Front door: glass with key lock

How to use

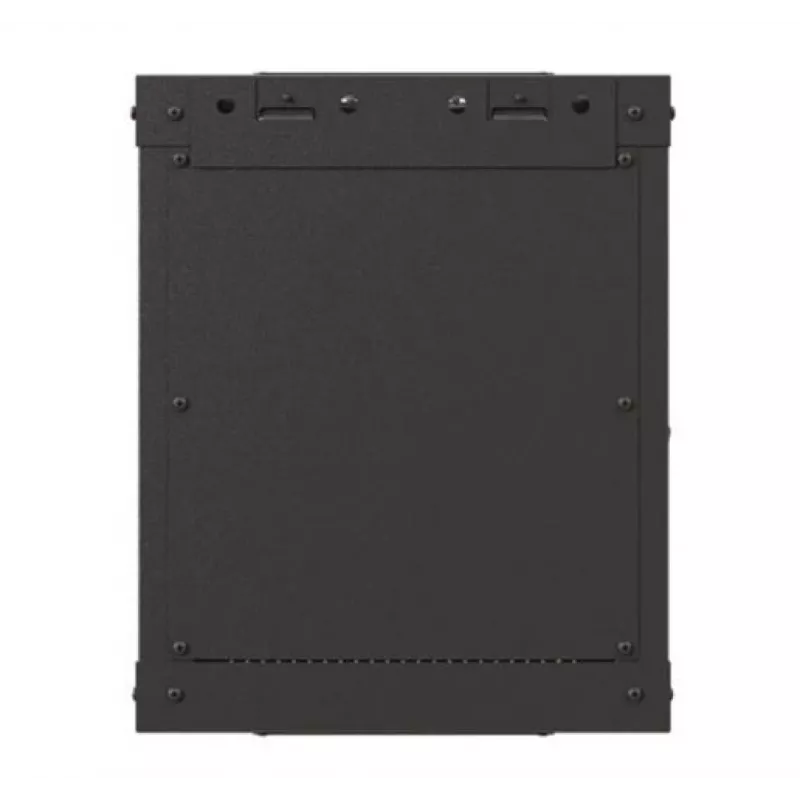

Mount the cabinet to a suitably load-bearing wall using the included rear mounting strip and appropriate fasteners for your wall type. Install equipment on the vertical rails, adjusting the front door handedness if required and using the removable rear wall for easier access during installation. Route cables through the top or bottom openings and fit additional accessories such as brush panels, cable organizers or a PDU as needed. For ventilation, fit a fan in the designated position to maintain optimal internal temperature without reducing rack space.

Recommendations

Install the cabinet on a wall structure rated to support the combined weight of the cabinet plus mounted equipment (including accessories). Distribute weight evenly across mounting rails, and ensure adequate airflow by keeping ventilation openings clear and, if installed in an enclosed room, consider active cooling when total heat dissipation approaches the cabinet’s capacity.
