Rack independente Lanberg FF01-6827-12B

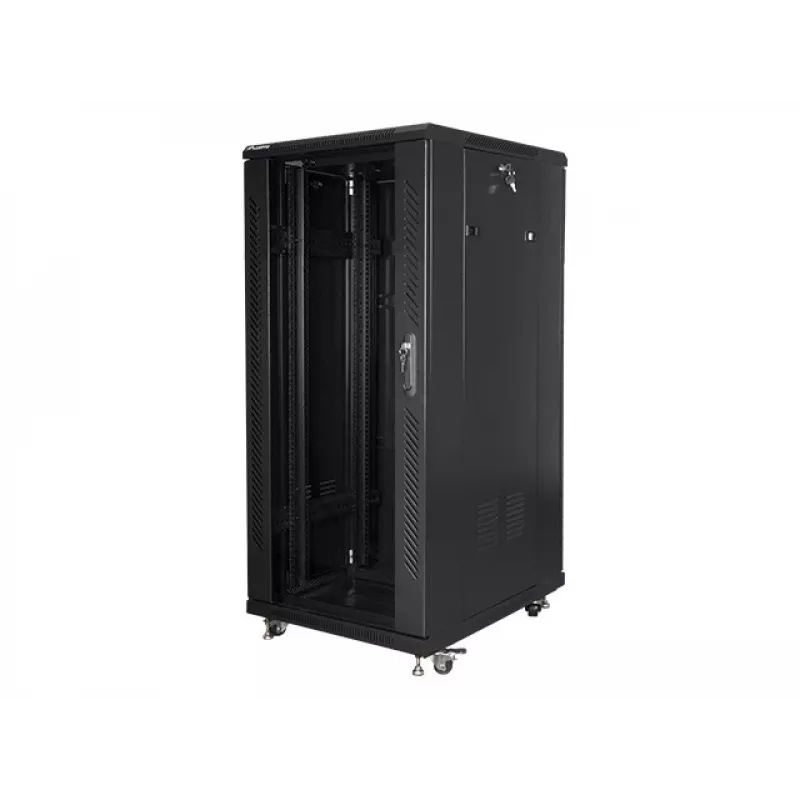

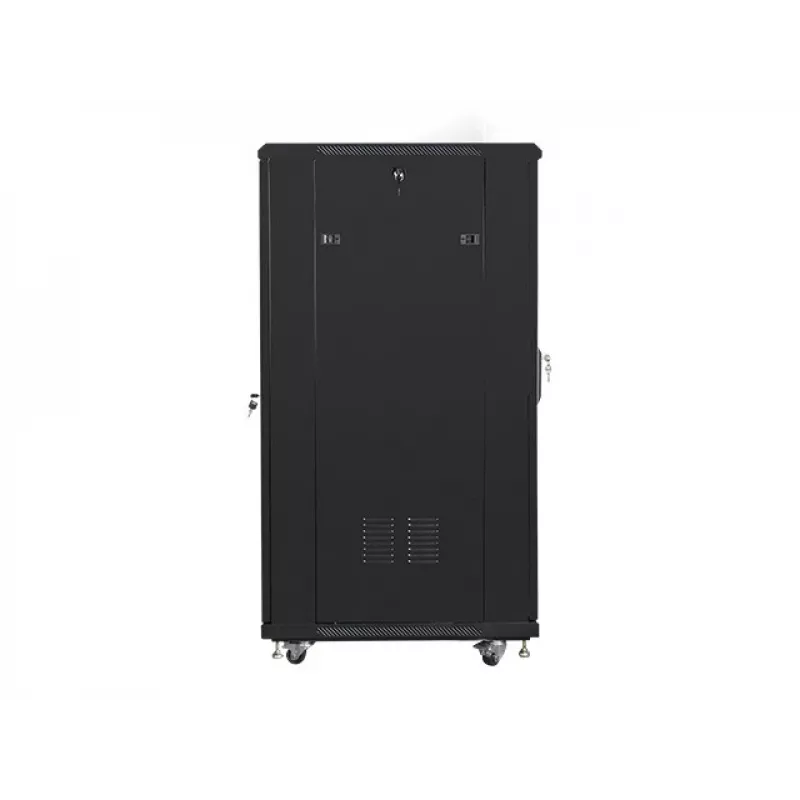

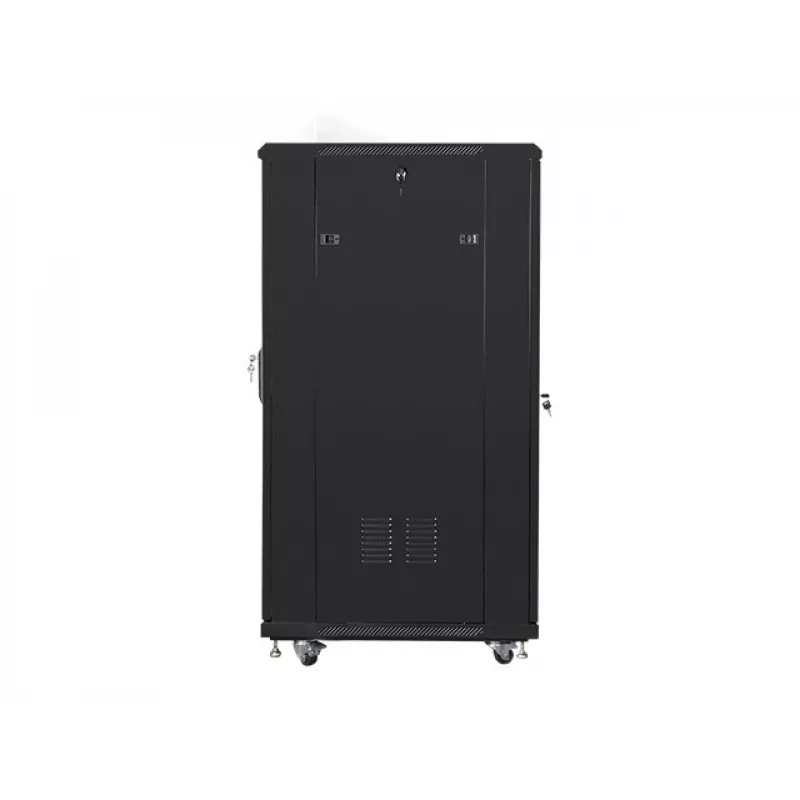

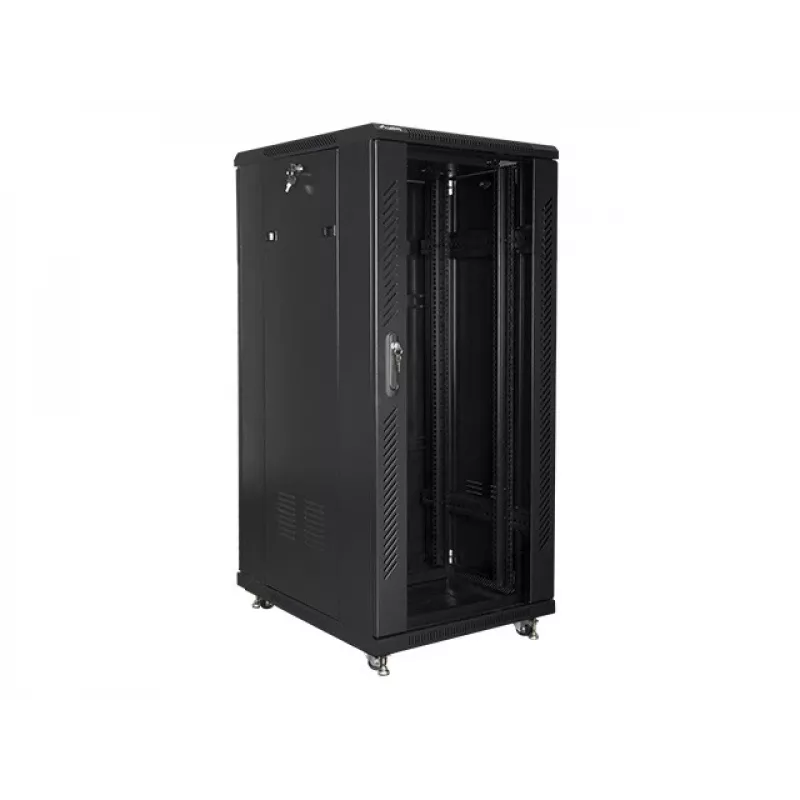

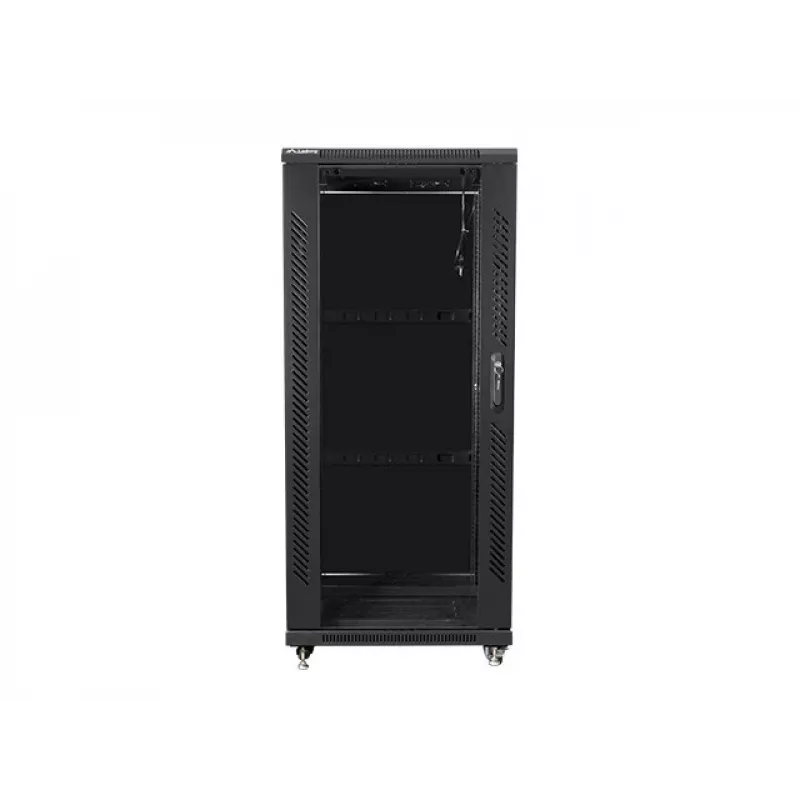

The Lanberg FF01-6827-12B freestanding rack is a 19" cabinet with 27U of usable space and a maximum load capacity of 800 kg. Constructed from cold-rolled steel with a black finish, it is intended for installation of network and server equipment, low-voltage systems and surveillance hardware. The cabinet includes adjustable vertical mounting rails, removable side panels and cable entry panels on top and bottom. A tempered glass front door and a solid rear door are fitted with locks, and the unit ships with fan tray (4 fans), M6 cage nuts and blank entry panels. The cabinet is supplied as three flat packs for self-assembly.

Advantages

The rack offers a high static load capacity (800 kg) and 27U rack space in a compact 600 x 800 mm footprint, providing reliable support for network, server and CCTV equipment. Adjustable mounting rails allow precise positioning of 19" devices, while removable side panels and front glass door with lock ensure easy access and physical security. Included accessories — fan tray with four 230 V fans, M6 cage nuts and blank panels — reduce the need for immediate extra purchases. The three-pack flat-pack design simplifies transport and handling.

Suitable for

• Network cabinets and switches in offices and server rooms
• Small and medium business IT infrastructure
• Data centers with moderate rack density requirements
• CCTV, IP surveillance and access control systems
• Low-voltage systems: cable TV, alarm and fire protection

Key specifications

• Form factor: 19" rack cabinet
• Rack capacity: 27U
• Maximum load: 800 kg
• External width: 600 mm
• External depth: 800 mm
• Weight: 72.3 kg
• Colour: Black
• Construction: Cold-rolled steel
• Doors: Tempered glass front door (reversible), solid rear door — both with locks
• Side panels: Removable with locks
• Accessories included: Fan tray with 4 × 230 V fans, M6 cage nuts, blank entry panels

How to use

Assemble the cabinet from the three supplied flat packs following the included instructions and fix the vertical mounting rails at the desired depth. Install 19" equipment using M6 cage nuts and screws, route cabling through the top or bottom blank entry panels and secure side panels and doors. Connect the fan tray to a suitable 230 V supply. Position the cabinet on a level surface and distribute equipment weight evenly to avoid overloading any single rail.

Recommendations

Place heavy equipment in lower U positions to maintain stability, ensure adequate ventilation clearance around the cabinet, and verify that the power and grounding meet local regulations. Regularly inspect locks, fans and mounting hardware and use the included blank panels to close unused cable entries.
