Rackmount.IT RM-FR-T15 acessório de rack suporte de montagem

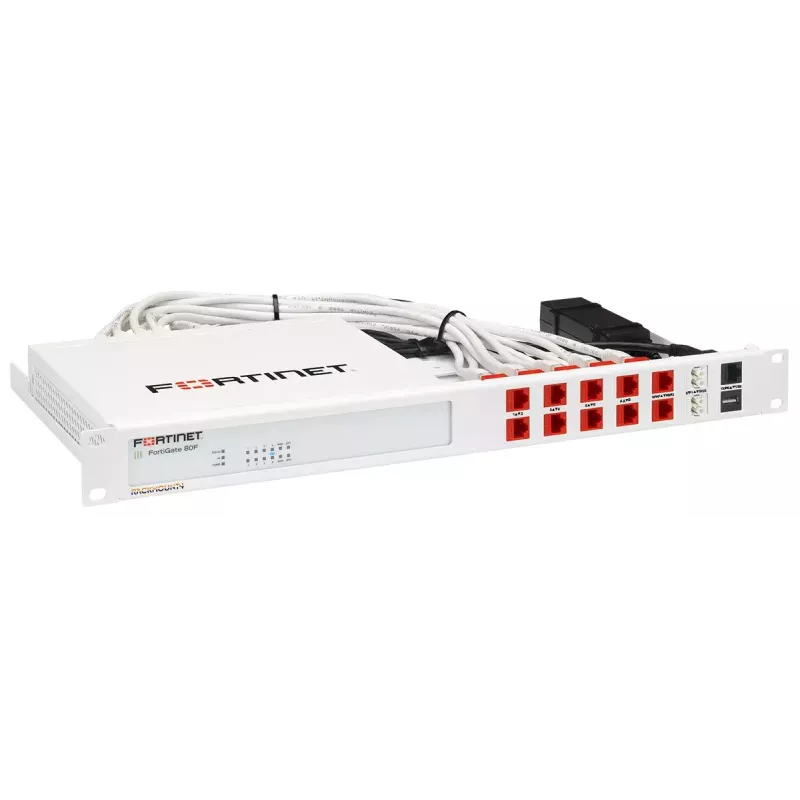

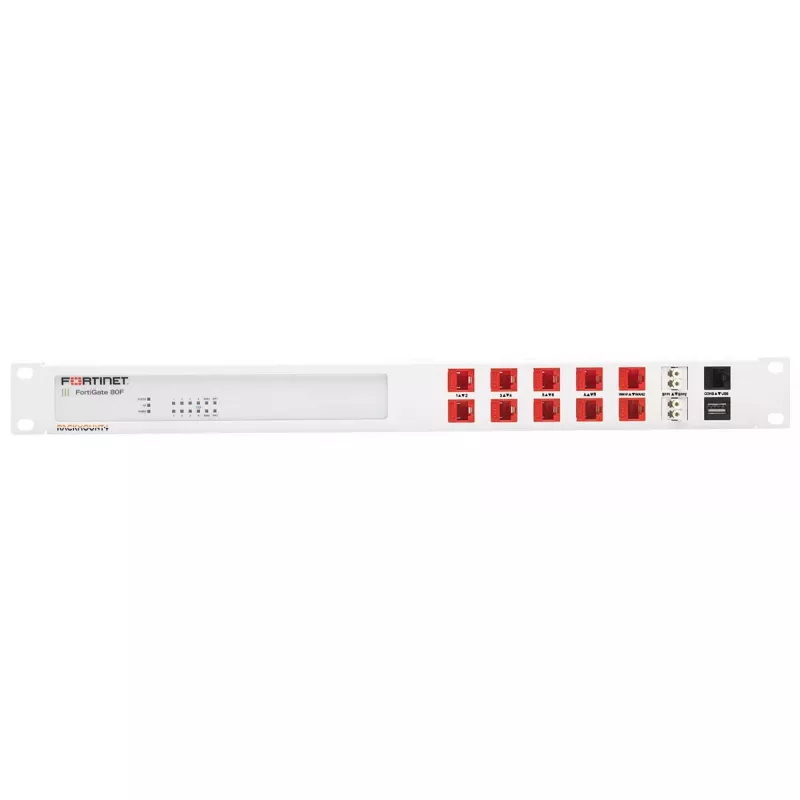

The Rackmount.IT RM-FR-T15 mounting bracket allows you to install compatible Fortinet desktop appliances in a standard 19" rack. Tailored for the listed models, the bracket ensures a correct fit while bringing network and console connections to the rack front for convenient access. The power supply is secured to the bracket to avoid accidental disconnection. The unit is 1U high, 482 mm wide and 217 mm deep, finished in white and supplied with LAN (RJ-45) and USB cables.

Advantages

The RM-FR-T15 provides a compact 1U rack solution that keeps device connections accessible from the front and secures the power supply to prevent accidental loss of power. Its design is model-specific to ensure a stable and precise fit, and the included LAN and USB cables reduce the need for additional accessories.

Suitable for

• Mounting compatible Fortinet desktop appliances in a 19" rack
• Consolidating small network devices into standard rack units
• Environments where front access to RJ-45 and console ports is required

Key specifications

• Model: RM-FR-T15
• Height: 1U (44 mm)
• Width: 482 mm
• Depth: 217 mm
• Colour: White
• Included cables: LAN (RJ-45) and USB
• Compatible with specified Fortinet desktop appliance models

How to use

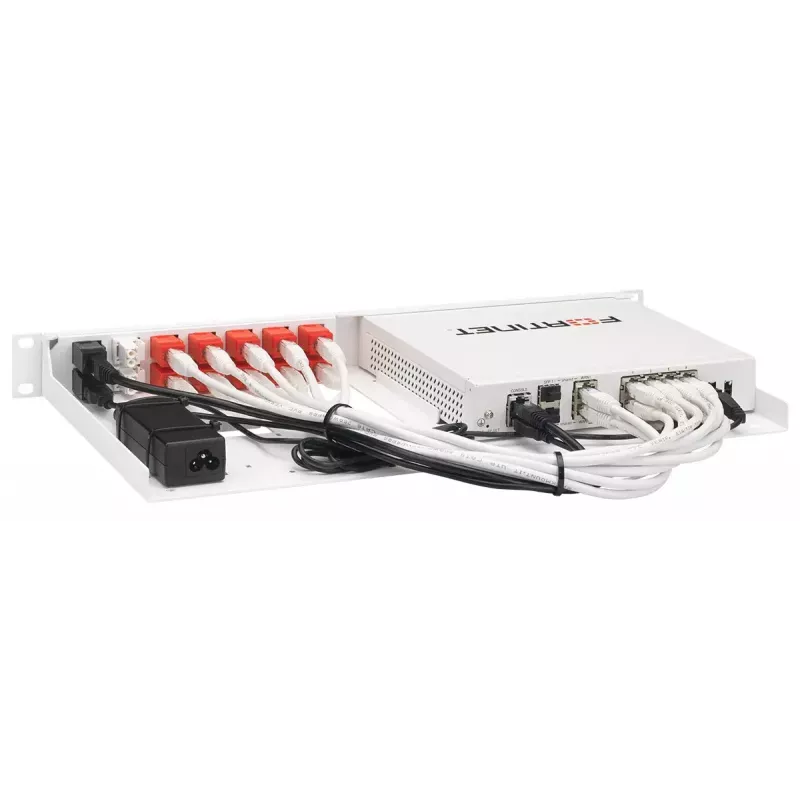

Assembly takes about five minutes. Slide the Fortinet device into the bracket, position the retainers, connect the supplied LAN and USB cables and any keystones, then fix the power supply to the bracket to secure it. Once installed, the device's network and console ports will be accessible from the front of the rack.

Recommendations

Check the list of supported Fortinet models before installation to confirm compatibility. Tighten mounting hardware securely and route cables to avoid strain on connectors. If used in a shared rack, allow adequate ventilation around the unit.
