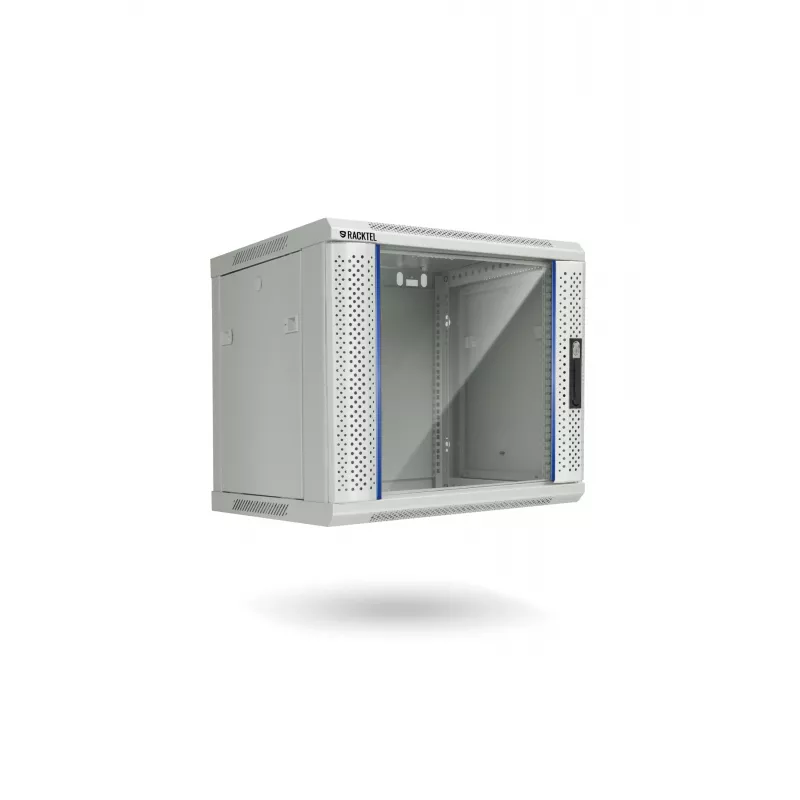

RACKTEL RL-6609WR-G Armário de rede de parede 9U 600x600mm, cinzento (RAL 7035)

The RACKTEL RL-6609WR-G is a high-quality 9U wall-mount network cabinet designed for secure and organized installation of 19-inch network equipment. With external dimensions of 600x600mm and a robust SPCC cold-rolled steel construction, this cabinet offers reliable protection and efficient cable management for your IT infrastructure. The flat-pack design allows for easy self-assembly, making it a cost-effective solution for small to medium-sized network setups.

Advantages

This cabinet combines durability with flexibility. The tempered glass front door with lock provides visibility and security, while the removable side panels allow easy access for maintenance. The 180-degree door opening angle facilitates convenient equipment installation. With a maximum static load capacity of 60 kg, it can accommodate a variety of network devices such as switches, patch panels, and servers.

Suitable for

• Wall-mounting in server rooms, offices, or data closets
• Housing 19-inch rack equipment up to 9U
• Applications requiring secure and ventilated enclosure

Key specifications

• Rack Units: 9U
• Mounting Type: Wall-mounted
• Assembly: Flat-pack (self-assembly required)
• External Width: 600 mm
• External Depth: 600 mm
• External Height: 501 mm
• Internal Usable Depth: ~520 mm
• Material: SPCC Cold Rolled Steel
• Construction Thickness: Mounting profiles 2.0mm, Frame 1.2mm, Other parts 1.0mm
• Front Door: Tempered Glass with Lock
• Side Panels: Removable, Solid
• Max Static Load Capacity: 60 kg
• Colour: Grey (RAL 7035)
• Cable Entry Points: Top and Bottom
• Ventilation: Passive, with fan mounting provision on top
• Protection Class: IP20
• Standards Compliance: ANSI/EIA RS-310-D, IEC297-2, DIN41494 PART1, DIN41494 PART7
• Door Opening Angle: 180 degrees

Recommendations

For optimal performance, ensure proper ventilation and do not exceed the maximum load capacity. Use appropriate mounting hardware for wall installation. This cabinet is ideal for organizing network equipment in environments where space is limited.
