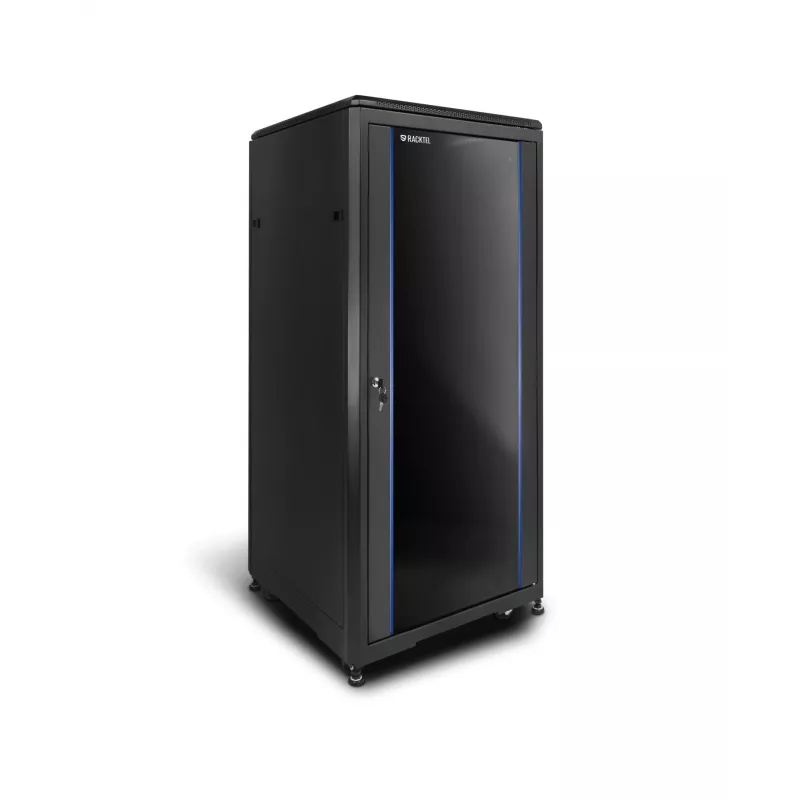

RACKTEL RL-6642SR Armário de servidor 42U 600x600, preto

The RACKTEL RL-6642SR is a professional 42U floor-standing server rack cabinet designed for secure and organized installation of 19-inch network and server equipment. With external dimensions of 600x600 mm (WxD) and a height of 2055 mm, this flat-pack cabinet offers a robust solution for data centers, server rooms, and IT installations. Constructed from cold-rolled steel with a black RAL 9005 finish, it provides a static load capacity of 800 kg, ensuring reliable support for heavy equipment.

Advantages

This rack cabinet combines durability, security, and ease of assembly. The lockable front tempered glass door with perforated steel frame allows equipment visibility while ensuring ventilation. The solid steel rear door and removable side panels are also lockable, providing comprehensive security. Adjustable mounting rails with U-markings simplify equipment installation, while top and bottom cable entry points with brush strips maintain a tidy cable management system. The included leveling feet and castors offer flexibility in positioning.

Suitable for

• Data centers and server rooms requiring high-density equipment mounting
• Network infrastructure installations for switches, patch panels, and UPS systems
• IT professionals seeking a secure, ventilated enclosure for 19-inch rack-mount devices

Key specifications

• Rack Standard: 19-inch
• Rack Units: 42U
• External Dimensions (WxDxH): 600 x 600 x 2055 mm
• Construction: Floor-standing, flat-pack (self-assembly)
• Static Load Capacity: 800 kg
• Front Door: Tempered glass with perforated steel frame, lockable
• Rear Door: Solid steel, lockable
• Side Panels: Removable, lockable
• Material: Cold-rolled steel
• Color: Black (RAL 9005)
• Cable Entry: Top and bottom with brush strips
• Mounting Rails: Adjustable depth with U-markings
• Ventilation: Passive with fan cutouts on top panel
• Protection Rating: IP20
• Included Accessories: 4x leveling feet, 4x castors, 2x keys for doors, 20x cage nuts and screws

Recommendations

For optimal airflow and cable management, ensure proper spacing between equipment and use the included brush strips for cable entry. The cabinet is designed for indoor use only and should be placed on a level surface. Assembly requires two persons; follow the included manual for safe installation.
