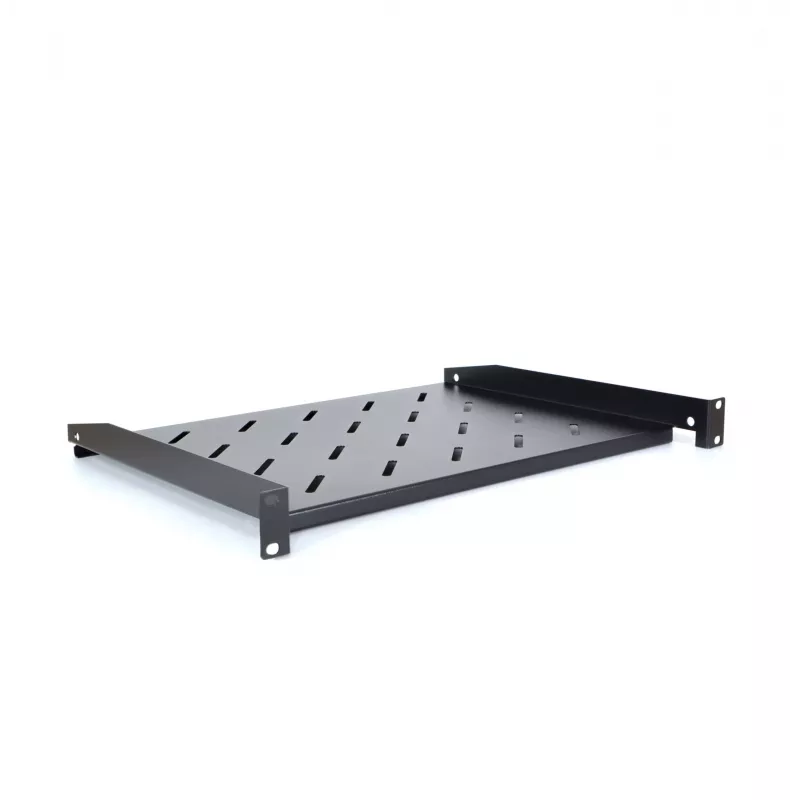

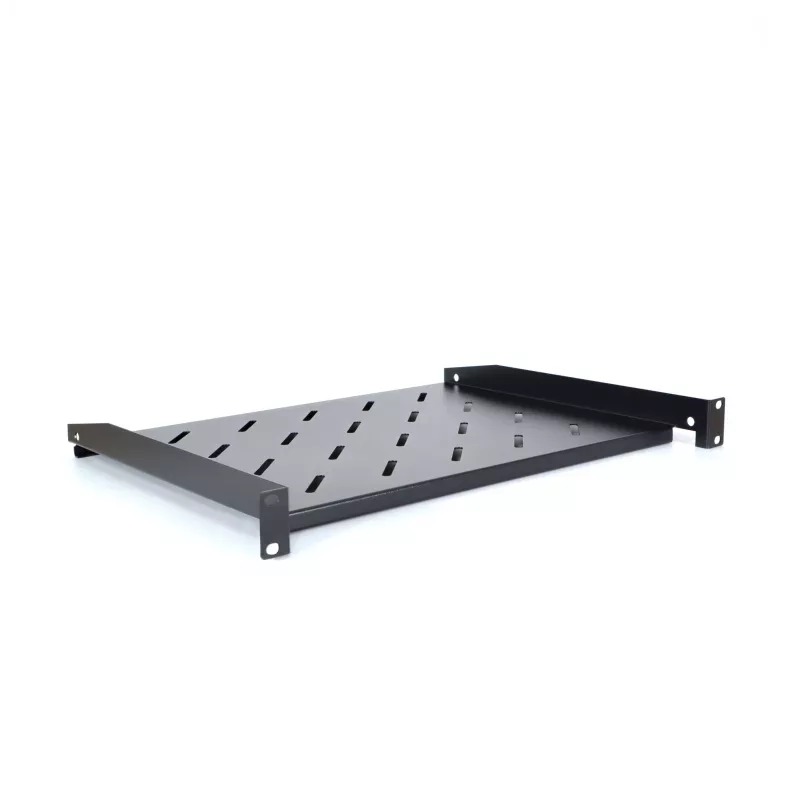

RACKTEL RL-PD600S Prateleira de encaixe 1U 19 polegadas de montagem frontal, profundidade 600 mm, capacidade de carga 20 kg, preto (RAL 9005)

The RACKTEL RL-PD600S is a robust 1U 19-inch front-mounted rack shelf designed to support non-rackmount equipment securely within standard server racks. Crafted from cold-rolled steel with a durable powder-coated finish in black (RAL 9005), this shelf offers a load capacity of 20 kg and a usable depth of 600 mm, making it ideal for housing devices such as network switches, patch panels, or audio/video equipment. Its cantilever design allows for easy direct front mounting without the need for additional rails, simplifying installation and maximizing rack space.

Advantages

• Easy front mounting: Cantilever design enables quick installation directly onto rack uprights.
• High load capacity: Supports up to 20 kg, suitable for heavy equipment.
• Durable construction: Cold-rolled steel with powder coating ensures long-lasting performance.
• Space-efficient: 1U height saves valuable rack space for other components.
• Versatile use: Ideal for supporting non-rackmount devices in data centers, server rooms, and network cabinets.

Suitable for

• Supporting network switches, routers, and patch panels
• Holding audio/video equipment in broadcast or AV racks
• Mounting test equipment or small servers in 19-inch racks
• Organizing cables and accessories in server cabinets

Key specifications

• Product Type: Rack Shelf
• Mounting Type: Front-mounted (Cantilever)
• Rack Unit Height: 1U
• Rack Compatibility: 19-inch Server Racks
• Shelf Depth: 600 mm
• Material: Cold-rolled Steel
• Color: Black (RAL 9005)
• Load Capacity: 20 kg
• Ventilation: Solid (Non-vented)
• Finish: Powder Coated
• Usable Width: Approx. 450 mm
• Usable Depth: 600 mm
• Standard Compliance: EIA-310-D

Recommendations

For optimal performance, ensure the rack shelf is mounted securely to the rack uprights using the provided hardware. Distribute the load evenly across the shelf to avoid exceeding the maximum capacity. This shelf is compatible with all standard 19-inch racks conforming to EIA-310-D.
