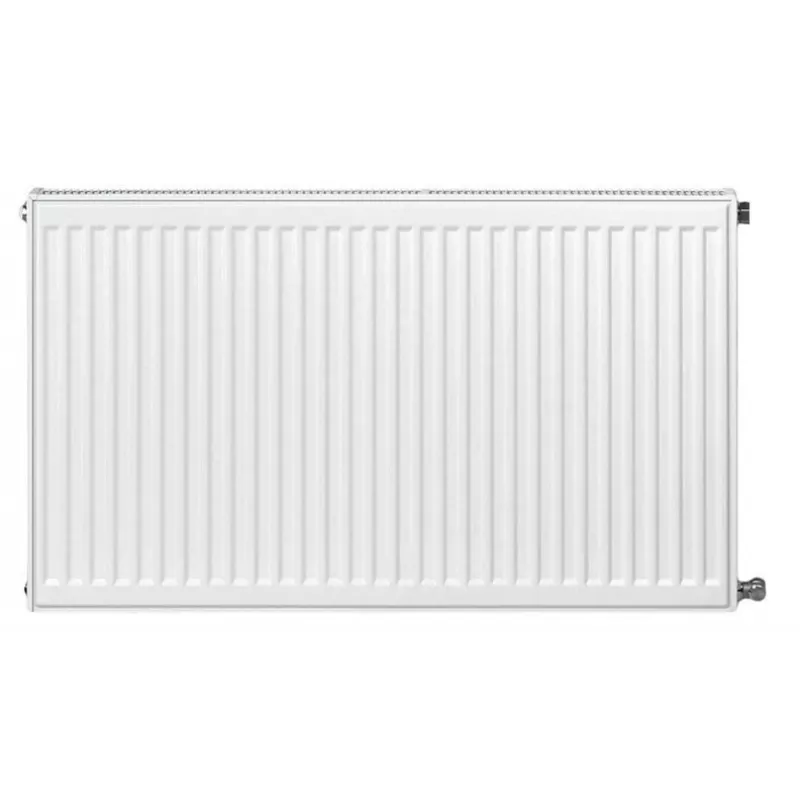

Radiador Classic-R Type 20 550x800 mm branco

The Radiator Classic-R Type 20 is a high-quality panel radiator designed for efficient and reliable heating in central heating systems. With a double panel construction (no convector fins), it provides a classic look and effective heat output. Manufactured from cold-rolled steel sheet with a durable multi-layer coating, this radiator ensures long-lasting performance and corrosion protection.

Advantages

This radiator offers a heat output of 1050 W (75/65/20°C), making it suitable for medium-sized rooms. Its wall-mounted design with included brackets simplifies installation. The side connections (4 x G1/2" internal thread) allow flexible piping. The white RAL 9016 finish blends with most interiors.

Suitable for

• Central heating systems in residential and commercial buildings
• Replacement or new installations
• Rooms requiring a classic radiator design

Key specifications

• Type: Panel Radiator Type 20 (Double Panel, No Convector Fins)
• Dimensions: Height 550 mm, Width 800 mm, Depth 66 mm
• Heat Output: 1050 W (75/65/20°C)
• Max. Operating Pressure: 10 bar
• Max. Operating Temperature: 110 °C
• Connection: Side Connection, 4 x G1/2" internal thread
• Colour: White (RAL 9016)
• Water Volume: 3.5 L
• Standard: EN 442
• Warranty: 10 years

Recommendations

Ensure compatibility with your heating system's pressure and temperature. Professional installation is recommended. The radiator is supplied with wall brackets, air vent, and blanking plug.
