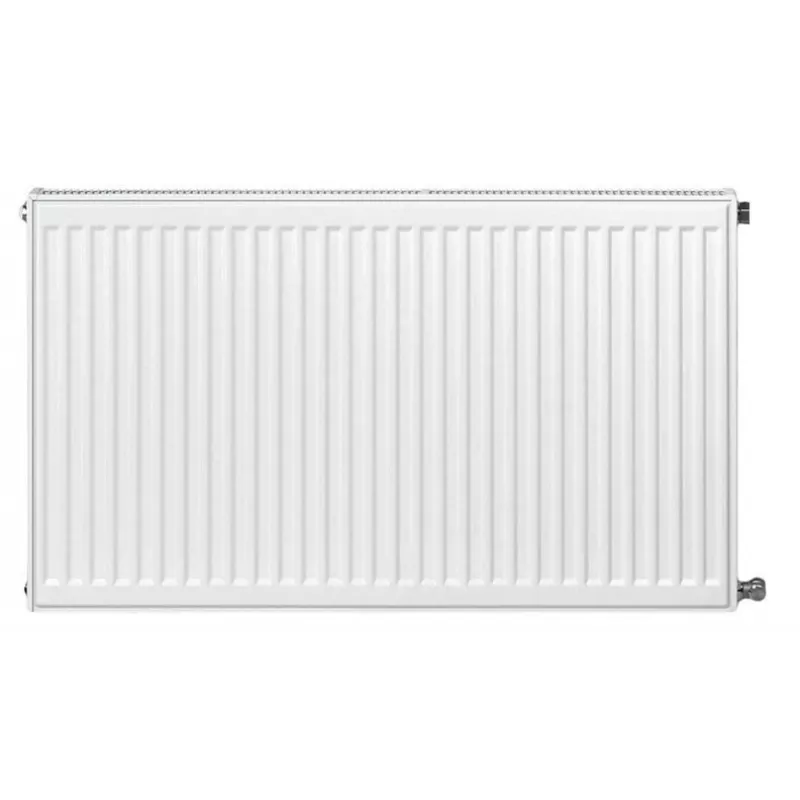

Radiador Classic Type 22 500x1000 mm branco

The Radiator Classic Type 22 500x1000 mm is a high-quality panel radiator designed for efficient central heating. With a double panel and double convector configuration, it delivers a heat output of 2180 W (ΔT 50K), making it suitable for medium to large rooms. Its compact dimensions (500 mm height, 1000 mm width, 100 mm depth) allow for flexible installation in various spaces.

Advantages

This radiator offers excellent heat distribution and quick warm-up times thanks to its double convector design. The cold-rolled steel construction ensures durability and long-lasting performance. The white powder-coated finish (RAL 9016) provides a clean, modern look that blends seamlessly with any interior. With a 10-year warranty, you can rely on its quality and reliability.

Suitable for

• Central heating systems in residential and commercial buildings
• Rooms requiring efficient and consistent heating
• Wall-mounted installation with included brackets

Key specifications

• Type: Panel Radiator Type 22 (Double Panel, Double Convector)
• Material: Cold-rolled Steel
• Height: 500 mm
• Width: 1000 mm
• Depth: 100 mm
• Heat Output (ΔT 50K): 2180 W (75/65/20 °C)
• Connections: 4 x G 1/2" Internal Thread (Side Connection)
• Max Operating Pressure: 10 bar
• Max Operating Temperature: 110 °C
• Water Volume: 5.8 Liters
• Surface Finish: White (RAL 9016) Powder Coated
• Mounting: Wall Mounted (Brackets Included)
• Standard: EN 442
• Connection Pitch: 444 mm
• Corrosion Protection: Cataphoretic Dip-Coating

Recommendations

For optimal performance, ensure proper sizing based on room heat loss calculations. Professional installation is recommended to comply with local regulations and guarantee safety.
