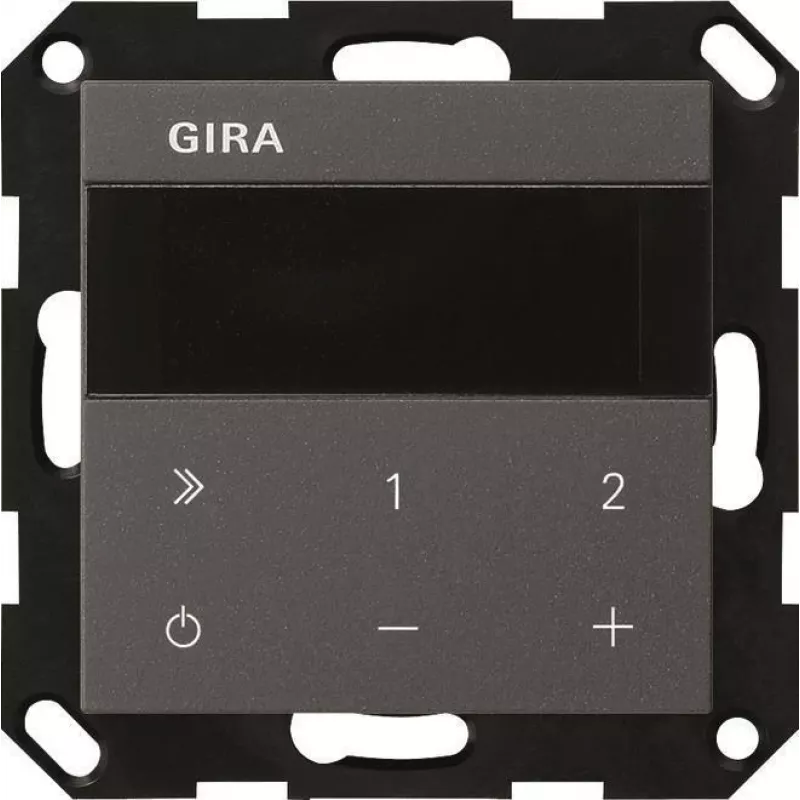

Rádio de encastrar GIRA 232028 IP System 55 antracite

Integrating multi-room audio into a flush-mounted wall installation can be a challenge, especially when you want DAB+, FM, and network streaming without cluttering the wall with multiple devices. The GIRA 232028 UP-Radio IP System 55 solves this by combining a radio tuner, Bluetooth receiver, and IP connectivity in a single anthracite insert for the Gira System 55 range.

Who is it for

This flush-mounted radio is intended for users who want a discreet, built-in audio source in residential or commercial spaces. It suits installations where a clean wall appearance is required, and it can be controlled via touch, the Gira Smart Home App, Gira HomeServer, Gira X1, or KNX.

Main features

• DAB+ and FM radio tuner with 8 station presets for each band
• IP (Ethernet) connectivity for network audio and integration
• Bluetooth A2DP for wireless audio streaming from mobile devices
• Integrated graphic display for station and track information
• Built-in speaker for direct audio output
• Stereo external speaker output with 2 x 2.5 W RMS at 8 Ohm
• Auxiliary input (AUX-In) for connecting external audio sources
• Sleep timer and alarm function
• Bass and treble control
• Multiroom capable for synchronized playback across rooms

Specifications

• Product type: Flush-mounted Radio
• Radio tuner: DAB+, FM
• System compatibility: Gira System 55
• Colour: Anthracite
• Connectivity: IP (Ethernet), Bluetooth A2DP
• Display type: Integrated graphic display
• Control options: Touch, Gira Smart Home App, Gira HomeServer, Gira X1, KNX
• Integrated speaker: Yes
• External speaker output: Yes (stereo)
• Audio output power (external): 2 x 2.5 W RMS (at 8 Ohm)
• Auxiliary input (AUX-In): Yes
• Station presets: 8 (DAB+), 8 (FM)
• Special features: Sleep timer, alarm function, bass/treble control, multiroom capable
• Power supply: 230 V AC, 50/60 Hz
• Installation type: Flush-mounted (Unterputz)
• Frequency range DAB+: 174.928 - 239.200 MHz (Band III)
• Frequency range FM: 87.5 - 108 MHz
• Bluetooth profile: A2DP
• Network protocol: TCP/IP
• Protection class: IP20

Tips

For multiroom audio, connect the UP-Radio IP to your home network and use the Gira Smart Home App to group it with other compatible devices. The external speaker output allows connection to higher-quality speakers if the built-in speaker is not sufficient for larger rooms.
