RAM Mounts Suporte de esfera dupla com placa VESA 100x100mm, capacidade 1,8 kg

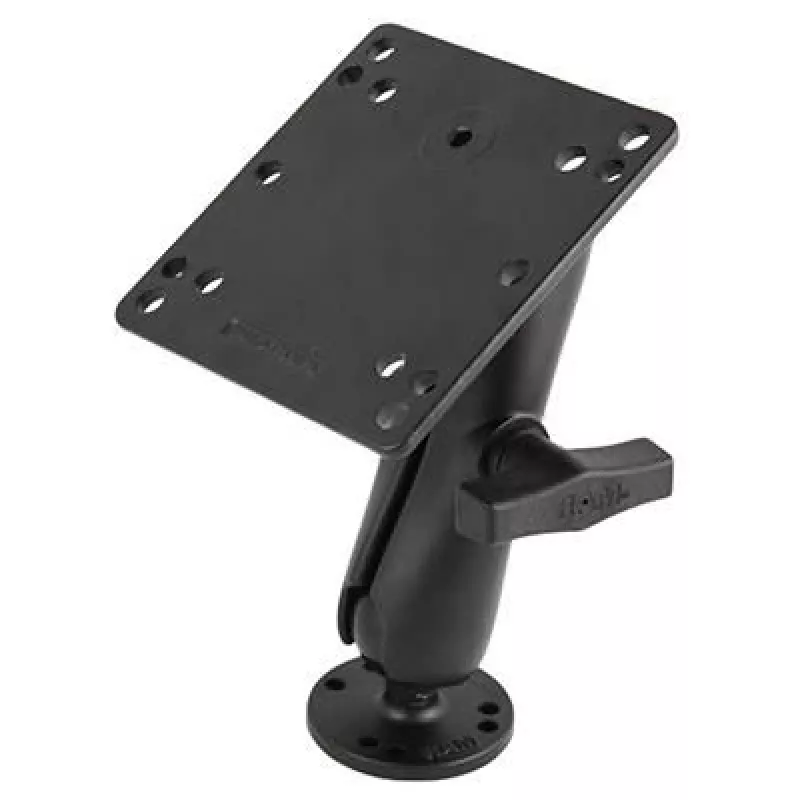

The RAM-101U-246 is a double ball mount featuring a 2.5" diameter round base with the universal AMPS hole pattern, a STANDARD-length double socket arm, and a 4.75" square VESA plate. The VESA plate includes both 75 x 75 mm and 100 x 100 mm hole patterns. The mount incorporates RAM's patented 1.5" diameter rubber ball-and-socket system with adjustment points at both ends of the arm, providing wide-range positioning for devices up to the specified capacity.

Advantages

The aluminum construction offers a balance of strength and light weight while the rubber ball-and-socket design provides nearly infinite adjustability and secure friction-based locking. Dual socket arm geometry increases reach and flexibility compared with single-arm mounts. The included VESA plate supports common monitor and tablet mounting standards (75x75 mm and 100x100 mm).

Suitable for

• Mounting small displays, tablets or compact monitors with VESA 75x75 mm or 100x100 mm patterns
• Use in vehicles, boats, workstations or industrial environments requiring adjustable positioning
• Applications where light-weight, corrosion-resistant aluminum mounting is preferred

Key specifications

• Model: RAM-101U-246
• Brand: RAM Mounts
• VESA compatibility: 75 x 75 mm and 100 x 100 mm
• Base diameter: 2.5" (round base with AMPS hole pattern)
• VESA plate size: 4.75" square
• Ball diameter: 1.5" (3.81 cm)
• Material: aluminum with rubber ball socket
• Finish/color: black
• Maximum capacity: 1.8 kg
• MPN: RAM-101U-246
• EAN: 793442010156

How to use

Attach the round base to a compatible AMPS-pattern surface using appropriate hardware. Fasten the VESA plate to the device using the matching 75x75 mm or 100x100 mm holes and screws. Connect the double socket arm between the base and the VESA plate. Adjust orientation and viewing angle by loosening the ball-and-socket joints, repositioning the arm and plate, then tighten the joints to secure the setup. Verify that the mounted device weight does not exceed 1.8 kg.

Recommendations

For secure installation, use stainless steel or manufacturer-recommended fasteners for the base and VESA plate; periodically check and retighten the ball-and-socket joints under heavy or continuous use. Do not exceed the specified 1.8 kg load capacity.
